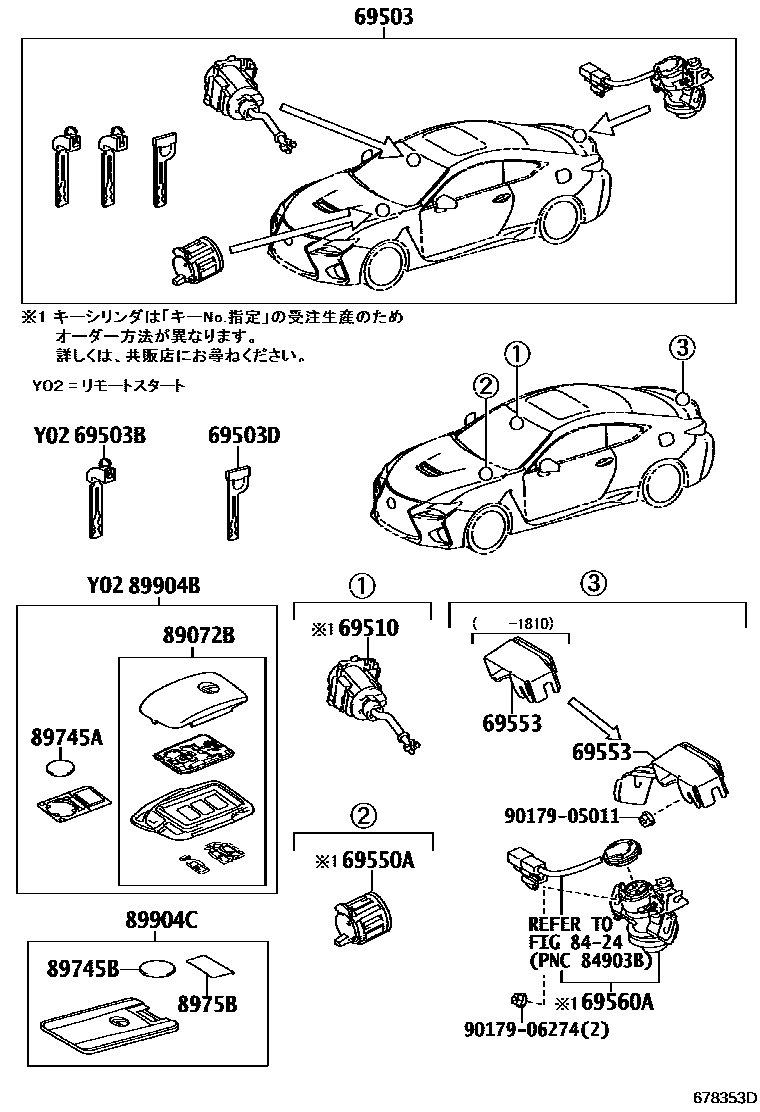

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-24450iUSC10201409-201412

main69005-24451iUSC10201501-201711

main69005-24550iUSC10201711-201902

69503BKEY, CUT

main69515-30370×2iUSC10201409-201902

69503DKEY, CUT(CARD KEY)

main69515-30330iUSC10201409-201902

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-24070iUSC10201409-201501

main69510-24071iUSC10201501-201902

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iUSC10201409-201902

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iUSC10201409-201805

main69553-30021iUSC10201805-201902

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30360iUSC10201409-201711

main69560-30370iUSC10201903

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-24180×2iUSC10201409-201609

main89072-30750×2iUSC10201903

89745ABATTERY, TRANSMITTER

main89745-45010iUSC10201409-201902

main89745-50020iUSC10201903

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iUSC10201409-201902

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-24010iUSC10202009

main8975B-53010iUSC10201903-202009

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-24080×2iUSC10202009

main89904-24090×2iUSC10201409-201609

main89904-24230×2iUSC10201609-201902

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-24010iUSC10201409-201902

main89904-24430iUSC10202009

9017905011

main90179-05011

9017906274

main90179-06274

16 parts on this diagram · 1 diagram in section
