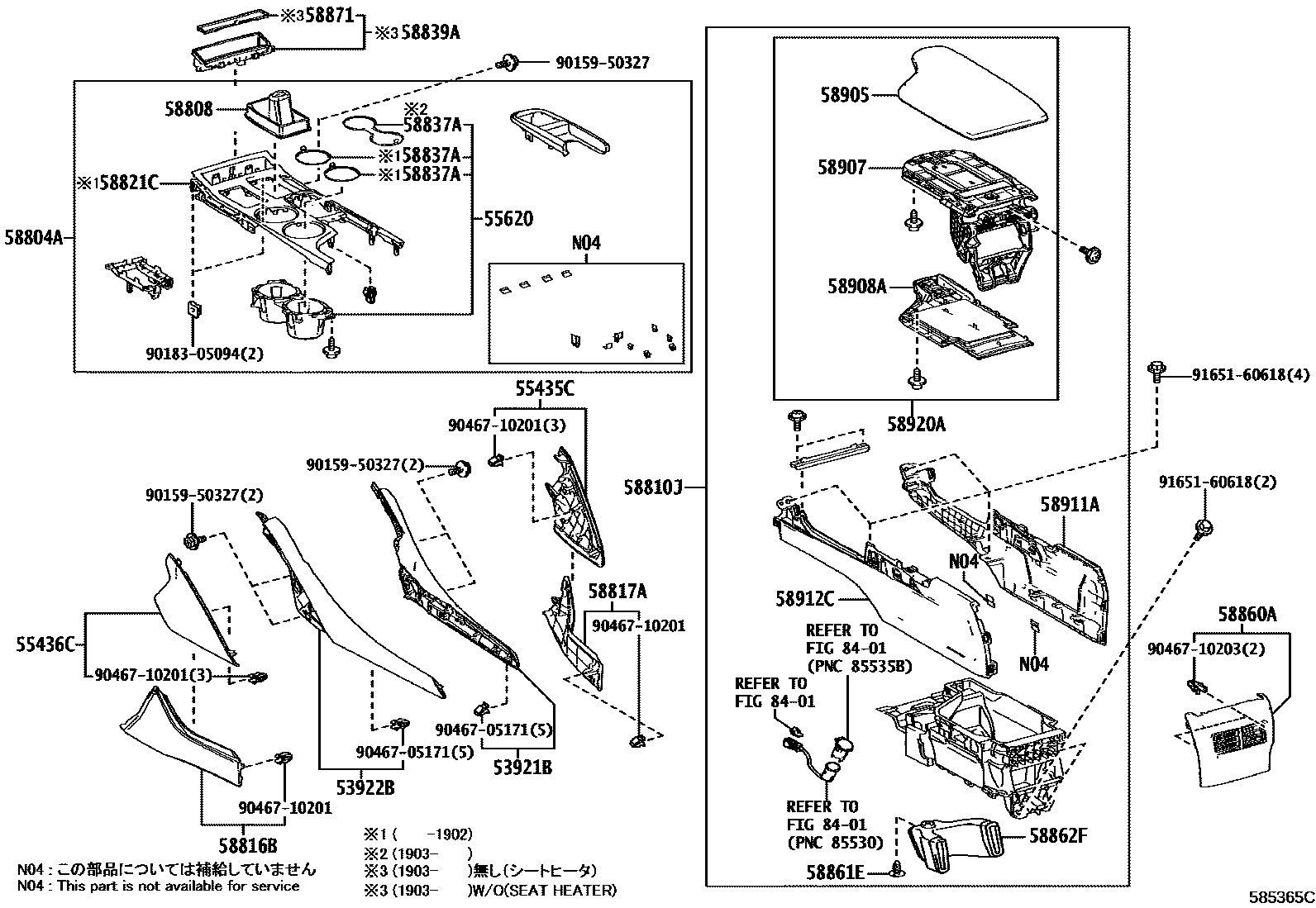

CONSOLE BOX & BRACKET

0001 1�������������� 0002 1������������

53921BGARNISH, FRONT PANEL, RH

main55011-24120-20iUSC10201805-201902

BLACK/BLUE,TRIM8#

main55011-24120-C3iUSC10201409-201902

BLACK/RED,TRIM3#

main55011-24120-C4iUSC10201409-201902

BLACK/ORANGE,TRIM4#

main55011-24120-C5iUSC10201409-201902

BLACK/BLACK,TRIM2#

main55011-24120-C8iUSC10201409-201902

BLACK/WHITE,TRIM0#

main55011-24130-21iUSC10202501

BLACK/RED/RED,TRIM3#

main55011-24130-22iUSC10202111-202501

BLACK/BLUE/BLACK,TRIM8#

main55011-24130-C5iUSC10201903-202501

BLACK/BLACK/ECRU,TRIM2#

main55011-24130-C6iUSC10201903-202111

BLACK/RED/BLACK,TRIM30,31,32

main55011-24130-C9iUSC10201903-202501

BLACK/WHITE/BLACK,TRIM0#

53922BGARNISH, FRONT PANEL, LH

main55012-24090-20iUSC10201805-201902

BLACK/BLUE,TRIM8#

main55012-24090-C3iUSC10201409-201902

BLACK/RED,TRIM3#

main55012-24090-C4iUSC10201409-201902

BLACK/ORANGE,TRIM4#

main55012-24090-C5iUSC10201409-201902

BLACK/BLACK,TRIM2#

main55012-24090-C8iUSC10201409-201902

BLACK/WHITE,TRIM0#

main55012-24100-21iUSC10202501

BLACK/RED/RED,TRIM3#

main55012-24100-22iUSC10202111-202501

BLACK/BLUE/BLACK,TRIM8#

main55012-24100-C5iUSC10201903-202501

BLACK/BLACK/ECRU,TRIM2#

main55012-24100-C6iUSC10201903-202111

BLACK/RED/BLACK,TRIM30,31,32

main55012-24100-C9iUSC10201903-202501

BLACK/WHITE/BLACK,TRIM0#

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

main55435-24040-C4iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55436-24030-C4iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-24080iUSC10201409-201902

main55620-24100iUSC10201903-202009

main55620-24120iUSC10202009

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-24150-C7iUSC10201409-201711

BLACK/BLUE,TRIM0#,2#,3#

main58804-24150-C9iUSC10201409-201711

BLACK/ORANGE/BLUE,TRIM4#

main58804-24200-C0iUSC10201711-201902

BLACK/BLUE,TRIM0#,2#,3#,8#

main58804-24200-C1iUSC10201711-201902

BLACK/ORANGE,TRIM4#

main58804-24240-C1iUSC10201903-202009

BLACK/BLUE,TRIM0#,2#

main58804-24240-C2iUSC10201903-202009

BLACK/RED,TRIM3#

main58804-24280-C0iUSC10202009

BLACK/RED,TRIM3#

main58804-24280-C1iUSC10202009-202501

BLACK/BLUE,TRIM0#,2#,8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-24050-21iUSC10201903

BLACK/RED,TRIM3#

main58808-24050-C7iUSC10202009-202501

BLACK/BLUE,TRIM0#,2#,8#

main58808-24050-C9iUSC10201409-201902

BLACK/ORANGE/BLUE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-24210-21iUSC10202301-202501

BLACK/BLACK,TRIM0#,2#,3#,8#

main58810-24210-22iUSC10202501

BLACK/RED,TRIM3#

main58810-24210-C1iUSC10202111-202301

BLACK/BLACK,TRIM0#,2#,3#,8#

main58810-24210-C7iUSC10201903-202111

BLACK/RED,TRIM32

58816BINSERT, CONSOLE BOX

main58816-53010-C0iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-53010-C0iUSC10201903

BLACK,TRIM0#,2#,3#,8#

58821CPANEL, CONSOLE, UPPER

main58821-24050iUSC10201409-201711

main58821-24070iUSC10201711-201902

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-24010×2iUSC10201409-201902

main58837-24020iUSC10201903

58839ACOVER, CONSOLE BOX HOLE

main58839-24040iUSC10201903-202501

58860AREGISTER ASSY, CONSOLE BOX

main58860-53030-C0iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

58861ECLIP, CONSOLE BOX DUCT

main90467-05162-C0iUSC10201409-201902

BLACK

58862FDUCT, CONSOLE BOX, NO.2

main58862-24020iUSC10201903

58871CUSHION, CONSOLE BOX

main58871-24020iUSC10201903-202501

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-24240-C5iUSC10202111-202501

BLACK/BLACK,TRIM0#,2#,3#,8#

main58905-24240-C9iUSC10202501

BLACK/RED,TRIM3#

main58905-24240-D2iUSC10201903-202111

RED,TRIM32

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-24050iUSC10201409-201902

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-24030iUSC10201409-201902

58911APANEL, BOX SIDE, NO.1

main58911-24100-C0iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

58912CPANEL, BOX SIDE, NO.2

main58912-24110-C0iUSC10201903

BLACK,TRIM0#,2#,3#,8#

58920AARMREST ASSY, REAR CONSOLE

main58920-24150-C1iUSC10201409-201902

BLACK/BLACK,TRIM0#,2#,3#,4#,8#

main58920-24150-C8iUSC10202501

BLACK/RED,TRIM3#

main58920-24150-D2iUSC10201903-202111

RED,TRIM32

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950327

main90159-50327

9018305094

main90183-05094

9046705171

main90467-05171

9046710201

main90467-10201

9046710203

main90467-10203

9165160618

main91651-60618

30 parts on this diagram · 2 diagrams in section
