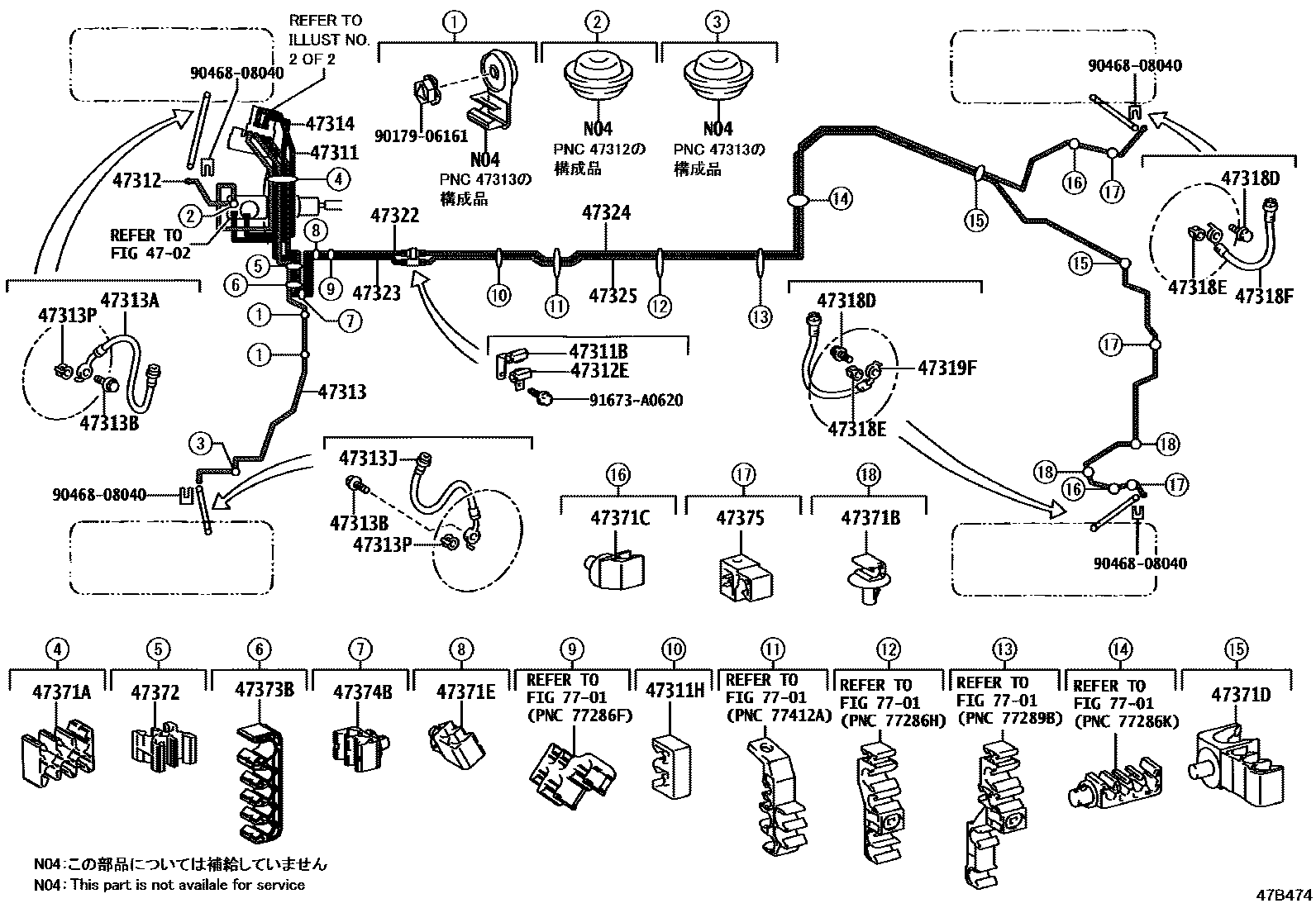

BRAKE TUBE & CLAMP

0001 1���������� 0002 1���������� 0003 1������������ 0004 1������������

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-24150iUSC10201409-201711

main47311-30730iUSC10201711-201902

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10297iUSC10201409-201902

47311HGROMMET(FOR BRAKE TUBE)

main90480-01621iUSC10201409-201902

47312TUBE, FRONT BRAKE, NO.2

main47312-24190iUSC10201409-201711

main47312-30A40iUSC10201711-201902

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10292iUSC10201409-201902

47313TUBE, FRONT BRAKE, NO.3

main47313-24190iUSC10201409-201711

main47313-30A60iUSC10201711-201902

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G57iUSC10201409-201902

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iUSC10201409-201902

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G57iUSC10201409-201902

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iUSC10201903

47314TUBE, FRONT BRAKE, NO.4

main47321-24140iUSC10201409-201711

main47321-30480iUSC10201711-201902

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iUSC10201409-201902

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iUSC10201409-201902

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H28iUSC10201409-201902

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H28iUSC10201409-201902

47322TUBE, REAR BRAKE, NO.2

main47322-24180iUSC10201409-201711

main47322-30640iUSC10201711-201902

47323TUBE, REAR BRAKE, NO.3

main47323-24090iUSC10201409-201711

main47323-30580iUSC10201711-201902

47324TUBE, REAR BRAKE, NO.4

main47324-24050iUSC10201409-201509

main47324-24051iUSC10201510-201902

47325TUBE, REAR BRAKE, NO.5

main47325-24030iUSC10201409-201509

main47325-24031iUSC10201510-201902

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00880iUSC10201409-201711

main90949-01D52iUSC10201711-201902

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D17×2iUSC10201409-201902

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D46×2iUSC10201409-201902

47371DCLAMP, BRAKE TUBE, NO.8

main77286-30190×2iUSC10201409-201902

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D13iUSC10201409-201902

47372CLAMP, BRAKE TUBE, NO.2

main90464-00876iUSC10201409-201902

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00910iUSC10201409-201902

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D12iUSC10201409-201902

47375CLAMP, BRAKE TUBE, NO.5

main90949-01C82×3iUSC10201409-201902

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9017906161

main90179-06161

9046808040

main90468-08040

91673A0620

main91673-A0620

33 parts on this diagram · 4 diagrams in section
