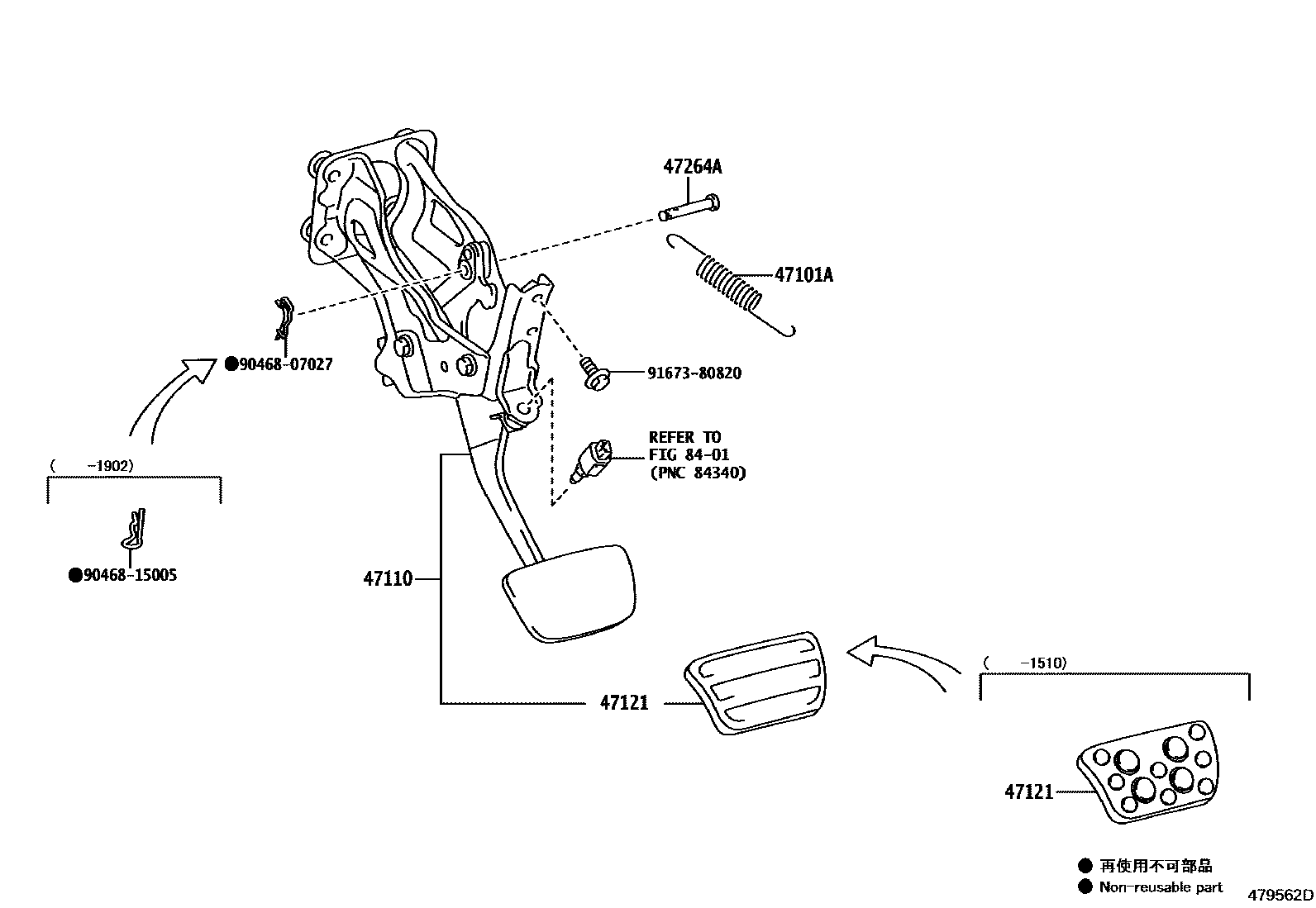

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13013supersedes 90507-13012iUSC10201903-202501

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24080iUSC10201409-201510

main47110-24230iUSC10201903-202009

main47110-24231iUSC10202009

main47110-30470iUSC10201510-201902

47121PAD, BRAKE PEDAL

main47121-11010iUSC10201903-202009

main47121-11020iUSC10202009

main47121-24010iUSC10201510-201902

main47121-30090iUSC10201409-201510

47264APIN(FOR PUSH ROD)

main90249-06180iUSC10201409-201902

main90249-08308iUSC10201903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046807027

main90468-07027

9046815005

main90468-15005

9167380820

main91673-80820

8 parts on this diagram · 1 diagram in section
