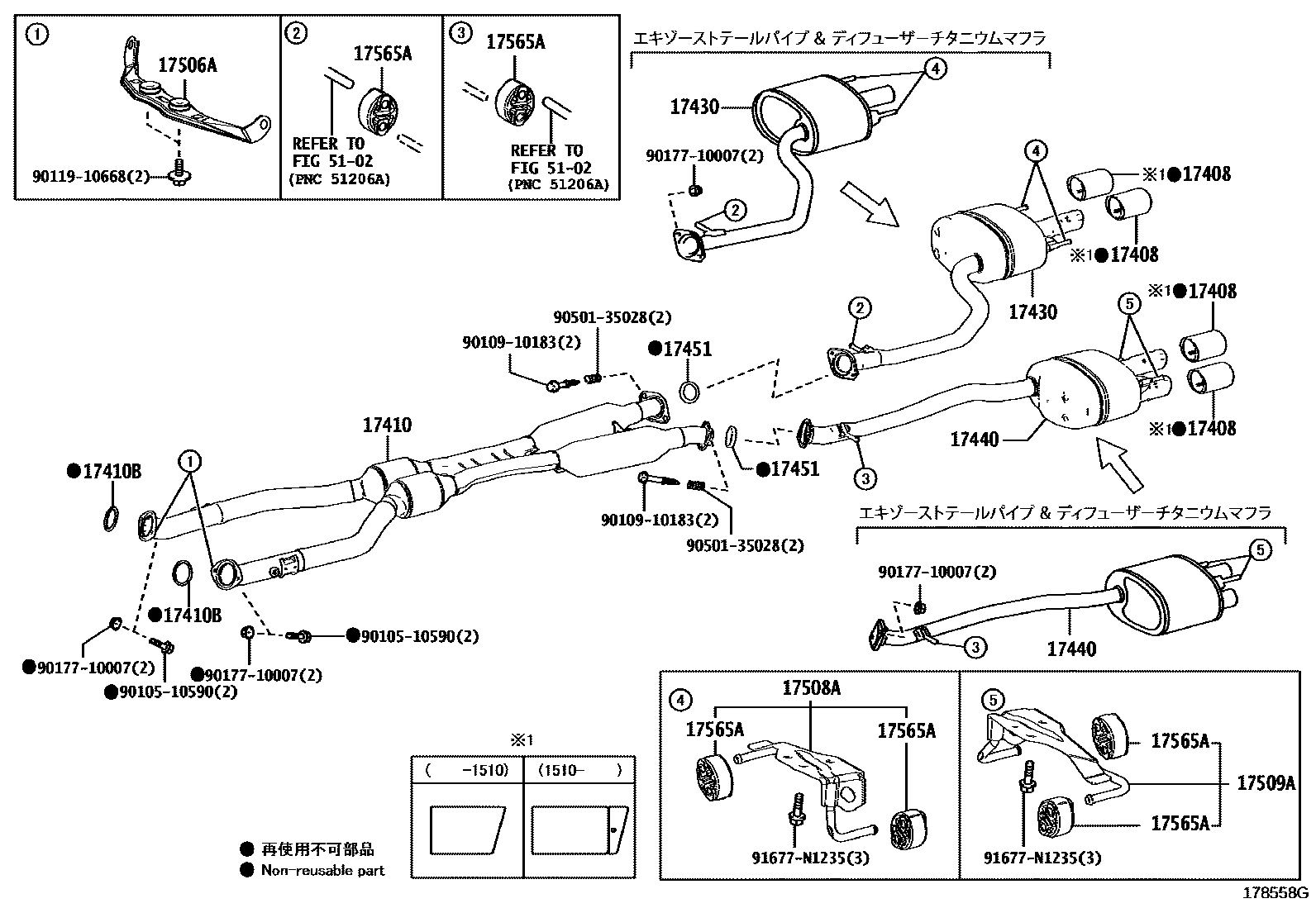

EXHAUST PIPE

0001 1 0002 1F 10TH ANNIVERSARY

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17049-38020×4i2URGSE..USC10201510-201902

main17408-38010×4i2URGSE..USC10201409-201510

main17049-38030×4i2URGSE..USC10201805-201902

main17049-38040×4supersedes 17049-38020i2URGSE..USC10201903

17410PIPE ASSY, EXHAUST, FRONT

main17410-38510i2URGSE..USC10201903-202203

main17410-38511i2URGSE..USC10202204

17410BGASKET, EXHAUST PIPE

main90917-06070×2i2URGSE..USC10201805-201902

17430PIPE ASSY, EXHAUST, TAIL

main17430-38640supersedes 17430-38660i2URGSE..USC10201409-201510

main17430-38660i2URGSE..USC10201510-201902

main17430-38741i2URGSE..USC10201805-201902

main17430-38750supersedes 17430-38660i2URGSE..USC10201903

17440PIPE, EXHAUST TAIL, LH

main17440-38050i2URGSE..USC10201510-201902

main17440-38080i2URGSE..USC10201409-201510

main17440-38131i2URGSE..USC10201805-201902

main17440-38140supersedes 17440-38050i2URGSE..USC10201903

17451GASKET, EXHAUST PIPE

main17451-28022×2i2URGSE..USC10201805-201902

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-38140i2URGSE..USC10201409-201902

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-38150i2URGSE..USC10201903

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-38050i2URGSE..USC10201903

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×6i2URGSE..USC10201409-201902

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

9010510590

main90105-10590

9010910183

main90109-10183

9011910668

main90119-10668

9017710007

main90177-10007

9050135028

main90501-35028

91677N1235

main91677-N1235

17 parts on this diagram · 2 diagrams in section
