11011WASHER SET, CRANKSHAFT THRUST

main11011-38050i201409-201902

11711BEARING, CRANKSHAFT

main11071-38030-D4×3supersedes 11072-38040-G8i202301-202501

main11071-38030-D5×3supersedes 11072-38040-G8i202301-202501

main11071-38030-E5×3supersedes 11072-38040-G8i202310-202501

main11071-38030-E6×3supersedes 11072-38040-G8i202310-202501

main11071-38030-F6×3supersedes 11072-38040-G8i202310-202501

main11072-38040-E6×2supersedes 11072-38040-G8i202310-202501

main11072-38040-F6×2supersedes 11072-38040-G8i202301-202501

main11072-38040-F7×2supersedes 11072-38040-G8i202310-202501

main11072-38040-G7×2supersedes 11072-38040-G8i202310-202501

main11072-38040-G8×2i202310-202501

13011RING SET, PISTON

main13011-38140i201409-201902

main13011-38150i202206

13041BEARING, CONNECTING ROD

main13041-38100-02×8i201903

main13041-38100-03×8i201903

main13041-38100-04×8i201409-201902

main13041-38100-05×8i201409-201902

main13041-38100-06×8i201409-201902

main13041-38100-07×8i201409-201902

13081PISTON SET

main13081-38010i202301-202501

13101PISTON SUB-ASSY, W/PIN

main00000-00000supersedes 13101-38151i202301-202501

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×16i201409-201902

13201ROD SUB-ASSY, CONNECTING

main00000-00000supersedes 13201-38050i202301-202501

13260ROD ASSY, CONNECTING

main13260-38010i202301-202501

13265BOLT, CONNECTING ROD

main13265-31020×16i201409-201902

13301PISTON SUB-ASSY, W/PIN, LH

main00000-00000supersedes 13301-38031i202301-202501

13411CRANKSHAFT

main13401-38040i201903

13471PULLEY, CRANKSHAFT

main13470-38050i201409-201510

main13470-38070i201510-201902

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30516i201903

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-18003i201409-201902

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-38030i201409-201902

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516i201409-201902

13522SSPROCKET, CRANKSHAFT TIMING, LH

main13522-38030i201409-201902

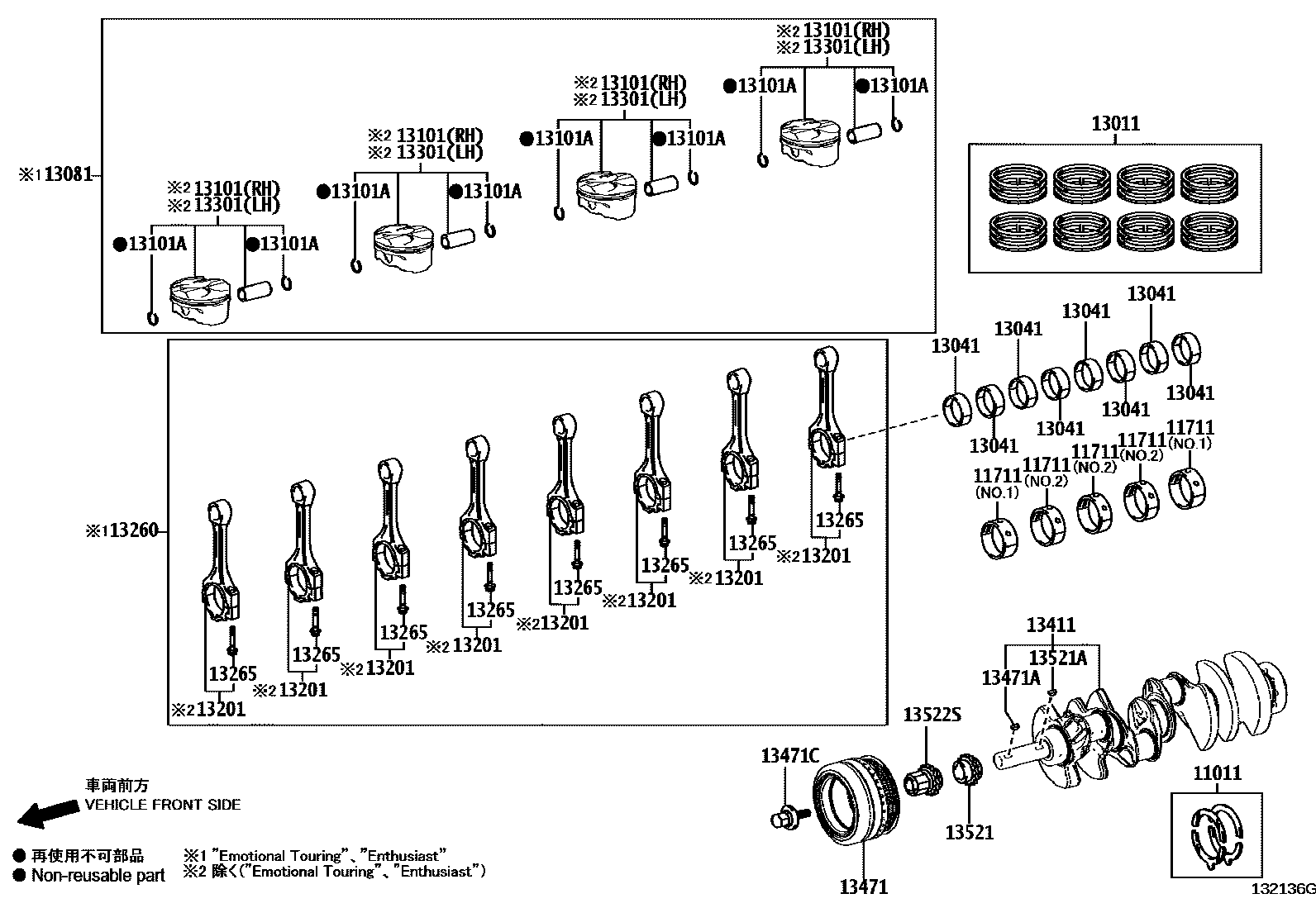

CRANKSHAFT & PISTON
