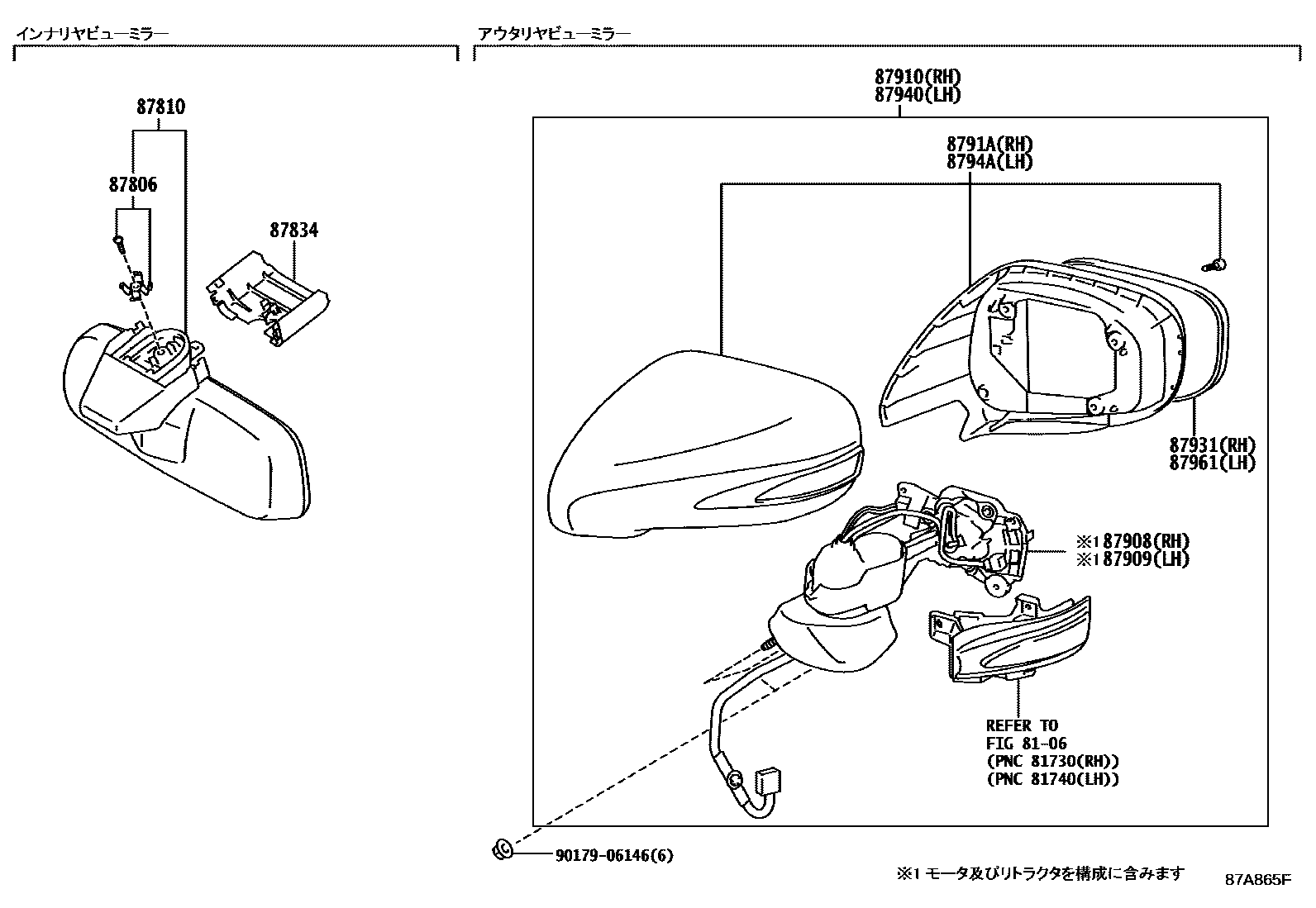

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87806SPRING SUB-ASSY, INNER MIRROR

main87806-24020i200904-201408

87810MIRROR ASSY, INNER REAR VIEW

main87810-53170i200904-201107

main87810-53171i201108-201408

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-53030i200904-201408

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-53500-A0i200904-201008

WHITE PEARL CS.,077

main87908-53500-B0i200904-201008

DK.GRAY MC.,1G0

main87908-53500-B1i200904-201008

SILVER M.M.,1G1

main87908-53500-C0i200904-201008

BLACK,212

main87908-53500-D0i200904-201008

RED MC.CS.,3R1

main87908-53500-J0i200904-201008

DK.BLUE MC. CC.,8U0

main87908-53500-J1i200904-201008

BLUE ME.,8U1

main87908-53500-J2i200904-201008

SILVERY BLUE ME.,8U9

main87908-53500-K0i200904-201008

CATTLEYA M.M.,9AL

main87908-53630-A0i201008-201408

WHITE PEARL CS.,077

main87908-53630-A1i201208-201408

WHITE NOVA GF.,083

main87908-53630-B0i201008-201208

SILVER M.M.,1G1

main87908-53630-B1i201108-201408

MERCURY GRAY MC.,1H9

main87908-53630-B2i201008-201108

DK.GRAY MC.,1G0

main87908-53630-B3i201208-201408

PLATINUM SILVER ME.,1J4

main87908-53630-C0i201008-201408

BLACK,212

main87908-53630-D0i201008-201408

RED MC.CS.,3R1

main87908-53630-J0i201008-201408

BLUE ME.,8U1

main87908-53630-J1i201008-201208

SILVERY BLUE ME.,8U9

main87908-53630-J2i201008-201408

LAPIS LAZULI MC.,8V3

main87908-53630-K0i201008-201408

CATTLEYA M.M.,9AL

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-53500-A0i200904-201008

WHITE PEARL CS.,077

main87909-53500-B0i200904-201008

DK.GRAY MC.,1G0

main87909-53500-B1i200904-201008

SILVER M.M.,1G1

main87909-53500-C0i200904-201008

BLACK,212

main87909-53500-D0i200904-201008

RED MC.CS.,3R1

main87909-53500-J0i200904-201008

DK.BLUE MC. CC.,8U0

main87909-53500-J1i200904-201008

BLUE ME.,8U1

main87909-53500-J2i200904-201008

SILVERY BLUE ME.,8U9

main87909-53500-K0i200904-201008

CATTLEYA M.M.,9AL

main87909-53630-A0i201008-201408

WHITE PEARL CS.,077

main87909-53630-A1i201208-201408

WHITE NOVA GF.,083

main87909-53630-B0i201008-201208

SILVER M.M.,1G1

main87909-53630-B1i201108-201408

MERCURY GRAY MC.,1H9

main87909-53630-B2i201008-201108

DK.GRAY MC.,1G0

main87909-53630-B3i201208-201408

PLATINUM SILVER ME.,1J4

main87909-53630-C0i201008-201408

BLACK,212

main87909-53630-D0i201008-201408

RED MC.CS.,3R1

main87909-53630-J0i201008-201408

BLUE ME.,8U1

main87909-53630-J1i201008-201208

SILVERY BLUE ME.,8U9

main87909-53630-J2i201008-201408

LAPIS LAZULI MC.,8V3

main87909-53630-K0i201008-201408

CATTLEYA M.M.,9AL

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-53500-A0i200904-201008

WHITE PEARL CS.,077

main87910-53500-B0i200904-201008

DK.GRAY MC.,1G0

main87910-53500-B1i200904-201008

SILVER M.M.,1G1

main87910-53500-C0i200904-201008

BLACK,212

main87910-53500-D0i200904-201008

RED MC.CS.,3R1

main87910-53500-J0i200904-201008

DK.BLUE MC. CC.,8U0

main87910-53500-J1i200904-201008

BLUE ME.,8U1

main87910-53500-J2i200904-201008

SILVERY BLUE ME.,8U9

main87910-53500-K0i200904-201008

CATTLEYA M.M.,9AL

main87910-53630-A0i201008-201408

WHITE PEARL CS.,077

main87910-53630-A1i201208-201408

WHITE NOVA GF.,083

main87910-53630-B0i201008-201208

SILVER M.M.,1G1

main87910-53630-B1i201108-201408

MERCURY GRAY MC.,1H9

main87910-53630-B2i201008-201108

DK.GRAY MC.,1G0

main87910-53630-B3i201208-201408

PLATINUM SILVER ME.,1J4

main87910-53630-C0i201008-201408

BLACK,212

main87910-53630-D0i201008-201408

RED MC.CS.,3R1

main87910-53630-J0i201008-201408

BLUE ME.,8U1

main87910-53630-J1i201008-201208

SILVERY BLUE ME.,8U9

main87910-53630-J2i201008-201408

LAPIS LAZULI MC.,8V3

main87910-53630-K0i201008-201408

CATTLEYA M.M.,9AL

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-53350-A0i200904-201209

WHITE PEARL CS.,077

main8791A-53350-A3i201208-201209

WHITE NOVA GF.,083

main8791A-53350-B0i200904-201108

DK.GRAY MC.,1G0

main8791A-53350-B1i200904-201208

SILVER M.M.,1G1

main8791A-53350-B2i201108-201209

MERCURY GRAY MC.,1H9

main8791A-53350-B4i201208-201209

PLATINUM SILVER ME.,1J4

main8791A-53350-C0i200904-201209

BLACK,212

main8791A-53350-D0i200904-201209

RED MC.CS.,3R1

main8791A-53350-J1i200904-201008

DK.BLUE MC. CC.,8U0

main8791A-53350-J2i201008-201209

LAPIS LAZULI MC.,8V3

main8791A-53350-J3i200904-201209

BLUE ME.,8U1

main8791A-53350-J4i200904-201208

SILVERY BLUE ME.,8U9

main8791A-53350-K0i200904-201209

CATTLEYA M.M.,9AL

main8791A-53351-A0i201209-201408

WHITE PEARL CS.,077

main8791A-53351-A3i201209-201408

WHITE NOVA GF.,083

main8791A-53351-B2i201209-201408

MERCURY GRAY MC.,1H9

main8791A-53351-B4i201209-201408

PLATINUM SILVER ME.,1J4

main8791A-53351-C0i201209-201408

BLACK,212

main8791A-53351-D0i201209-201408

RED MC.CS.,3R1

main8791A-53351-J2i201209-201408

LAPIS LAZULI MC.,8V3

main8791A-53351-J3i201209-201408

BLUE ME.,8U1

main8791A-53351-K0i201209-201408

CATTLEYA M.M.,9AL

87931OUTER MIRROR, RH

main87931-53320i201008-201408

main87931-53350i200904-201008

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-53500-A0i200904-201008

WHITE PEARL CS.,077

main87940-53500-B0i200904-201008

DK.GRAY MC.,1G0

main87940-53500-B1i200904-201008

SILVER M.M.,1G1

main87940-53500-C0i200904-201008

BLACK,212

main87940-53500-D0i200904-201008

RED MC.CS.,3R1

main87940-53500-J0i200904-201008

DK.BLUE MC. CC.,8U0

main87940-53500-J1i200904-201008

BLUE ME.,8U1

main87940-53500-J2i200904-201008

SILVERY BLUE ME.,8U9

main87940-53500-K0i200904-201008

CATTLEYA M.M.,9AL

main87940-53630-A0i201008-201408

WHITE PEARL CS.,077

main87940-53630-A1i201208-201408

WHITE NOVA GF.,083

main87940-53630-B0i201008-201208

SILVER M.M.,1G1

main87940-53630-B1i201108-201408

MERCURY GRAY MC.,1H9

main87940-53630-B2i201008-201108

DK.GRAY MC.,1G0

main87940-53630-B3i201208-201408

PLATINUM SILVER ME.,1J4

main87940-53630-C0i201008-201408

BLACK,212

main87940-53630-D0i201008-201408

RED MC.CS.,3R1

main87940-53630-J0i201008-201408

BLUE ME.,8U1

main87940-53630-J1i201008-201208

SILVERY BLUE ME.,8U9

main87940-53630-J2i201008-201408

LAPIS LAZULI MC.,8V3

main87940-53630-K0i201008-201408

CATTLEYA M.M.,9AL

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-53350-A0i200904-201209

WHITE PEARL CS.,077

main8794A-53350-A3i201208-201209

WHITE NOVA GF.,083

main8794A-53350-B0i200904-201108

DK.GRAY MC.,1G0

main8794A-53350-B1i200904-201208

SILVER M.M.,1G1

main8794A-53350-B2i201108-201209

MERCURY GRAY MC.,1H9

main8794A-53350-B4i201208-201209

PLATINUM SILVER ME,1J4

main8794A-53350-C0i200904-201209

BLACK,212

main8794A-53350-D0i200904-201209

RED MC.CS.,3R1

main8794A-53350-J1i200904-201008

DK.BLUE MC. CC.,8U0

main8794A-53350-J2i201008-201209

LAPIS LAZULI MC.,8V3

main8794A-53350-J3i200904-201209

BLUE ME.,8U1

main8794A-53350-J4i200904-201208

SILVERY BLUE ME.,8U9

main8794A-53350-K0i200904-201209

CATTLEYA M.M.,9AL

main8794A-53351-A0i201209-201408

WHITE PEARL CS.,077

main8794A-53351-A3i201209-201408

WHITE NOVA GF.,083

main8794A-53351-B2i201209-201408

MERCURY GRAY MC.,1H9

main8794A-53351-B4i201209-201408

PLATINUM SILVER ME.,1J4

main8794A-53351-C0i201209-201408

BLACK,212

main8794A-53351-D0i201209-201408

RED MC.CS.,3R1

main8794A-53351-J2i201209-201408

LAPIS LAZULI MC.,8V3

main8794A-53351-J3i201209-201408

BLUE ME.,8U1

main8794A-53351-K0i201209-201408

CATTLEYA M.M.,9AL

87961MIRROR OUTER, LH

main87961-53320i201008-201408

main87961-53350i200904-201008

9017906146

main90179-06146

13 parts on this diagram · 1 diagram in section
