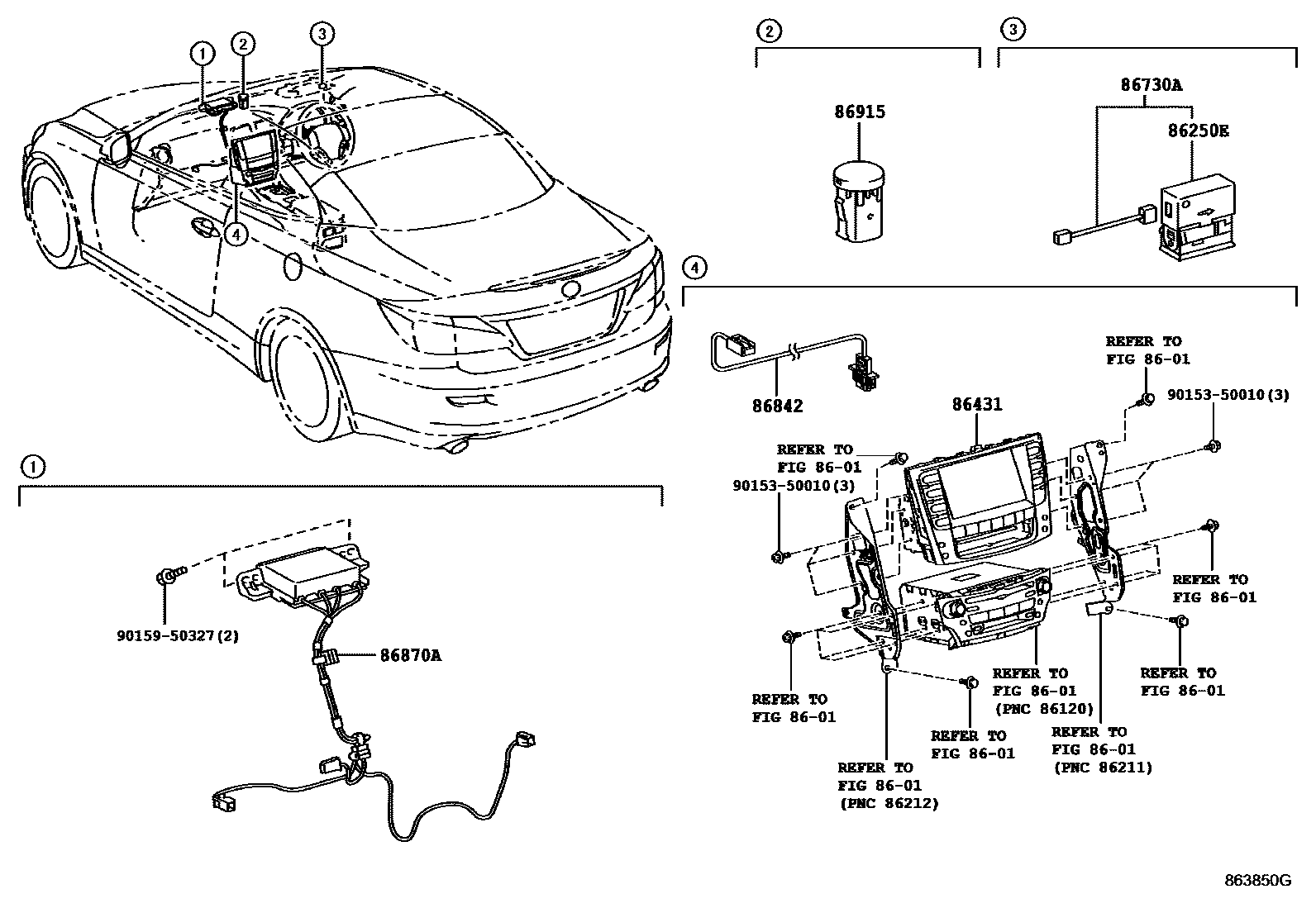

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020iGSE2#200904-201408

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-53220supersedes 86431-53B12iGSE20200904-200908

main86431-53530supersedes 86431-53B12iGSE20200908-200909

main86431-53531supersedes 86431-53B12iGSE20200909-201003

main86431-53532supersedes 86431-53B12iGSE20201004-201007

main86431-53650supersedes 86431-53C22iGSE21201008-201009

main86431-53651supersedes 86431-53C22iGSE21201009-201103

main86431-53652supersedes 86431-53642iGSE21201104-201108

main86431-53750supersedes 86431-53B12iGSE20201008-201009

main86431-53751supersedes 86431-53B12iGSE20201009-201103

main86431-53752supersedes 86431-53742iGSE20201104-201108

main86431-53C10supersedes 86431-53B10iGSE20201108-201109

main86431-53C11supersedes 86431-53B12iGSE20201109-201110

main86431-53C12supersedes 86431-53B12iGSE20201110-201205

main86431-53C13supersedes 86431-53B13iGSE20201206-201208

main86431-53C30supersedes 86431-53C20iGSE21201108-201109

main86431-53C31supersedes 86431-53C22iGSE21201109-201110

main86431-53C32supersedes 86431-53C22iGSE21201110-201205

main86431-53C33supersedes 86431-53C23iGSE21201206-201208

86730AMICROPHONE ASSY, TELEPHONE

main86730-53030iGSE2#200904-201408

86842WIRE, NAVIGATION, NO.1

main86842-53100iGSE2#200904-201208

main86842-53200iGSE2#201208-201408

86870AANTENNA ASSY, GPS & VICS

main86870-53030iGSE2#200904-201208

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iGSE2#200904-201408

9015350010

main90153-50010

9015950327

main90159-50327

9 parts on this diagram · 2 diagrams in section
