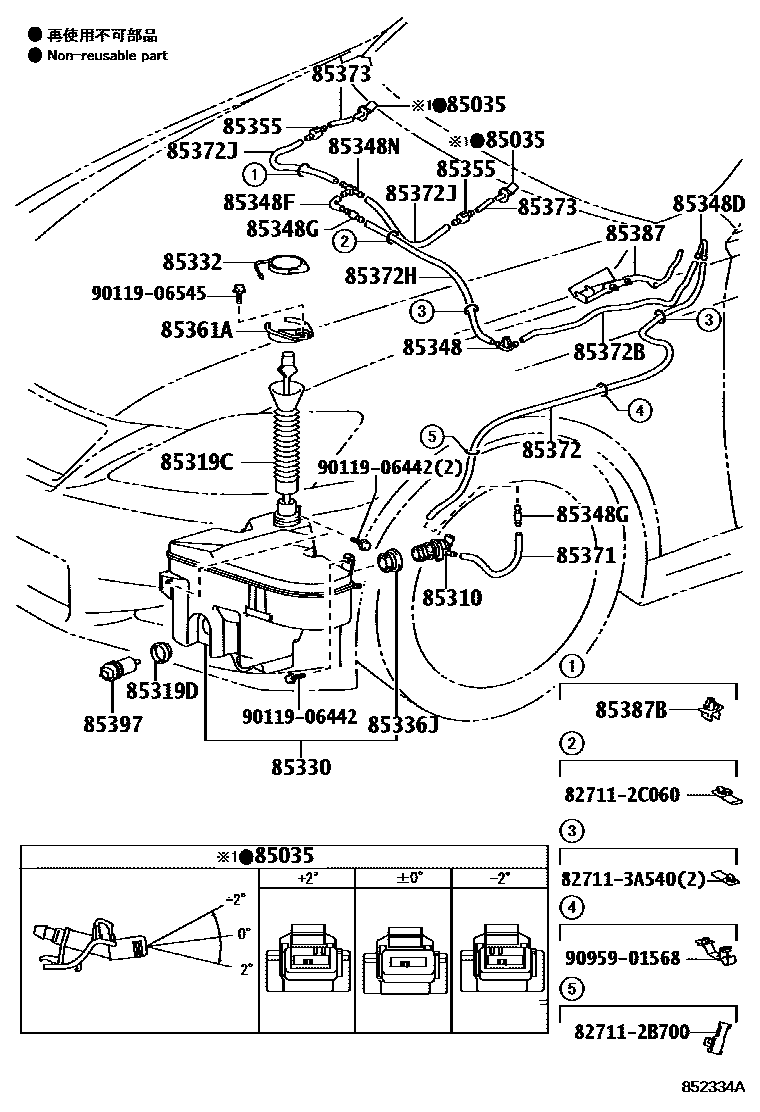

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387BCLAMP, WASHER, NO.3
85397SWITCH ASSY,LEVEL WARNING
827112B700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B700
827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C060
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
9011906442
main90119-06442
9011906545
main90119-06545
9095901568
main90959-01568
29 parts on this diagram · 2 diagrams in section
