SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� ��� 0003 1�������� �������� 0004 1��� 0005 1������������ 0006 1������������ 0007 1������������ 0008 1������� 0009 1��� 0010 1���,���,��� & �������

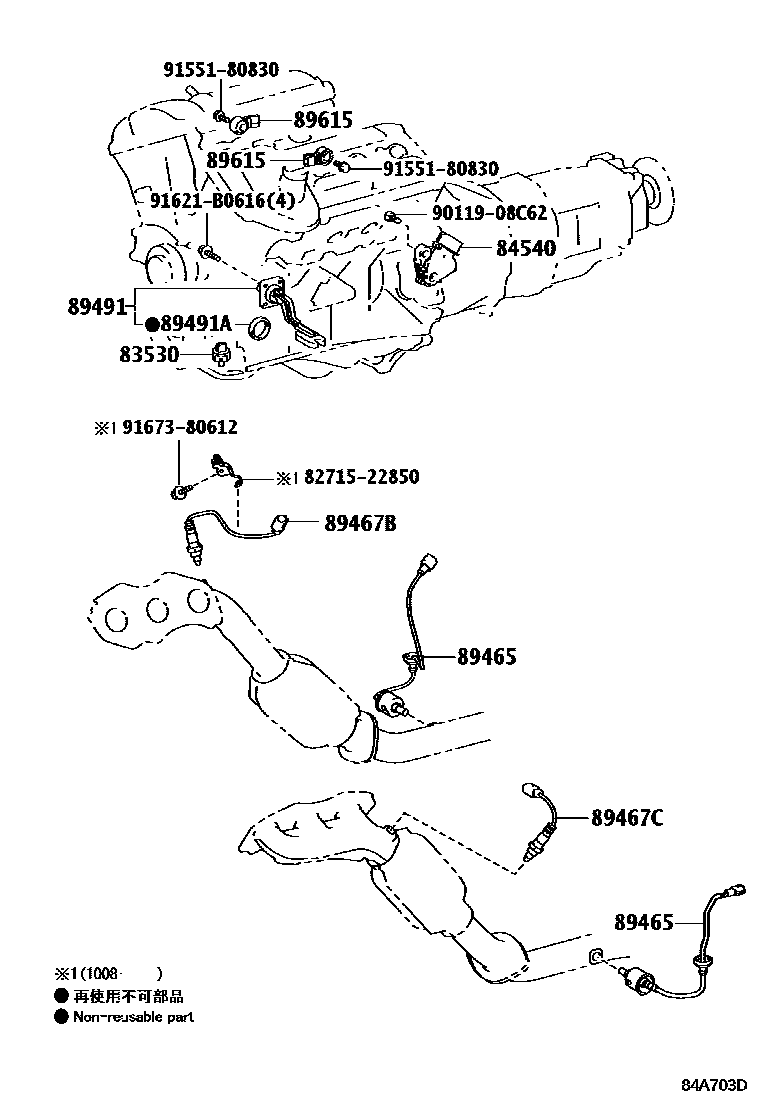

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSE2#200904-201408

main83530-60020iGSE2#200904-201408

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGSE2#201309-201408

main84540-71010iGSE2#200904-201309

89465SENSOR, OXYGEN

main89465-30730×2iGSE2#200904-201408

89467BSENSOR, AIR FUEL RATIO

main89467-22050iGSE2#201008-201408

main89467-30040iGSE20200904-201008

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22030iGSE2#201008-201408

main89467-30030iGSE20200904-201008

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGSE2#200904-201108

main89491-30061iGSE2#201109-201408

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGSE2#200904-201408

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGSE2#200904-201408

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9011908C62

main90119-08C62

9155180830

main91551-80830

91621B0616

main91621-B0616

9167380612

main91673-80612

13 parts on this diagram · 10 diagrams in section
