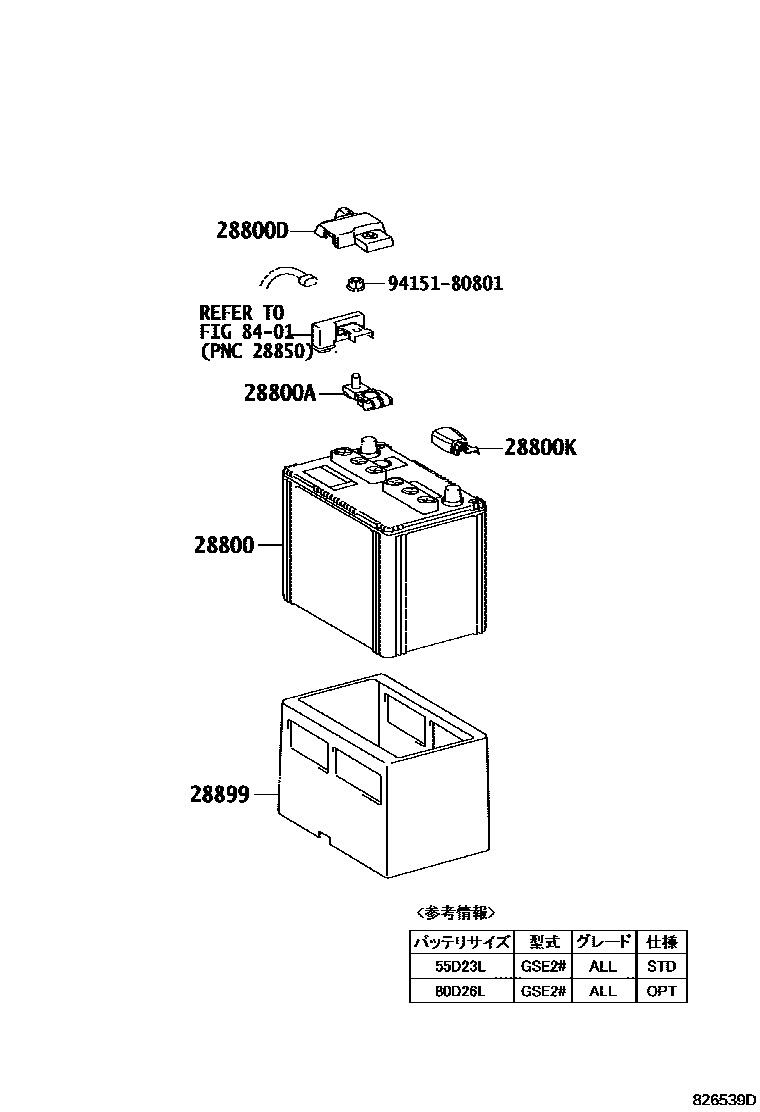

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31370supersedes 28800-50140i2GRFSE,4GRFSE..GSE2#200904-201408

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2GRFSE,4GRFSE..GSE2#200904-201408

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i2GRFSE,4GRFSE..GSE2#200904-201408

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRFSE,4GRFSE..GSE2#201208-201408

main82821-50450i2GRFSE,4GRFSE..GSE2#200904-201208

28899INSULATOR, BATTERY

main28899-31020supersedes 28899-31010i2GRFSE,4GRFSE..GSE2#200904-201408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
