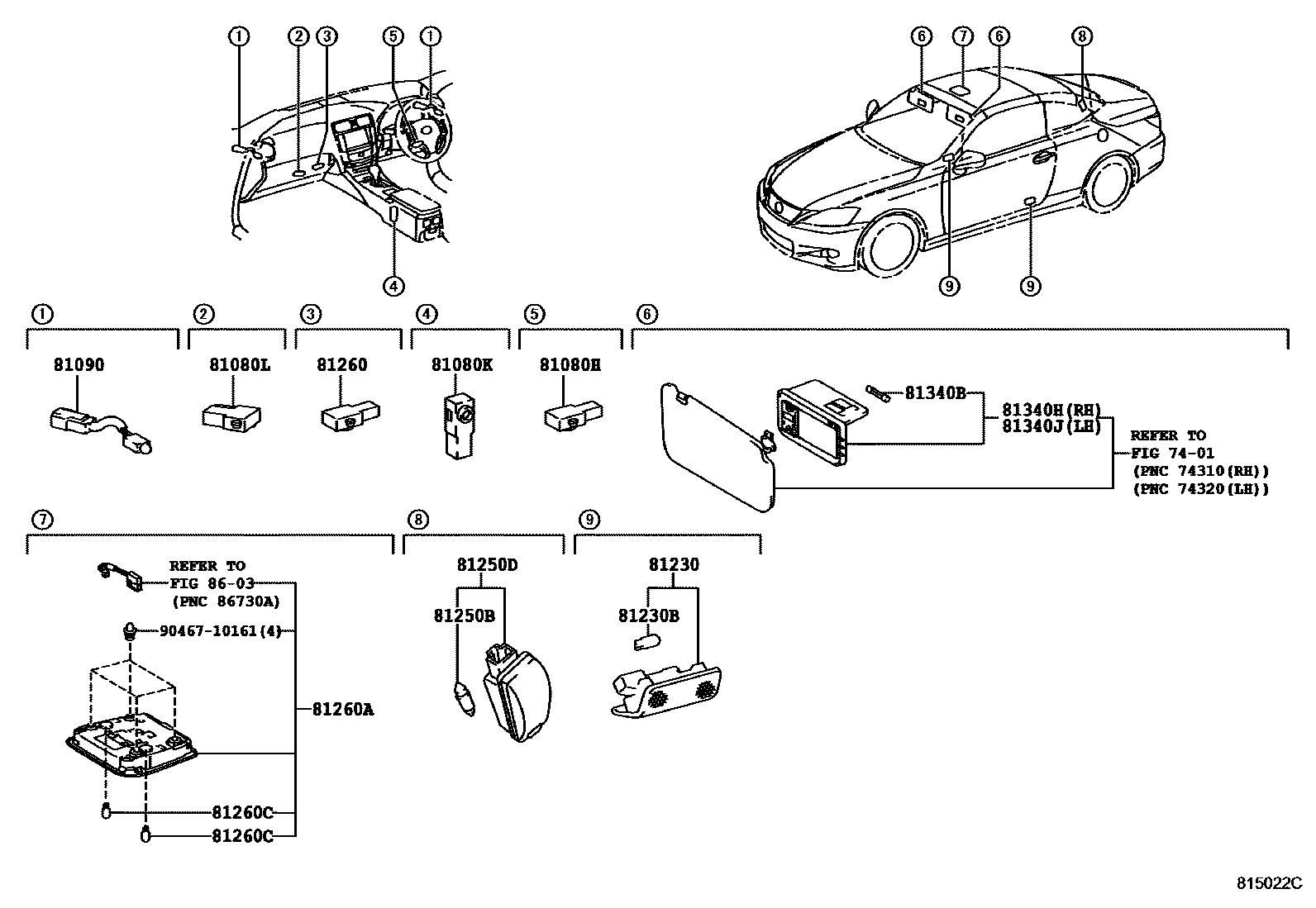

INTERIOR LAMP
7401ARMREST & VISOR
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81250BBULB, ROOM LAMP, NO.2
81250DLAMP ASSY, REAR ROOM, RH
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
MELLOW WHITE,TRIM0#
MELLOW WHITE,TRIM0#,30,31,32
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
LT.GRAY,TRIM1#,2#,3#,4#
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,3#,4#
81260CBULB(FOR MAP LAMP)
81340BBULB (FOR VANITY LAMP)
81340HLAMP ASSY, VANITY, RH
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
LT.GRAY,TRIM1#,2#,3#,4#
81340JLAMP ASSY, VANITY, LH
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
LT.GRAY,TRIM1#,2#,3#,4#
8603NAVIGATION & FRONT MONITOR DISPLAY
9046710161
main90467-10161
17 parts on this diagram · 1 diagram in section
