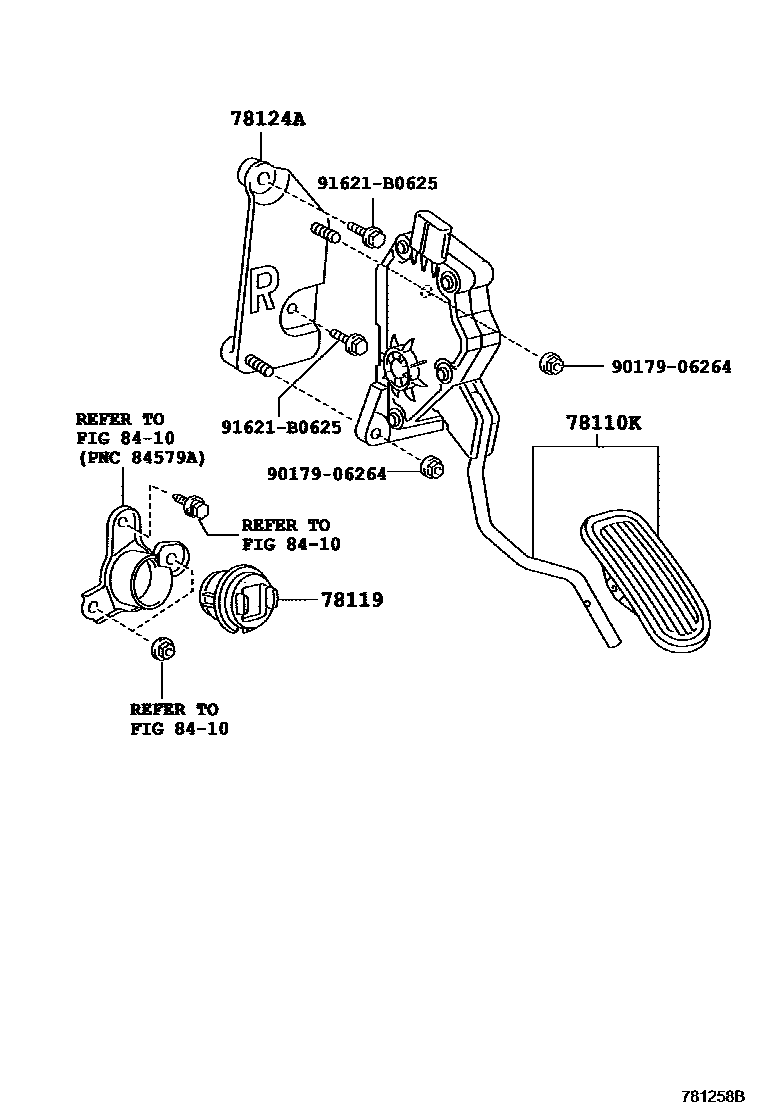

ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-53021supersedes 78110-53011iGSE20200904-201007

main78110-53022supersedes 78110-53012iGSE2#201008-201408

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iGSE2#200904-201408

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-53010iGSE2#200904-201408

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9017906264

main90179-06264

91621B0625

main91621-B0625

6 parts on this diagram · 1 diagram in section
