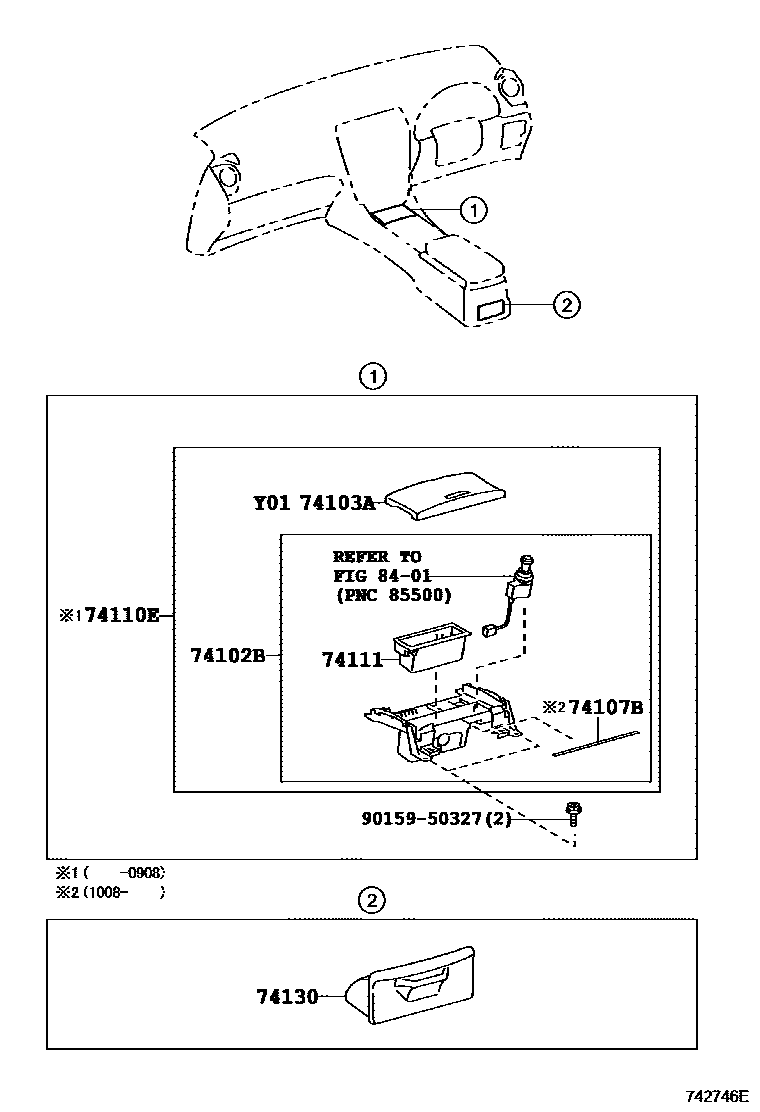

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-53020iGSE20200908-201008

74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE

main74103-53011iGSE20200904-201008

main74103-53020-B0iGSE21201008-201408

GRAY,TRIM01,11,21,34,37,41

main74103-53020-E0iGSE21201008-201408

BROWN,TRIM06,12,22,35,38,42

main74103-53020-E2iGSE21201008-201408

LT.BROWN,TRIM00,10,20,33,36,40

74107BSEAL, ASH RECEPTACLE DOOR

74110ERECEPTACLE ASSY, FRONT ASH

main74110-53011iGSE20200904-200908

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iGSE20200904-201008

74130RECEPTACLE ASSY, REAR ASH

main74130-53010-C0iGSE20200904-201008

BLACK,TRIM0#,1#,2#,3#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950327

main90159-50327

8 parts on this diagram · 1 diagram in section
