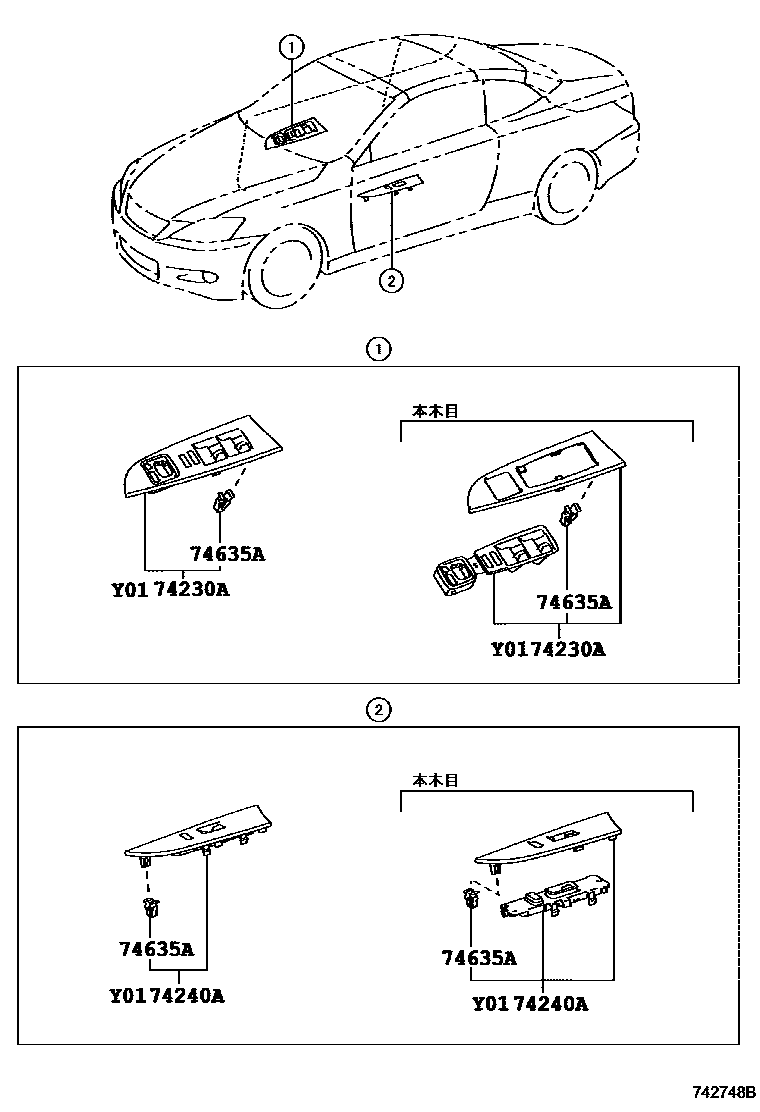

ARMREST & VISOR
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
GRAY,TRIM01,11,21,34,37,41
LT.BROWN,TRIM00,10,20,33,36,40
DK.BROWN,TRIM06,12,22,35,38,42
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
GRAY,TRIM01,11,21,34,37,41
LT.BROWN,TRIM00,10,20,33,36,40
DK.BROWN,TRIM06,12,22,35,38,42
3 parts on this diagram · 2 diagrams in section
