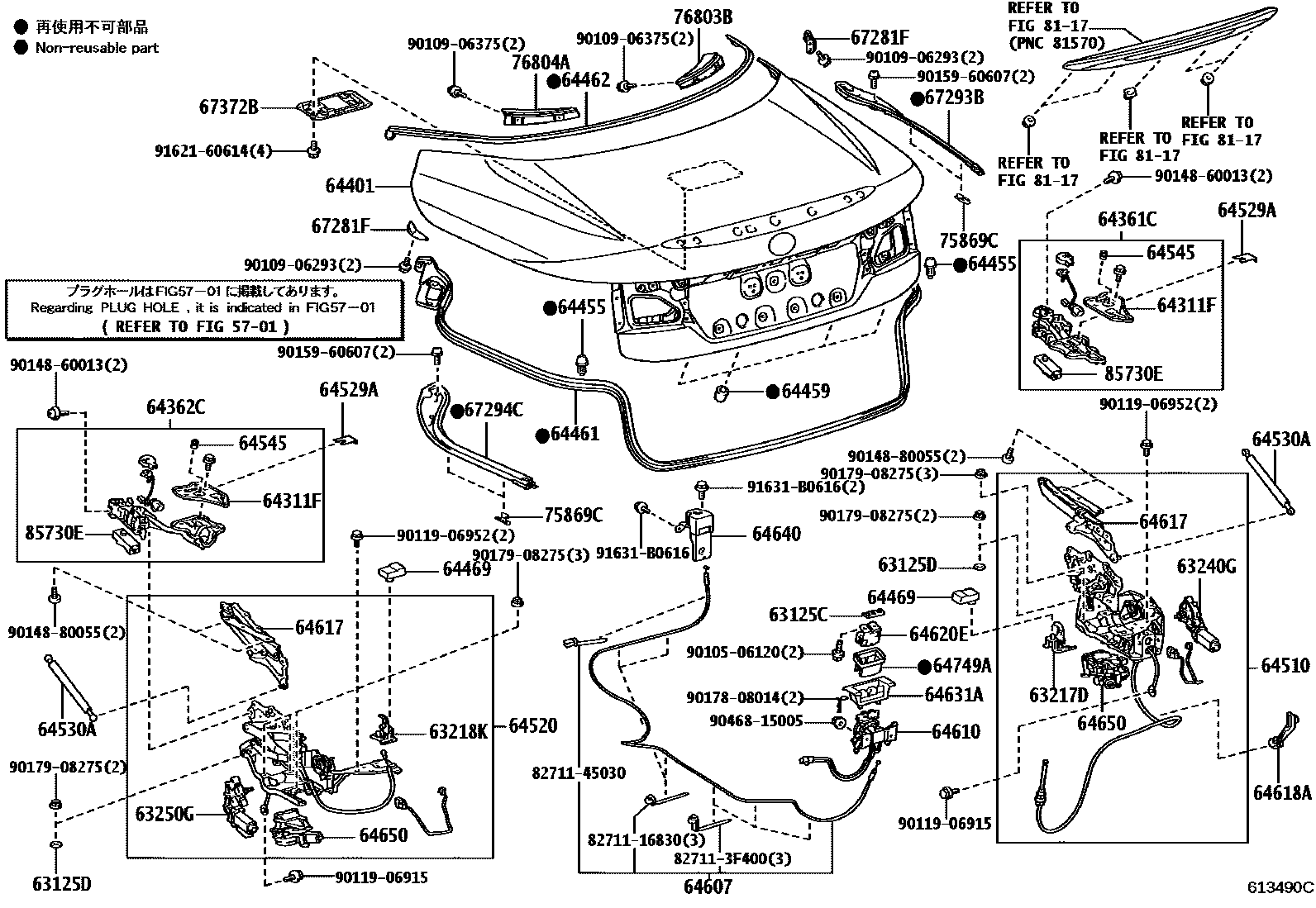

LUGGAGE COMPARTMENT DOOR & LOCK

5701HOLE PLUG

→ Go to FIG 57-01

63125CSHIM, LUGGAGE DOOR

main63125-24050iGSE2#200904-201408

63125DSHIM, LUGGAGE DOOR, NO.2

main63125-53010iGSE2#200904-201408

63217DHOOK, REMOVABLE ROOF AUXILIARY, RH

main63217-53010iGSE2#200904-201408

63218KHOOK, REMOVABLE ROOF AUXILIARY

main63218-53010iGSE2#200904-201408

63240GGEAR ASSY, LUGGAGE DOOR DRIVE, RH

main63240-53010iGSE2#200904-201408

63250GGEAR ASSY, LUGGAGE DOOR DRIVE, LH

main63250-53010iGSE2#200904-201408

64311FPANEL, PACKAGE TRAY

main64311-53030iGSE2#200904-201408

main64311-53040iGSE2#200904-201408

64361CHINGE, PACKAGE TRAY TRIM, NO.1

main64361-53020iGSE2#200904-201408

64362CHINGE, PACKAGE TRAY TRIM, NO.2

main64362-53020iGSE2#200904-201408

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-53230iGSE2#200904-201408

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-53010×2iGSE2#200904-201408

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09124×4iGSE2#200904-201408

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64462-53010iGSE2#200904-201408

64462WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64463-53010iGSE2#200904-201305

main64463-53011iGSE2#201306-201408

64469CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2

main63279-53010×2iGSE2#200904-201311

main63279-53011×2iGSE2#201312-201408

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-53060iGSE2#200904-201408

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-53050iGSE2#200904-201408

64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE

main63125-53190iGSE2#200904-201408

main63125-53200iGSE2#200904-201408

main63125-53210iGSE2#200904-201408

main63125-53220iGSE2#200904-201408

main63125-53230iGSE2#200904-201408

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-53030iGSE20200904-201003

main64530-53031iGSE2#201004-201112

main64530-53032iGSE2#201201-201408

main64540-53010iGSE20200904-201003

main64540-53011iGSE2#201004-201112

main64540-53012iGSE2#201201-201408

64545CUSHION, LUGGAGE DOOR HINGE

main90541-15030×2iGSE2#200904-201408

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-53060iGSE2#200904-201408

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-53050iGSE2#200904-201111

main64600-53051iGSE2#201112-201408

64617LINK, LUGGAGE COMPARTMENT DOOR LOCK

main64523-53020iGSE2#200904-201408

main64524-53010iGSE2#200904-201408

64618ACLAMP, LUGGAGE LOCK CONTROL CABLE

main64618-53020iGSE2#200904-201408

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-24030iGSE2#200904-201408

64631APROTECTOR, LUGGAGE DOOR LOCK

main69358-53010-A1iGSE2#200904-201108

IVORY,TRIM0#,1#,2#,3#,4#

main69358-53010-C0iGSE2#201108-201408

BLACK,TRIM0#,1#,2#,3#,4#

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-53010iGSE2#200904-201408

64650CLOSER ASSY, LUGGAGE DOOR

main80550-53010iGSE2#200904-201408

main80560-53010iGSE2#200904-201408

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64631-53020iGSE2#200904-201408

67281FSTOPPER, BACK DOOR, LOWER

main67281-53010iGSE2#200904-201408

main67281-53020iGSE2#200904-201408

main67281-53030iGSE2#200904-201408

main67282-53010iGSE2#200904-201408

main67282-53020iGSE2#200904-201408

main67282-53030iGSE2#200904-201408

67293BCUSHION, BACK DOOR STOPPER, RH

main67293-53010iGSE2#200904-201408

67294CCUSHION, BACK DOOR STOPPER, LH

main67294-53010iGSE2#200904-201408

67372BWEIGHT, LUGGAGE DOOR

main67372-53010iGSE2#200904-201012

main67372-53011iGSE2#201101-201408

75869CRETAINER, QUARTER OPENING, LH

main75879-53010×4iGSE2#200904-201408

76803BGARNISH SUB-ASSY, LUGGAGE DOOR, OUTSIDE UPPER RH

main76803-53010iGSE20200904-201006

main76803-53011iGSE2#201007-201408

76804AGARNISH SUB-ASSY, LUGGAGE DOOR, OUTSIDE UPPER LH

main76804-53010iGSE20200904-201006

main76804-53011iGSE2#201007-201408

8117CENTER STOP LAMP

→ Go to FIG 81-17

85730EMOTOR ASSY, SLIDE ROOF

main85730-53010×2iGSE2#200904-201408

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400

8271145030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-45030

9010506120

main90105-06120

9010906293

main90109-06293

9010906375

main90109-06375

9011906915

main90119-06915

9011906952

main90119-06952

9014860013

main90148-60013

9014880055

main90148-80055

9015960607

main90159-60607

9017808014

main90178-08014

9017908275

main90179-08275

9046815005

main90468-15005

9162160614

main91621-60614

91631B0616

main91631-B0616
