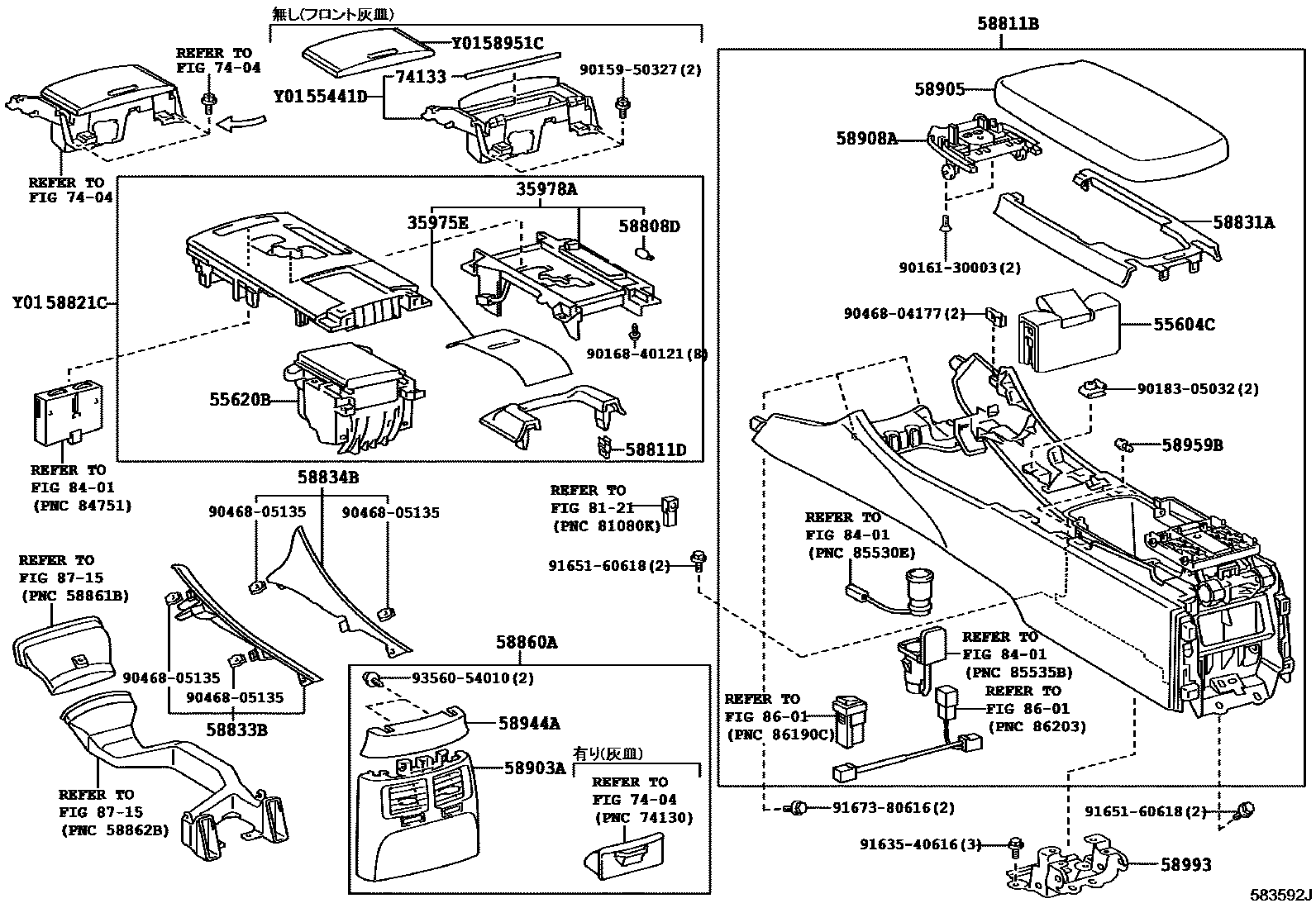

CONSOLE BOX & BRACKET
35975ECOVER, SLIDE (FOR POSITION INDICATOR)
35978AINDICATOR, SHIFT POSITION
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
55620BHOLDER, INSTRUMENT PANEL CUP
GRAY,TRIM01,11,21,34,37,41
BROWN,TRIM06,12,22,35,38,42
LT.BROWN,TRIM00,10,20,33,36,40
58808DSHIFT INDICATOR LAMP BULB
58811BBOX, CONSOLE
BLACK/LT.GRAY,TRIM2#
BLACK/MELLOW WHITE,TRIM0#
58811DCLIP(FOR CONSOLE BOX)
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK/GRAY,TRIM01,11,21,34,37,41
BLACK/LT.BROWN,TRIM00,10,20,33,36,40
BLACK,TRIM06,12,22,35,38,42
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,3#,4#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM0#,1#,2#,3#,4#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MELLOW WHITE,TRIM0#
BLACK,TRIM2#
MELLOW WHITE,TRIM00,01,06
BLACK/LT.GRAY,TRIM1#,20,21,22,23
BLACK/RED NO.55,TRIM33,34,35,36,37,38
BLACK/SADDLE TAN,TRIM4#
BLACK/DK.ROSE,TRIM39
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
MELLOW WHITE,TRIM0#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#
58944ACOVER, CONSOLE, REAR
BLACK,TRIM0#,1#,2#,3#,4#
58951CDOOR, BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58993BRACKET, CONSOLE BOX MOUNTING, REAR
7404
74133SEAL, FRONT ASH RECEPTACLE
8121
8401
8601
8715
9015950327
main90159-50327
9016130003
main90161-30003
9016840121
main90168-40121
9018305032
main90183-05032
9046804177
main90468-04177
9046805135
main90468-05135
9163540616
main91635-40616
9165160618
main91651-60618
9167380616
main91673-80616
9356054010
main93560-54010
36 parts on this diagram · 1 diagram in section
