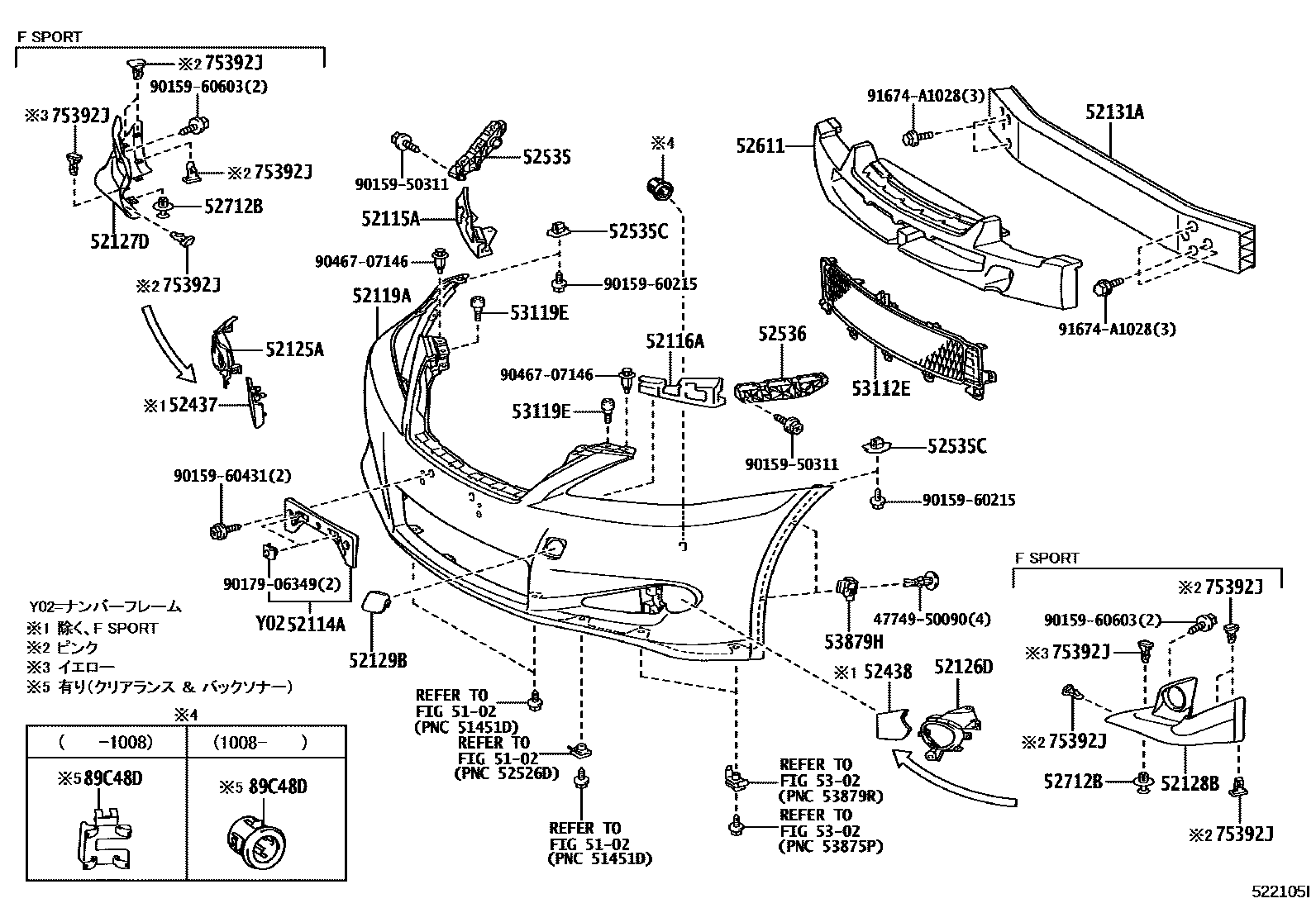

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK,212
RED MC.CS.,3R1
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
CATTLEYA M.M.,9AL
52125ABRACKET, FOG LAMP MOUNTING, RH
52126DBRACKET, FOG LAMP MOUNTING, LH
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
WHITE PEARL CS.,077
DK.GRAY MC.,1G0
SILVER M.M.,1G1
MERCURY GRAY MC.,1H9
BLACK,212
RED MC.CS.,3R1
DK.BLUE MC. CC.,8U0
BLUE ME.,8U1
SILVERY BLUE ME.,8U9
LAPIS LAZULI MC.,8V3
CATTLEYA M.M.,9AL
52131AREINFORCEMENT, FRONT BUMPER
52437COVER, FRONT BUMPER GUARD, RH
52438COVER, FRONT BUMPER GUARD, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52712BCLIP, FRONT BUMPER MOULDING
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
53119EPROTECTOR, RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
75392JRETAINER, OUTSIDE MOULDING
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
4774950090CLIP, PIN HOLD
main47749-50090
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9015960603
main90159-60603
9017906349
main90179-06349
9046707146
main90467-07146
91674A1028
main91674-A1028
32 parts on this diagram · 1 diagram in section
