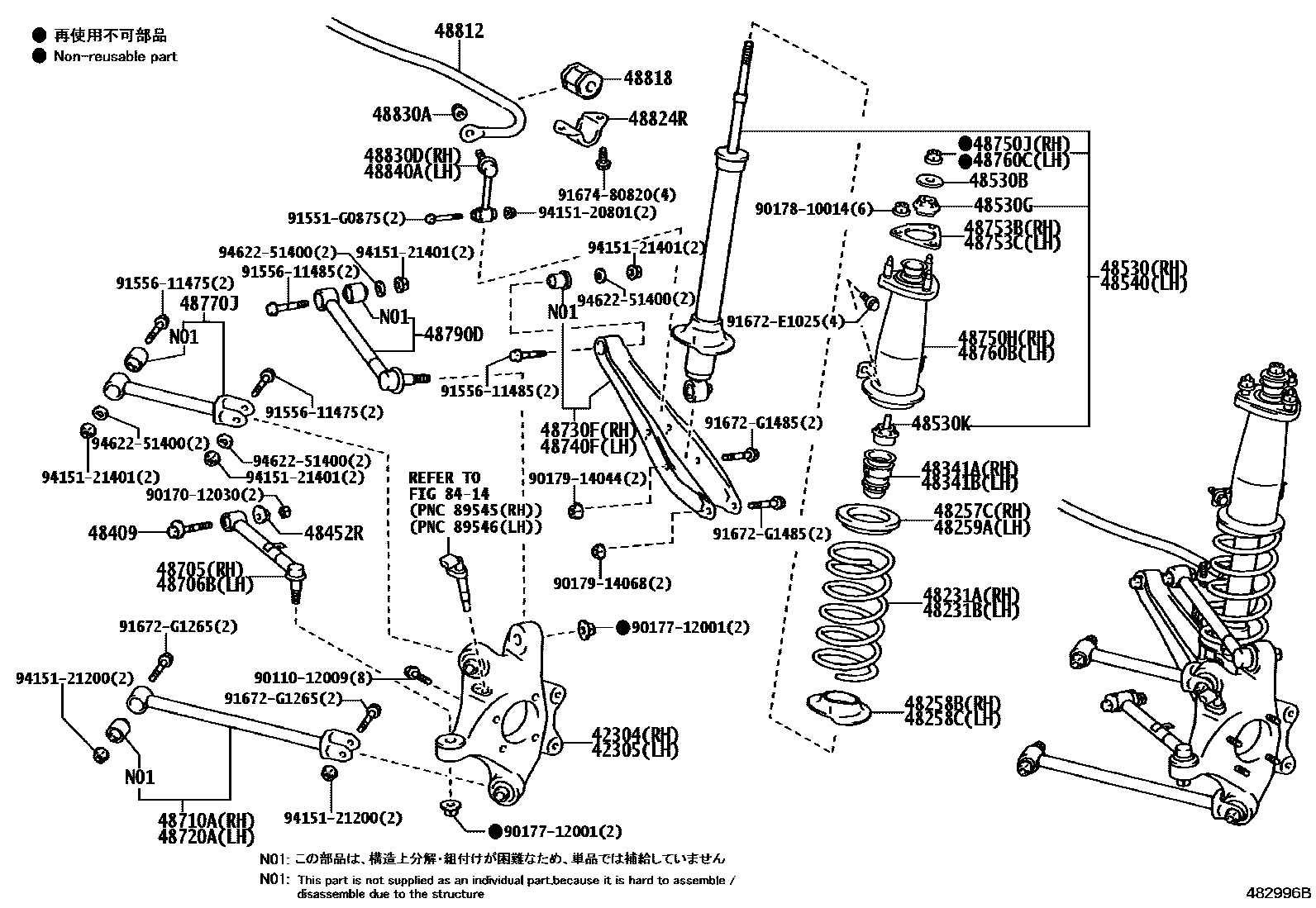

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48770JARM ASSY, UPPER CONTROL, REAR NO.1
48790DARM ASSY, UPPER CONTROL, REAR NO.2
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48824RBRACKET, STABILIZER(FOR REAR)
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
8414
9011012009
main90110-12009
9017012030
main90170-12030
9017712001
main90177-12001
9017810014
main90178-10014
9017914044
main90179-14044
9017914068
main90179-14068
91551G0875
main91551-G0875
9155611475
main91556-11475
9155611485
main91556-11485
91672E1025
main91672-E1025
91672G1265
main91672-G1265
91672G1485
main91672-G1485
9167480820
main91674-80820
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9462251400
main94622-51400
55 parts on this diagram · 1 diagram in section
