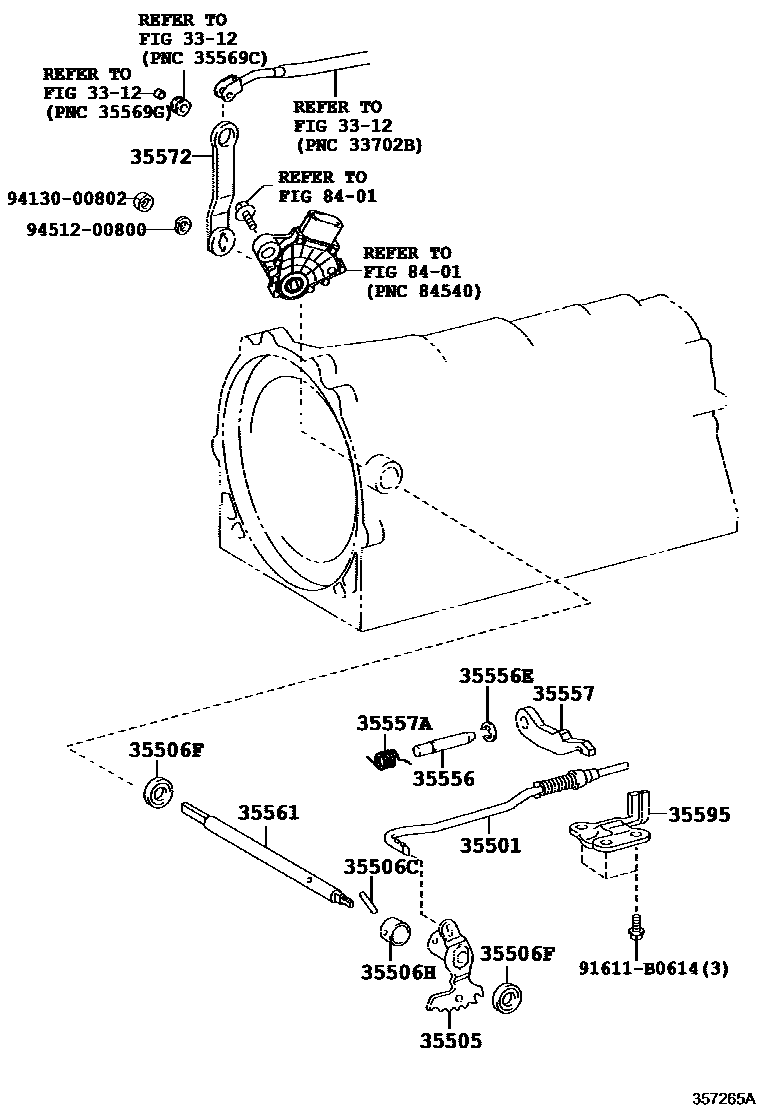

THROTTLE LINK & VALVE LEVER (ATM)

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

main35501-22030iGSE20200904-201407

main35501-30060iGSE20201407-201408

main35501-50010iGSE21201008-201408

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-53030iGSE21201008-201408

main35505-53040iGSE20200904-201408

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGSE2#200904-201408

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGSE2#200904-201408

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGSE2#200904-201408

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGSE2#200904-201408

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGSE2#200904-201408

35557PAWL, PARKING LOCK

main35557-22020iGSE20200904-201005

main35557-22030iGSE20201005-201407

main35557-30050iGSE20201407-201408

main35590-50010iGSE21201008-201408

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03130iGSE21201008-201408

main90949-03137iGSE20200904-201408

35561SHAFT, MANUAL VALVE LEVER

main35561-50020iGSE2#200904-201408

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iGSE2#200904-201408

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGSE2#200904-201408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
