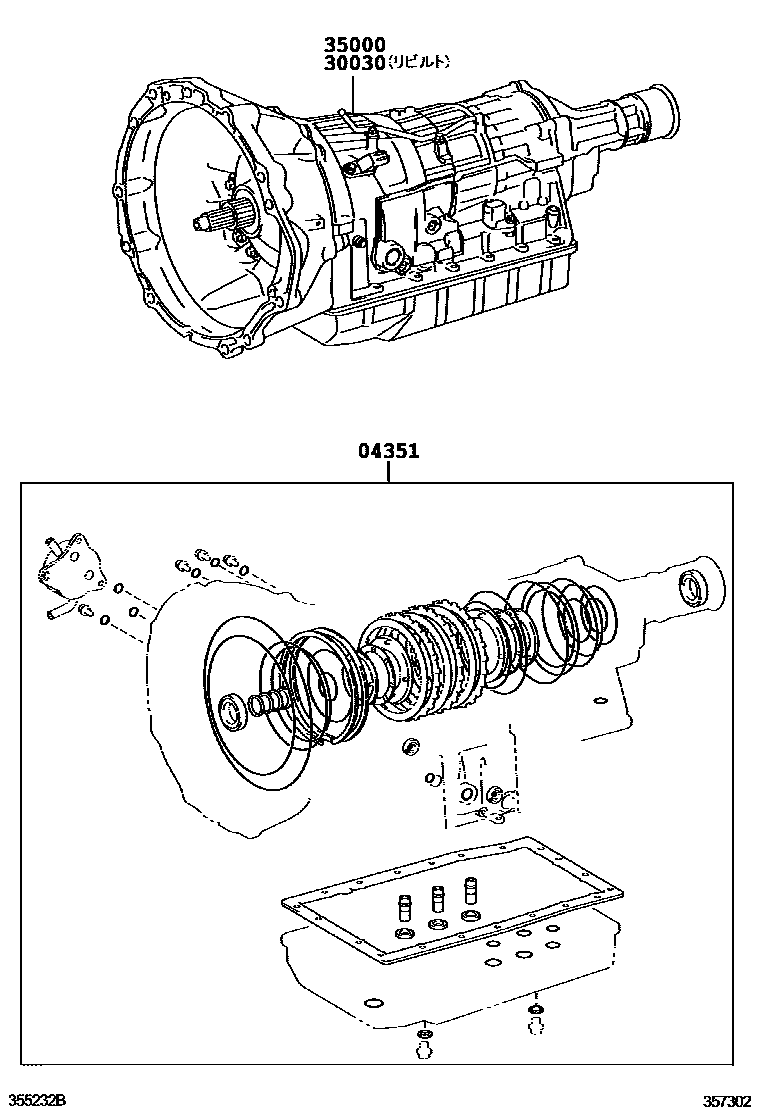

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A960E 0002 1A760E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30970iGSE20200904-201408

main04351-30990iGSE21201008-201408

30030TRANSMISSION ASSY, REBUILT

main30030-30A60iGSE21201008-201408

main30030-53110iGSE20200904-201407

main30030-53240iGSE20201407-201408

35000TRANSMISSION ASSY, AUTOMATIC

main35000-30A60iGSE21201008-201408

main35000-53110iGSE20200904-201406

main35000-53240iGSE20201407-201408

3 parts on this diagram · 2 diagrams in section
