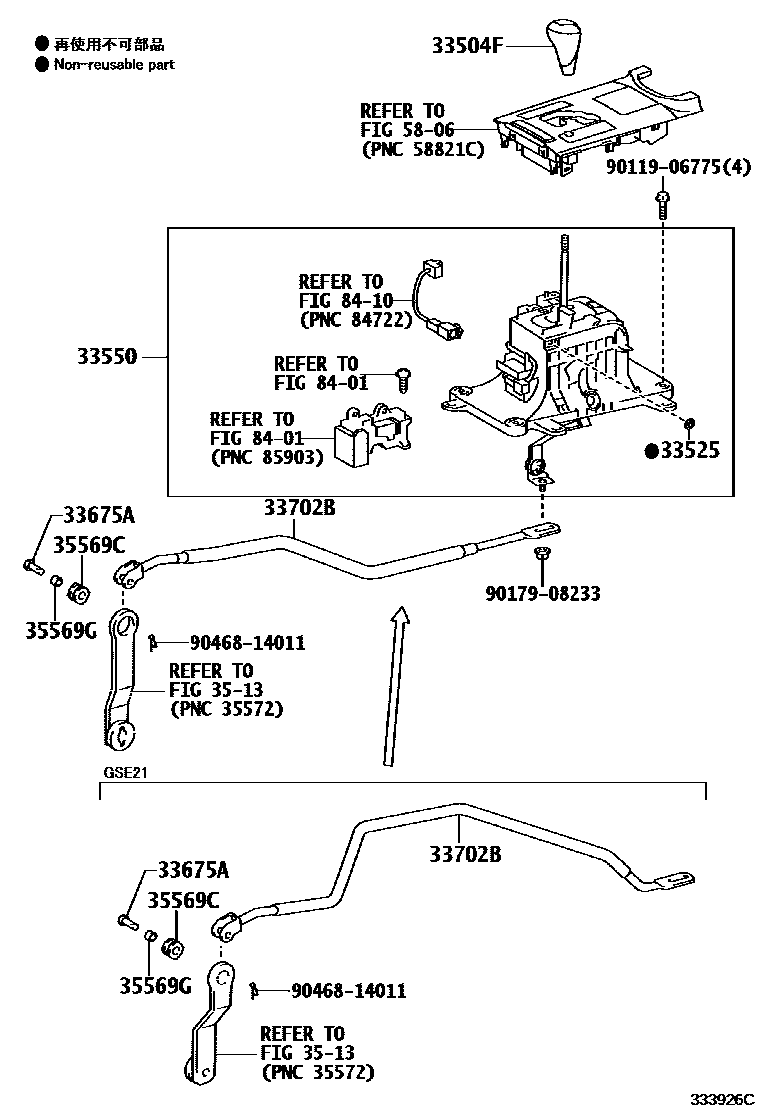

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30341-C2iGSE2#200904-201408

BLACK,TRIM0#,1#,2#,3#,4#

33525SUPPORT, SHIFT LEVER

main33525-50020iGSE2#200904-201408

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-53190iGSE2#200904-201408

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGSE2#200904-201408

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGSE20200904-201408

main33702-30580iGSE21201008-201408

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGSE2#200904-201408

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGSE2#200904-201408

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

14 parts on this diagram · 1 diagram in section
