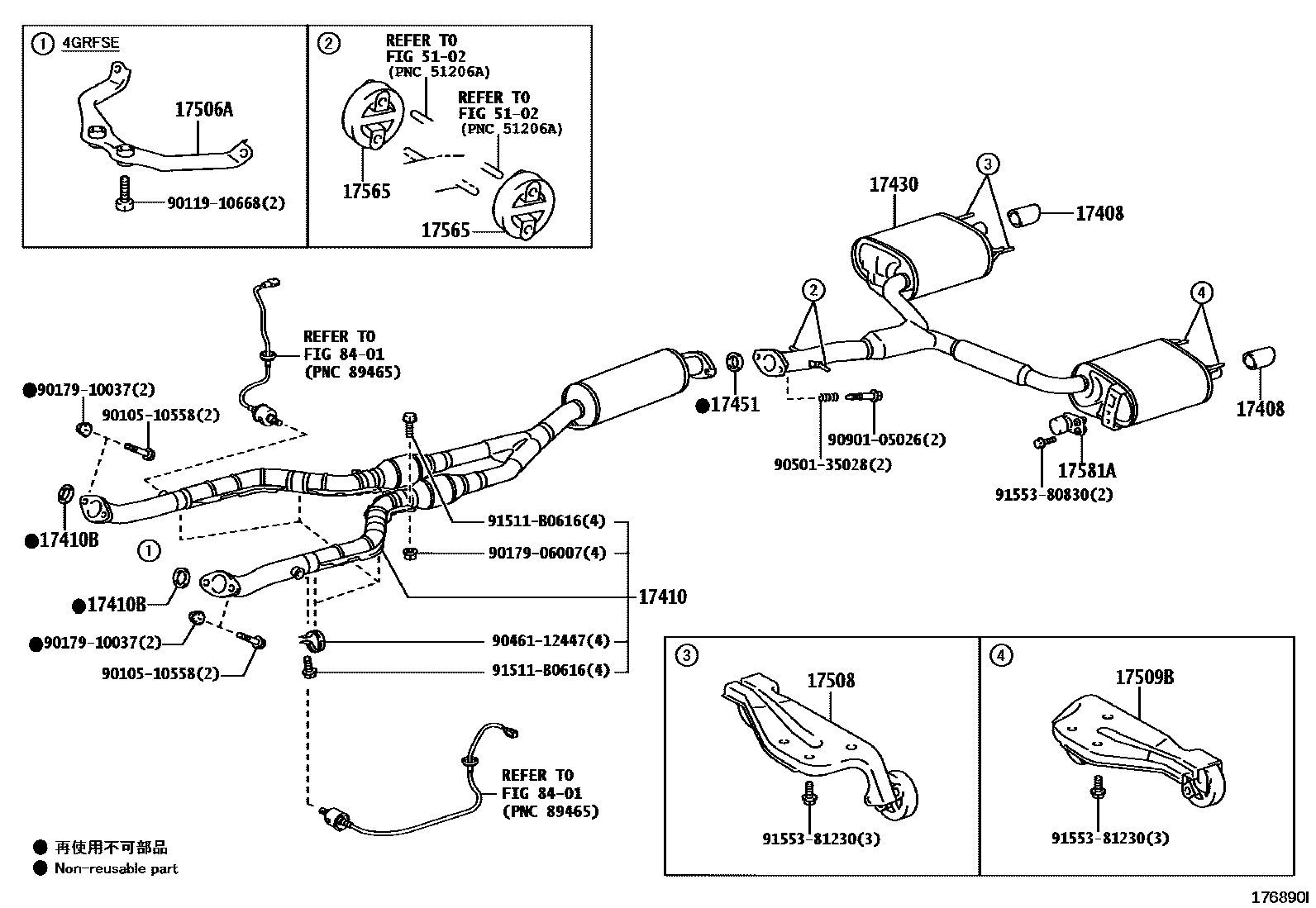

EXHAUST PIPE

0001 1 0003 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-31030×2i2GRFSE,4GRFSE..GSE2#200904-201408

17410PIPE ASSY, EXHAUST, FRONT

main17410-31570i4GRFSE..GSE20200904-201002

main17410-31571i4GRFSE..GSE20201003-201008

main17410-31B01i2GRFSE..GSE21201008-201101

main17410-31B02i2GRFSE..GSE21201102-201207

main17410-31C11i4GRFSE..GSE20201008-201101

main17410-31C12i4GRFSE..GSE20201102-201206

main17410-31G80i4GRFSE..GSE20201206-201208

main17410-31J10i2GRFSE..GSE21201207-201208

main17410-31J80i2GRFSE..GSE21201208-201408

main17410-31K00i4GRFSE..GSE20201208-201408

17410BGASKET, EXHAUST PIPE

main90917-06078×2i2GRFSE,4GRFSE..GSE2#200904-201408

17430PIPE ASSY, EXHAUST, TAIL

main17430-31840i4GRFSE..GSE20200904-201201

main17430-31841i4GRFSE..GSE20201202-201308

main17430-31850i2GRFSE..GSE21201008-201408

main17430-31861i4GRFSE..GSE20201308-201408

17451GASKET, EXHAUST PIPE

main17451-31011i2GRFSE,4GRFSE..GSE2#200904-201102

main17451-31012i2GRFSE,4GRFSE..GSE2#201103-201408

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i4GRFSE..GSE20200904-201408

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-31060i2GRFSE,4GRFSE..GSE2#200904-201101

main17508-31061i2GRFSE,4GRFSE..GSE2#201102-201408

17509BSUPPORT, EXHAUST PIPE NO.4

main17509-31030i2GRFSE,4GRFSE..GSE2#200904-201101

main17509-31031i2GRFSE,4GRFSE..GSE2#201102-201408

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010×2i2GRFSE,4GRFSE..GSE2#200904-201408

17581ADAMPER, EXHAUST PIPE

main17581-46120i2GRFSE,4GRFSE..GSE2#200904-201408

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155380830

main91553-80830

9155381230

main91553-81230

22 parts on this diagram · 2 diagrams in section
