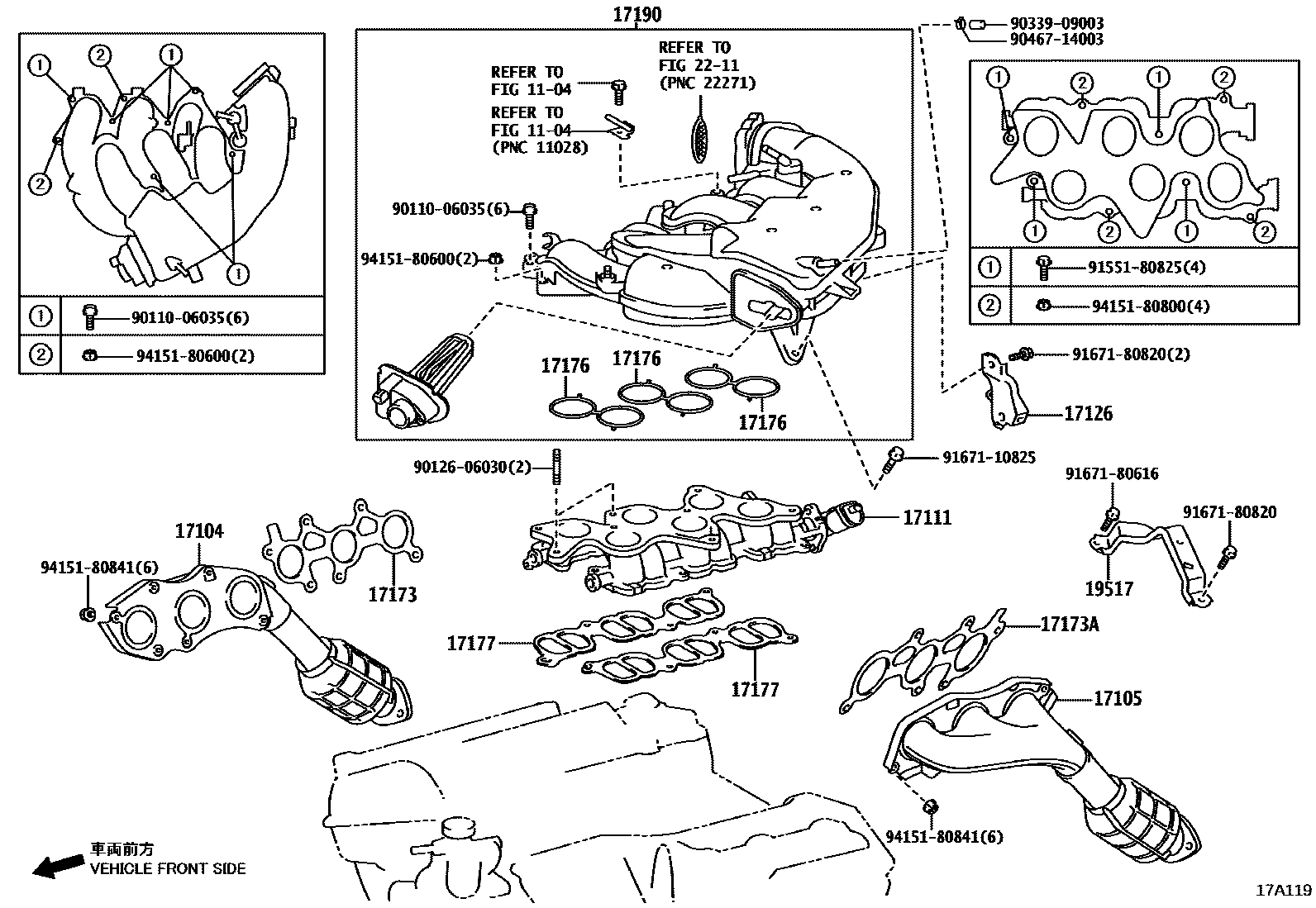

MANIFOLD

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31330i4GRFSE..GSE20200904-201008

main17140-31570i2GRFSE..GSE21201008-201208

main17140-31640i4GRFSE..GSE20201008-201208

main17140-31760i2GRFSE,4GRFSE..GSE2#201208-201408

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31030i4GRFSE..GSE20200904-201008

main17150-31570i2GRFSE..GSE21201008-201208

main17150-31640i4GRFSE..GSE20201008-201208

main17150-31760i2GRFSE,4GRFSE..GSE2#201208-201408

17111MANIFOLD, INTAKE

main17111-31170i2GRFSE..GSE21201008-201107

main17111-31171i2GRFSE..GSE21201107-201408

main17120-31020i4GRFSE..GSE20200904-201408

17126STAY, SURGE TANK, NO.2

main17126-31020i4GRFSE..GSE20200904-201408

main17126-31050i2GRFSE..GSE21201008-201408

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFSE,4GRFSE..GSE2#200904-201408

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i2GRFSE,4GRFSE..GSE2#200904-201408

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31050×3i4GRFSE..GSE20200904-201408

main17176-31060i2GRFSE..GSE21201008-201408

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020×2i4GRFSE..GSE20200904-201110

main17177-31021×2i4GRFSE..GSE20201110-201408

main17177-31060×2i2GRFSE..GSE21201008-201107

main17177-31061×2i2GRFSE..GSE21201107-201408

17190TANK ASSY, INTAKE AIR SURGE

main17190-31040i4GRFSE..GSE20200904-201408

main17190-31100i2GRFSE..GSE21201008-201408

19517BRACKET, IGNITION COIL COVER

main19517-31010i4GRFSE..GSE20200904-201408

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167110825

main91671-10825

9167180616

main91671-80616

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

23 parts on this diagram · 2 diagrams in section
