CRANKSHAFT & PISTON

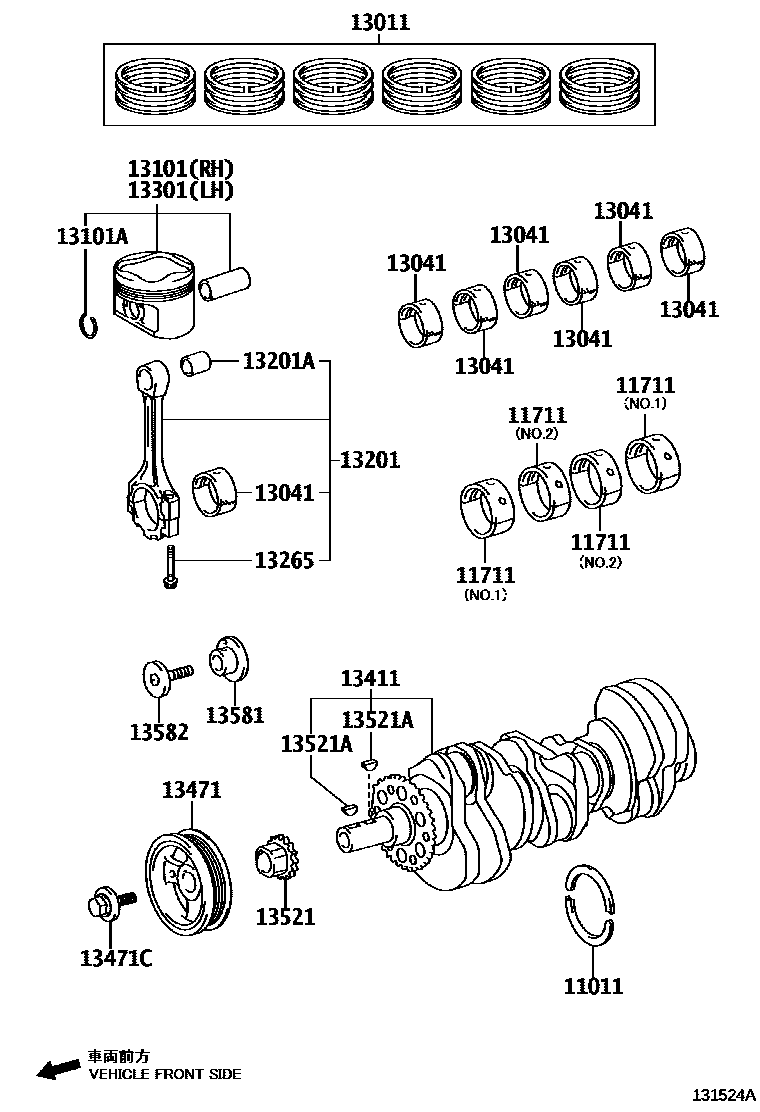

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-31060i200904-201408

11711BEARING, CRANKSHAFT

main11071-31031-01×2i200904-201408

main11071-31031-02×2i200904-201408

main11071-31031-03×2i200904-201408

main11071-31031-04×2i200904-201408

main11071-31031-05×2i200904-201408

main11071-31040-01×2i201008-201408

main11071-31040-02×2i201008-201408

main11071-31040-03×2i201008-201408

main11071-31040-04×2i201008-201408

main11071-31040-05×2i201008-201408

main11701-31061-01×2i200904-201408

main11701-31061-02×2i200904-201408

main11701-31061-03×2i200904-201408

main11701-31061-04×2i200904-201408

main11701-31061-05×2i200904-201408

main11701-31070-01×2i201008-201408

main11701-31070-02×2i201008-201408

main11701-31070-03×2i201008-201408

main11701-31070-04×2i201008-201408

main11701-31070-05×2i201008-201408

13011RING SET, PISTON

main13011-31120i200904-200909

main13011-31121i200909-201206

main13011-31122i201206-201209

main13011-31140i201008-201201

main13011-31141i201201-201303

main13011-31142i201303-201408

main13011-31220i201209-201408

13041BEARING, CONNECTING ROD

main13041-31060-01×6i200904-201408

MARK1

main13041-31060-02×6i200904-201408

MARK2

main13041-31060-03×6i200904-201408

MARK3

main13041-31060-04×6i200904-201408

MARK4

main13041-31080-01×6i201008-201408

MARK1

main13041-31080-02×6i201008-201408

MARK2

main13041-31080-03×6i201008-201408

MARK3

main13041-31080-04×6i201008-201408

MARK4

13101PISTON SUB-ASSY, W/PIN

main13101-31050-A0×3i200904-201408

main13101-31050-B0×3i200904-201408

main13101-31050-C0×3i200904-201408

main13101-31060-A0×3i201008-201110

main13101-31060-B0×3i201008-201110

main13101-31060-C0×3i201008-201110

main13101-31061-A0×3i201110-201403

main13101-31061-B0×3i201110-201403

main13101-31061-C0×3i201110-201403

main13101-31140-A0×3i201403-201408

main13101-31140-B0×3i201403-201408

main13101-31140-C0×3i201403-201408

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×12i200904-201408

13201ROD SUB-ASSY, CONNECTING

main13201-39095×6i200904-201005

main13201-39095-A0×6i201005-201408

main13201-39095-B0×6i201005-201408

main13201-39095-C0×6i201005-201408

main13201-39166×6i201008-201408

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144×6i200904-201408

13265BOLT, CONNECTING ROD

main13265-28010×12i200904-201408

main13265-31020×12i201008-201408

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31020-A0×3i200904-201408

main13301-31020-B0×3i200904-201408

main13301-31020-C0×3i200904-201408

main13301-31030-A0×3i201008-201110

main13301-31030-B0×3i201008-201110

main13301-31030-C0×3i201008-201110

main13301-31031-A0×3i201110-201403

main13301-31031-B0×3i201110-201403

main13301-31031-C0×3i201110-201403

main13301-31080-A0×3i201403-201408

main13301-31080-B0×3i201403-201408

main13301-31080-C0×3i201403-201408

13411CRANKSHAFT

main13401-31030i200904-201407

main13401-31031i201407-201408

main13401-31050i201008-201407

main13401-31051i201407-201408

13471PULLEY, CRANKSHAFT

main13470-31021i200904-201312

main13470-31022i201312-201408

main13470-31030i201008-201408

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i200904-201408

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31041i200904-201408

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i200904-201408

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i200904-201408

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i200904-201408
