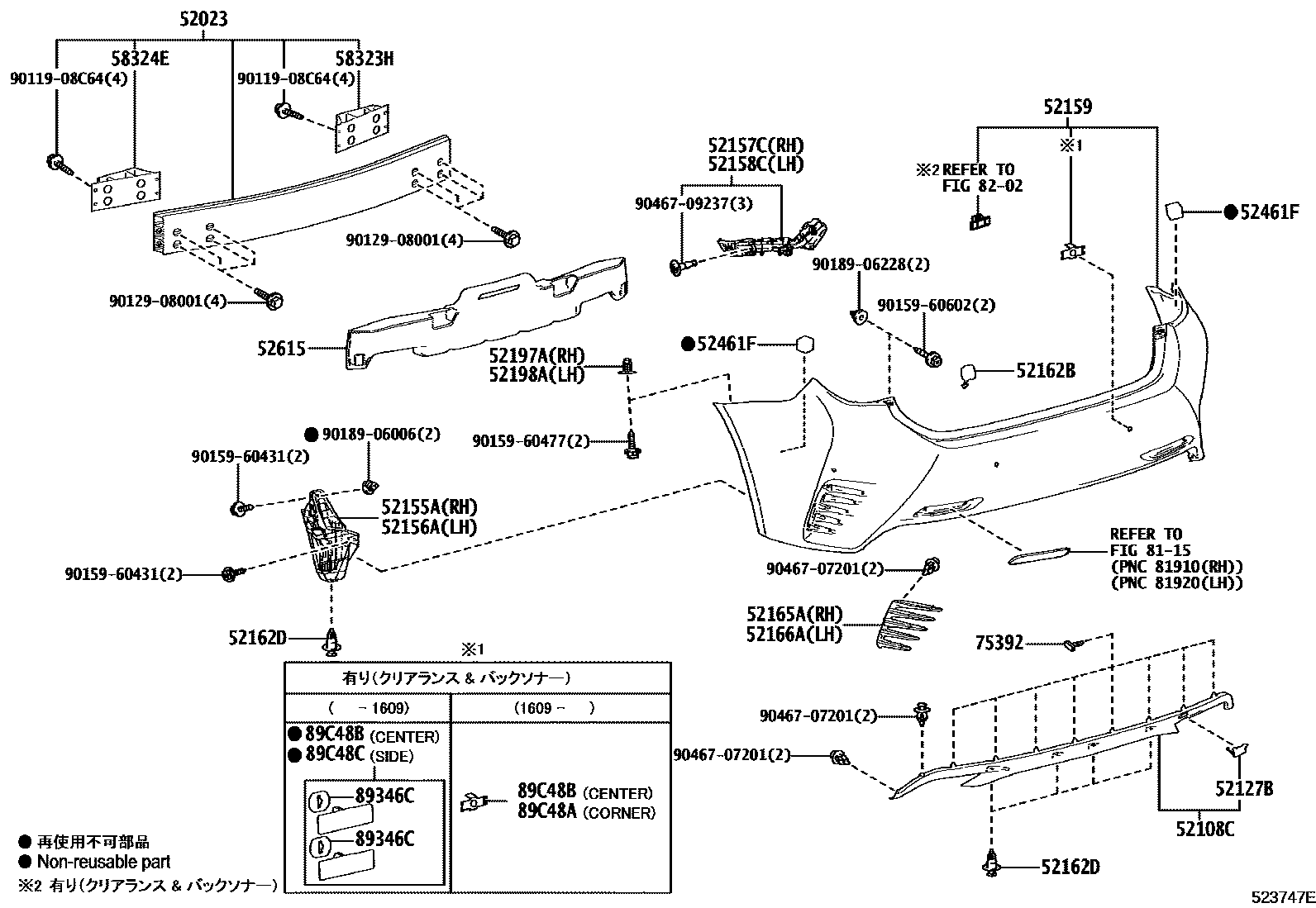

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER
52127BCOVER, REAR BUMPER HOLE, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
WHITE NOVA GF.,083
SONIC QUARTZ,085
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
RED,3T5
BLUE,8X1
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7 ,212
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
SONIC IRIDIUM,1L2
NAPLES YELLOW CONTRAST LA,5C1
HEAT BLUE CONTRAST LAYERI,8X1
CELESTIAL BLUE GF.,212 ,8Y6
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
BLACK,212
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
LAVA ORANGE CS.,4W7
HEAT BLUE CONTRAST LAYERI,1H9 ,8X1
52162BPLATE, REAR BUMPER, NO.1
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,1J7 ,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,223 ,3T5
ORANGE,4W7
NAPLES YELLOW,4W7 ,5C1
BLUE,8X1
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8
SONIC IRIDIUM,1L2
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
52162DPIECE, REAR BUMPER
52165ACOVER, REAR BUMPER, UPR RH
52166ACOVER, REAR BUMPER, UPR LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52461FPAD, REAR BUMPER
52615ABSORBER, REAR BUMPER ENERGY
58323HREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324EREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
75392RETAINER, OUTSIDE MOULDING
8115REFLEX REFLECTOR
8202WIRING & CLAMP
89346CADJUSTER, ULTRASONIC SENSOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
9011908C64
main90119-08C64
9012908001
main90129-08001
9015960431
main90159-60431
9015960477
main90159-60477
9015960602
main90159-60602
9018906006
main90189-06006
9018906228
main90189-06228
9046707201
main90467-07201
9046709237
main90467-09237
34 parts on this diagram · 2 diagrams in section
