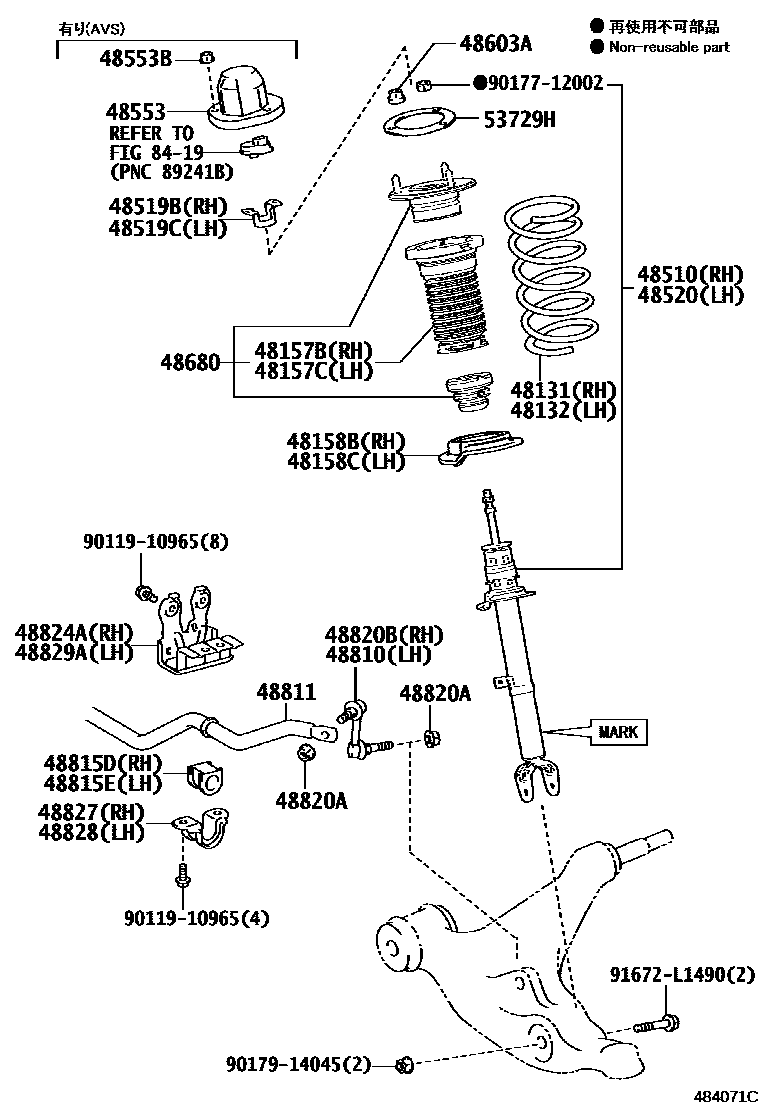

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-24610iASC10,GSC10201409-202001

sub48131-24611

main48131-24611iASC10,GSC10202002

main48131-24630iAVC10201409-202001

sub48131-24631

main48131-24631iAVC10202002

48132SPRING, FRONT COIL, LH

main48131-24610iGSC10201409-202001

sub48131-24611

main48131-24611iASC10,GSC10202002

main48131-24630iAVC10201409-202001

sub48131-24631

main48131-24631iAVC10202002

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-30090iAVC10,GSC10201409-201810

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-30090iASC10,AVC10,GSC10201409-201810

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iAVC10,GSC10201409-201810

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iAVC10,GSC10201409-201810

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80722iAVC10,GSC10201409-201801

sub48510-80A05

main48510-80A05iASC10,AVC10,GSC10201801-201810

main48510-80A63iASC10,AVC10,GSC10201810-202210

main48510-80C21iASC10,AVC10,GSC10202210

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-30030iASC10,AVC10,GSC10201810

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-30030iASC10,AVC10,GSC10201810

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80406iAVC10,GSC10201409-201801

sub48520-80571

main48520-80571iASC10,AVC10,GSC10201801-201810

main48520-80623iASC10,AVC10,GSC10201810-202210

main48520-80771iASC10,AVC10,GSC10202210

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100iASC10,AVC10,GSC10201810

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174iASC10,AVC10,GSC10201810

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014iAVC10,GSC10201409-201810

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-24090iAVC10,GSC10201409-201810

main48680-24100iASC10,AVC10,GSC10201810-202301

main48680-53110iASC10,AVC10,GSC10202301

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30090iAVC10,GSC10201409-201810

48811BAR, STABILIZER, FRONT

main48811-24140iAVC10,GSC10201409-201711

main48811-30840iASC10,AVC10,GSC10201711-201810

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-24100iAVC10,GSC10201409-201810

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-24100iAVC10,GSC10201409-201810

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241iAVC10,GSC10201409-201810

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30110iAVC10,GSC10201409-201810

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30130iAVC10,GSC10201409-201810

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30150iAVC10,GSC10201409-201810

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30150iAVC10,GSC10201409-201810

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30130iAVC10,GSC10201409-201810

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020iAVC10,GSC10201409-201810

8419

9011910965

main90119-10965

9017712002

main90177-12002

9017914045

main90179-14045

91672L1490

main91672-L1490

30 parts on this diagram · 1 diagram in section
