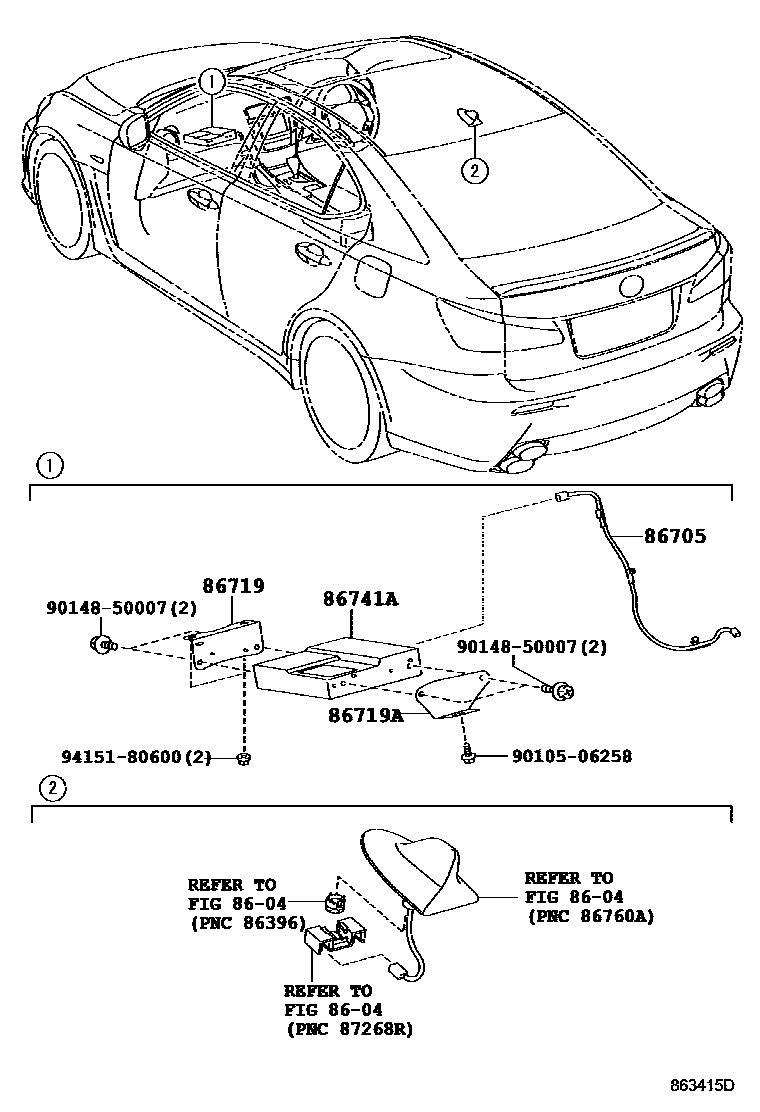

TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

8604ANTENNA

→ Go to FIG 86-04

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-53020iUSE20200712-200901

main86705-53090iUSE20200902-200908

86719BRACKET, TELEPHONE

main86719-30250iUSE20201208

86719ABRACKET, TELEPHONE NO.1

main86719-53010iUSE20200712-200908

main86719-53060iUSE20200908-201208

86741ATRANSCEIVER, TELEMATICS

main86741-30011iUSE20200712-200904

main86741-30040iUSE20200908-201201

main86741-30041iUSE20201202-201208

main86741-30110iUSE20201208-201210

main86741-30111iUSE20201211-201408

main86741-53010iUSE20200904-200908

9010506258

main90105-06258

9014850007

main90148-50007

9415180600

main94151-80600

8 parts on this diagram · 3 diagrams in section
