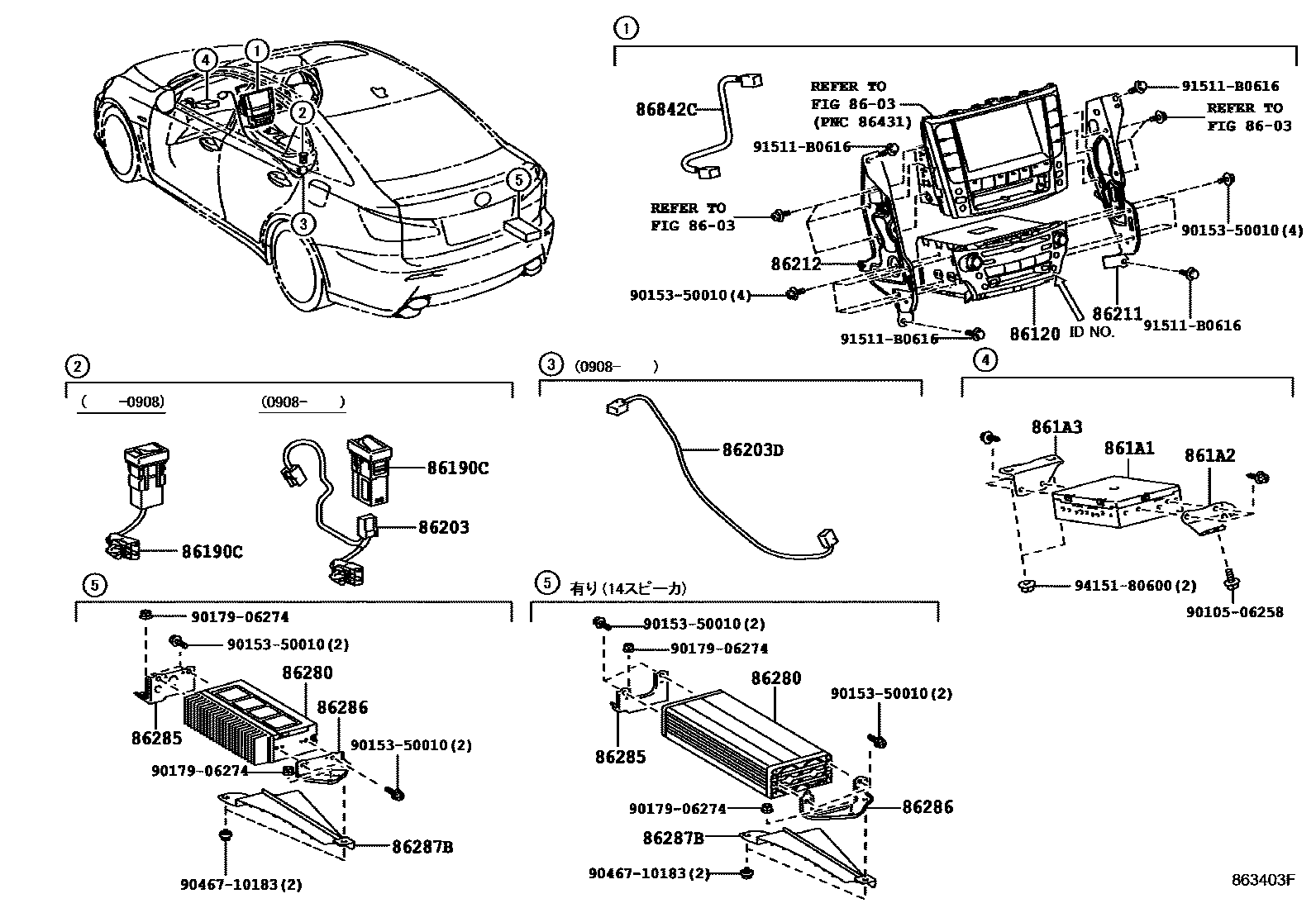

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-53280supersedes 86120-53270iUSE20200712-200808

main86120-53860supersedes 86120-53850iUSE20200808-200908

main86120-53D40supersedes 86120-53D30iUSE20200908-201208

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53020iUSE20200712-200808

main86190-53030iUSE20200808-200908

main86190-53040iUSE20200908-201408

861A1COMPUTER, MULTI-MEDIA INTERFACE

main861A0-77010iUSE20200908-201107

861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-53020iUSE20200908-201208

861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-53020iUSE20200908-201208

86203WIRE, RADIO

main86203-53010iUSE20200908-201408

86203DWIRE, STEREO COMPONENT, NO.1

main86203-53050iUSE20200908-201208

main86203-53200iUSE20201208-201408

86211BRACKET, RADIO, NO.1

main86211-53020iUSE20200712-200808

main86211-53030iUSE20200808-201208

main86211-53070iUSE20201208-201408

86212BRACKET, RADIO, NO.2

main86212-53020iUSE20200712-200808

main86212-53030iUSE20200808-201208

main86212-53070iUSE20201208-201408

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W550supersedes 86280-53110iUSE20200712-200908

main86280-0W750supersedes 86280-53150iUSE20200908-201208

main86280-0WB00supersedes 86280-53210iUSE20201208

86285BRACKET, AMPLIFIER, NO.1

main86285-53060iUSE20200908

main86285-53050supersedes 86285-53040iUSE20200712-200908

main86285-53070iUSE20200908-201208

86286BRACKET, AMPLIFIER, NO.2

main86286-53090iUSE20200908

main86286-53050supersedes 86286-53040iUSE20200712-200908

main86286-53080iUSE20200908-201208

86287BCOVER, AMPLIFIER

main86287-53010iUSE20200712

86842CWIRE, NAVIGATION

main86842-30170iUSE20200712-200908

9010506258

main90105-06258

9015350010

main90153-50010

9017906274

main90179-06274

9046710183

main90467-10183

91511B0616

main91511-B0616

9415180600

main94151-80600

21 parts on this diagram · 3 diagrams in section
