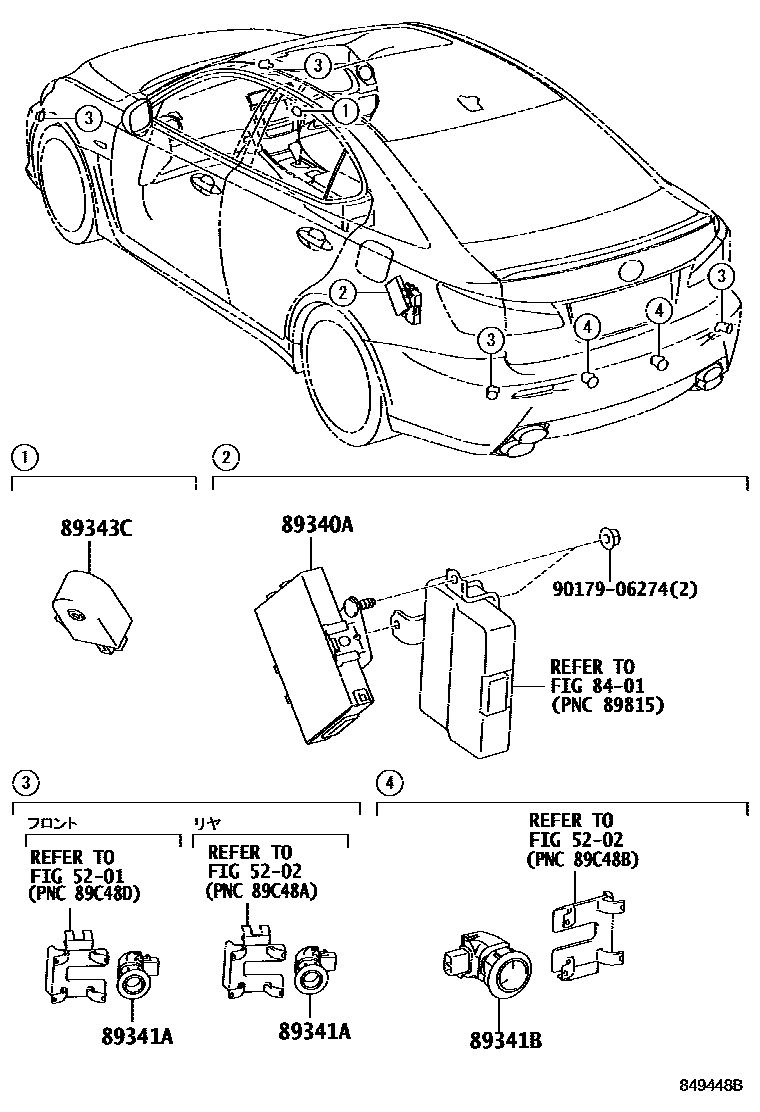

CLEARANCE & BACK SONAR

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-53020iUSE20200712-201008

main89340-53040iUSE20201008-201408

89341ASENSOR, ULTRASONIC, NO.1

main89341-30010-A5×4iUSE20200712-201008

main89341-30010-B4×4iUSE20200712-201008

main89341-30010-B5×4iUSE20200712-201008

main89341-30010-C3×4iUSE20200712-201008

main89341-30010-D2×4iUSE20200712-201008

main89341-30010-J8×4iUSE20200712-201008

main89341-64010-A3×4iUSE20201008-201208

main89341-64010-A4×4iUSE20201208-201408

main89341-64010-B5×4iUSE20201108-201408

main89341-64010-B6×4iUSE20201008-201108

main89341-64010-B7×4iUSE20201008-201208

main89341-64010-C2×4iUSE20201008-201408

main89341-64010-C3×4iUSE20201008-201408

main89341-64010-D1×4iUSE20201008-201408

main89341-64010-J3×4iUSE20201008-201408

main89341-64010-P1×4iUSE20201208-201408

89341BSENSOR, ULTRASONIC, NO.2

main89341-30021-A4×2iUSE20200712-201008

main89341-30021-B3×2iUSE20200712-201008

main89341-30021-B4×2iUSE20200712-201008

main89341-30021-C1×2iUSE20200712-201008

main89341-30021-D1×2iUSE20200712-201008

main89341-30021-J7×2iUSE20200712-201008

main89341-64010-A3×2iUSE20201008-201208

main89341-64010-A4×2iUSE20201208-201408

main89341-64010-B5×2iUSE20201108-201408

main89341-64010-B6×2iUSE20201008-201108

main89341-64010-B7×2iUSE20201008-201208

main89341-64010-C2×2iUSE20201008-201408

main89341-64010-C3×2iUSE20201008-201408

main89341-64010-D1×2iUSE20201008-201408

main89341-64010-J3×2iUSE20201008-201408

main89341-64010-P1×2iUSE20201208-201408

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iUSE20200712

9017906274

main90179-06274

8 parts on this diagram · 2 diagrams in section
