WIRING & CLAMP

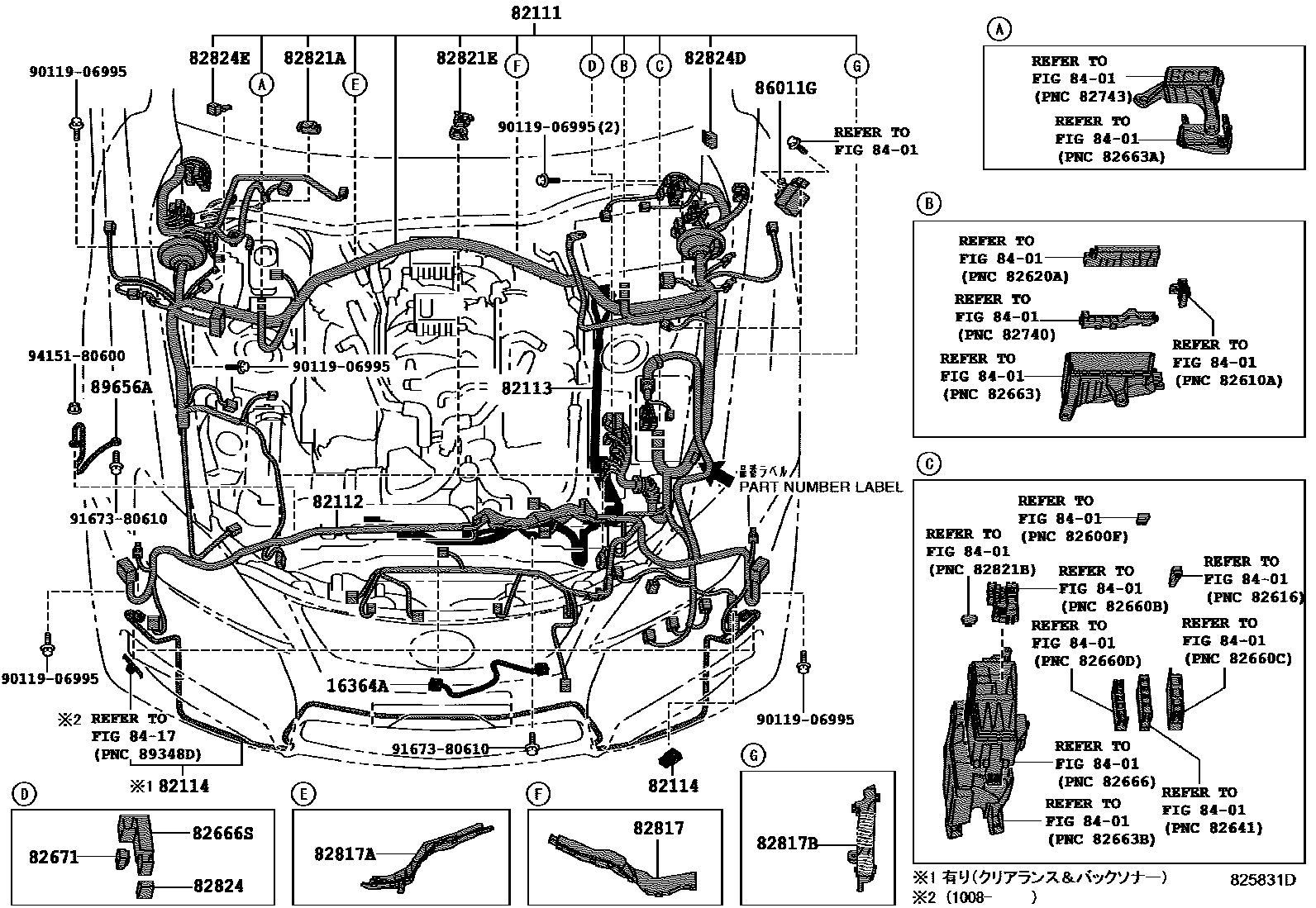

Parts diagram

16364AWIRE, COOLING FAN

main16364-38020i200712-201408

82111WIRE, ENGINE ROOM MAIN

main82111-53D10i200712-200908

main82111-53D11i200908-201008

main82111-53D12i201008-201109

main82111-53D13i201110-201208

main82111-53D14i201208

82112WIRE, ENGINE ROOM, NO.2

main82112-53190supersedes 82112-53180i200712-201008

main82112-53191supersedes 82112-53181i201008

82113WIRE, ENGINE ROOM, NO.3

main82113-53070i200712

82114WIRE, ENGINE ROOM, NO.4

main82114-53040i200712-201408

main82114-53030i200712-201008

main82114-53031i201008-201408

82666SHOLDER, CONNECTOR NO.13

main82666-30A70i200712

82671BLOCK, JUNCTION

main82671-30340i200712

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-53270i200712

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-53280i200712

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-53290i200712

82821ACOVER, CONNECTOR

main82821-22120×2i200712

82821ECOVER, CONNECTOR

main82821-30650×2i200712

82824CONNECTOR, WIRING HARNESS

main82824-28180i200712

82824DCONNECTOR, WIRING HARNESS

main82824-30130i200712

82824ECONNECTOR, WIRING HARNESS

main82824-48020i200712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

86011GCONDENSER

main82930-30040i201111

main86516-30470i200712-201111

89656AWIRE, POWER STEERING EARTH

main89656-53020i200712

9011906995

main90119-06995

9167380610

main91673-80610

9415180600

main94151-80600

22 parts on this diagram · 11 diagrams in section
