SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53010-C0iUSE20200712-200807

BLACK,TRIM2#

main73023-53020-C0iUSE20200808-201408

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53010-C0iUSE20200712-200807

BLACK,TRIM2#

main73024-53020-C0iUSE20200808-201408

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010×2iUSE20200712

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-53140-C4iUSE20200903-200907

main73210-53160-C4iUSE20200903-200907

main73210-53370-C1supersedes 73210-53350-C1iUSE20200908-201302

main73210-53371-C1supersedes 73210-53352-C1iUSE20201303-201408

73219STOPPER, TONGUE PLATE

main73219-33010iUSE20200712

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-53130-C4iUSE20200903-200907

main73220-53140-C4supersedes 73220-53272-C1iUSE20200712-200907

main73220-53280-C1supersedes 73220-53270-C1iUSE20200908-201302

main73220-53281-C1supersedes 73220-53272-C1iUSE20201303-201408

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-53010iUSE20200712

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-53010iUSE20200712

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53130-C0iUSE20200712-201408

BLACK,TRIM2#

main73230-53171-C0iUSE20200712-200908

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-C0iUSE20200712-201408

BLACK,TRIM2#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-52010-C0iUSE20200712-201408

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-53140-C0iUSE20200712-201408

BLACK,TRIM2#

main73240-53031-C0iUSE20200712-200908

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

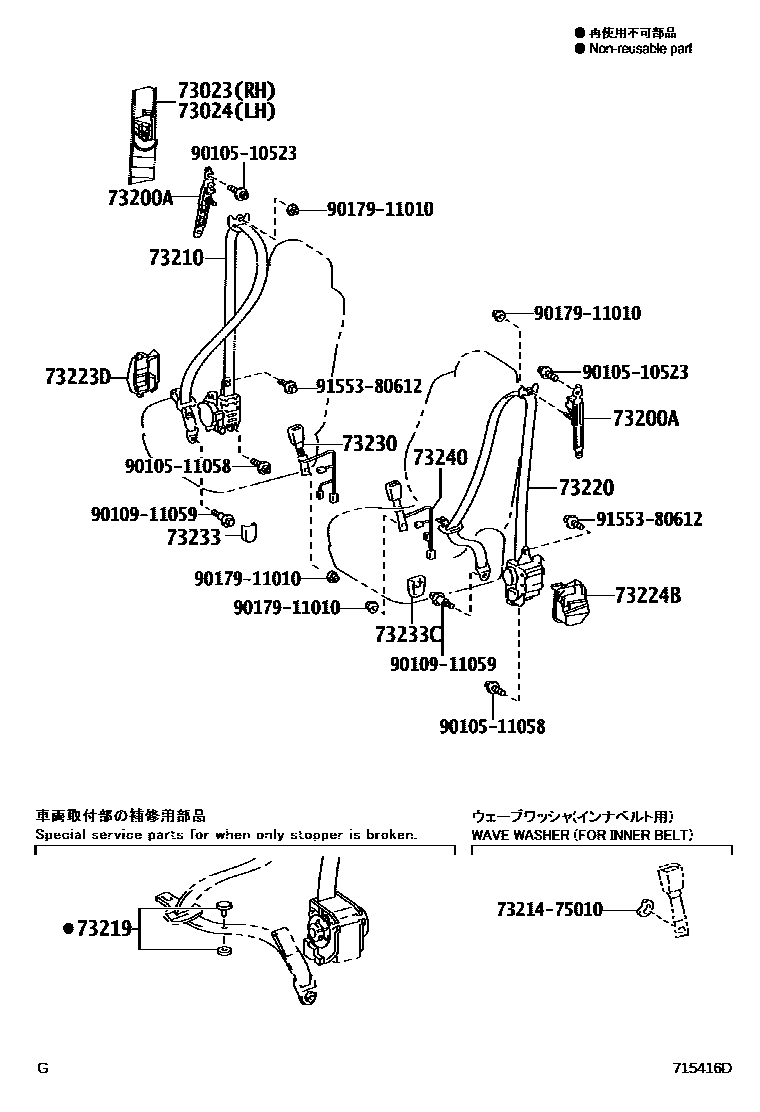

18 parts on this diagram · 2 diagrams in section
