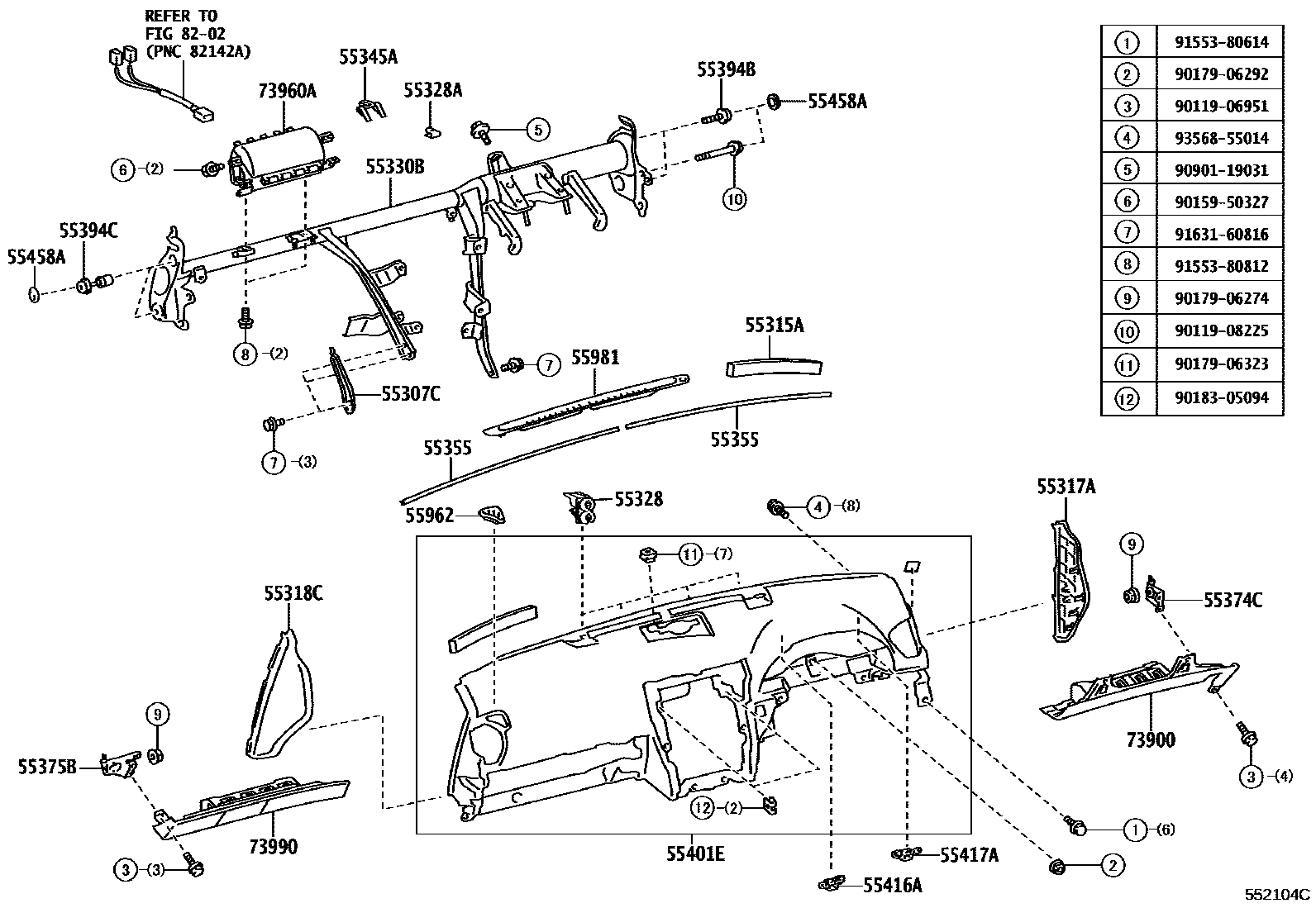

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1��������� 0005 1����� 0006 1����������

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55352-53040iUSE20200712

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53010iUSE20200712-200801

55317APANEL, INSTRUMENT SIDE, RH

main55317-53070-C0iUSE20200712-201408

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53040-C0iUSE20200712-201408

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140iUSE20200712

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-48110iUSE20201010

main55328-50170iUSE20200712-201009

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53051iUSE20200712-200908

main55330-53250iUSE20200908

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-30060iUSE20200712

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30060iUSE20200712-200804

main55355-30100iUSE20200804-201408

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-53010iUSE20200712

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-53040iUSE20200712

55394BBOLT, INSTRUMENT PANEL

main55394-50010iUSE20200712

55394CBOLT, INSTRUMENT PANEL

main55394-33041iUSE20200808

main55394-51011iUSE20200712-200807

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-53903iUSE20200712-200801

main55400-53905-C0iUSE20200801

BLACK,TRIM2#

55416ARETAINER, METER HOOD, NO.1

main55416-30150iUSE20200712

55417ARETAINER, METER HOOD, NO.2

main55417-30070iUSE20200712

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iUSE20200712

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53010-C0iUSE20200712-201408

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53010-C0iUSE20200712-201408

BLACK,TRIM2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-53010-C0iUSE20200712-201408

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53010iUSE20200712-201309

main73960-53011iUSE20201310

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-53010-C0iUSE20200712-201408

BLACK,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906951

main90119-06951

9011908225

main90119-08225

9015950327

main90159-50327

9017906274

main90179-06274

9017906292

main90179-06292

9017906323

main90179-06323

9018305094

main90183-05094

9090119031

main90901-19031

9155380614

main91553-80614

9155380812

main91553-80812

9163160816

main91631-60816

9356855014

main93568-55014

35 parts on this diagram · 6 diagrams in section
