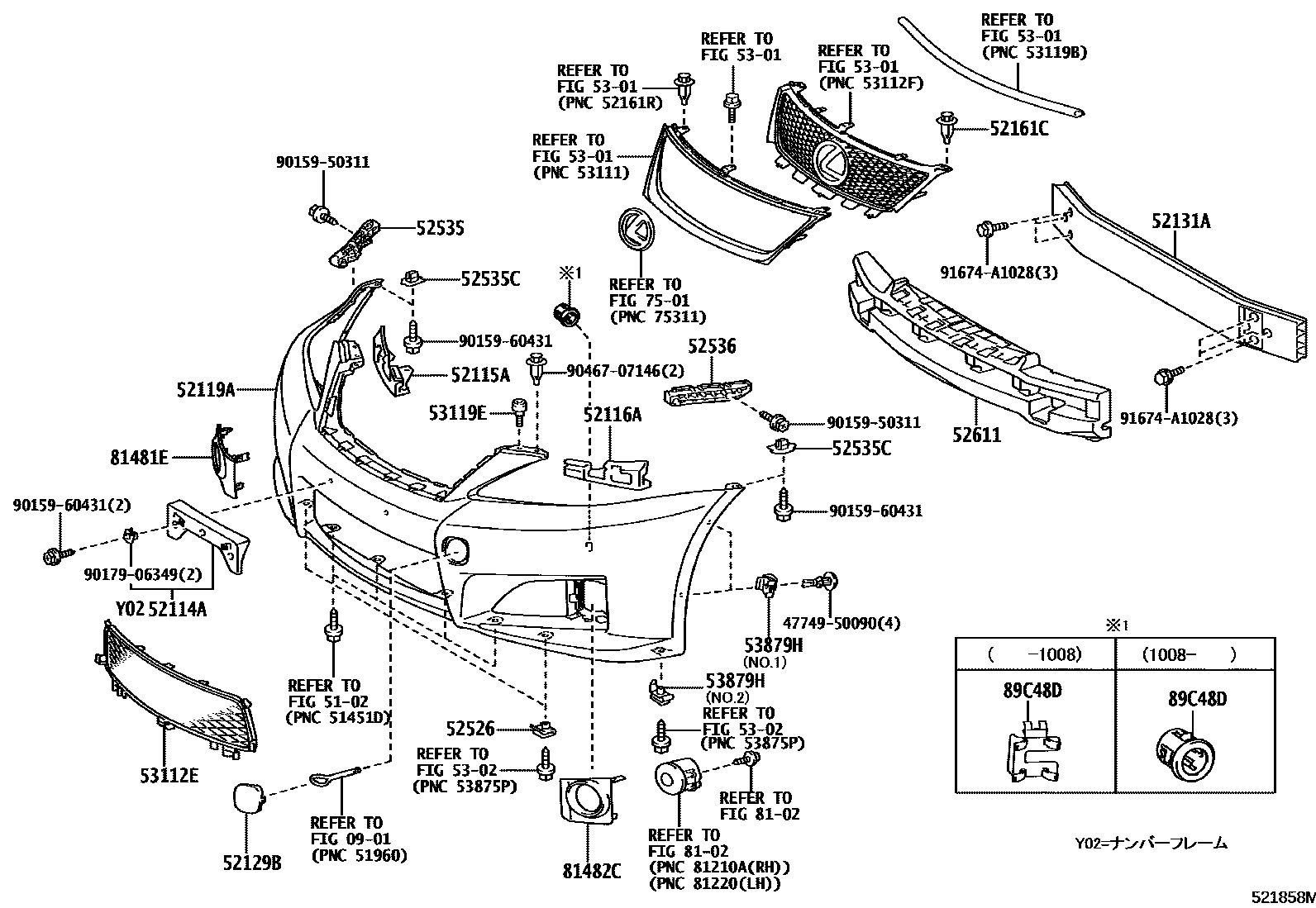

FRONT BUMPER & BUMPER STAY
0901STANDARD TOOL
5102SUSPENSION CROSSMEMBER & UNDER COVER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
52129BCOVER, FRONT BUMPER, LOWER
WHITE PEARL CS.,077
WHITE NOVA GF.,083
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME. CC.,8U1
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52526RETAINER, FRONT BUMPER, LOWER SIDE
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
53119EPROTECTOR, RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
4774950090CLIP, PIN HOLD
main47749-50090
9015950311
main90159-50311
9015960431
main90159-60431
9017906349
main90179-06349
9046707146
main90467-07146
91674A1028
main91674-A1028
30 parts on this diagram · 1 diagram in section
