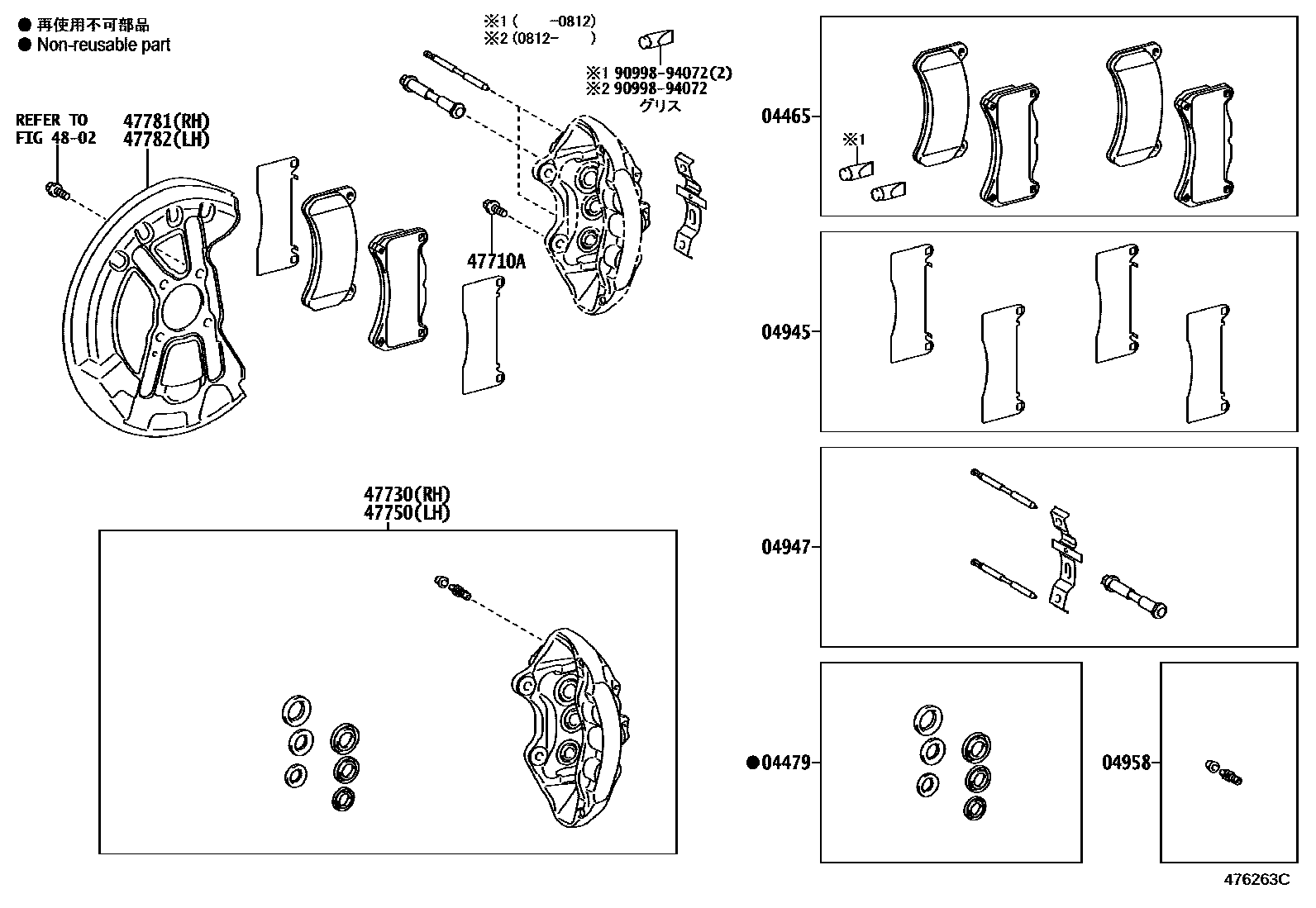

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W120iUSE20200712-201408

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0W010×2iUSE20200712

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0W010iUSE20200712

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0W010×2iUSE20200712

04958BLEEDER KIT, DISC BRAKE, FRONT

main04958-0W010×2iUSE20200712

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415×4iUSE20201111-201408

main91552-K1240×4iUSE20200712-201111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0W030iUSE20200712

main47730-0W120iUSE20201309

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0W030iUSE20200712

main47750-0W120iUSE20201309

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-53050iUSE20200712-201408

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-53050iUSE20200712-201408

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9099894072

main90998-94072

12 parts on this diagram · 1 diagram in section
