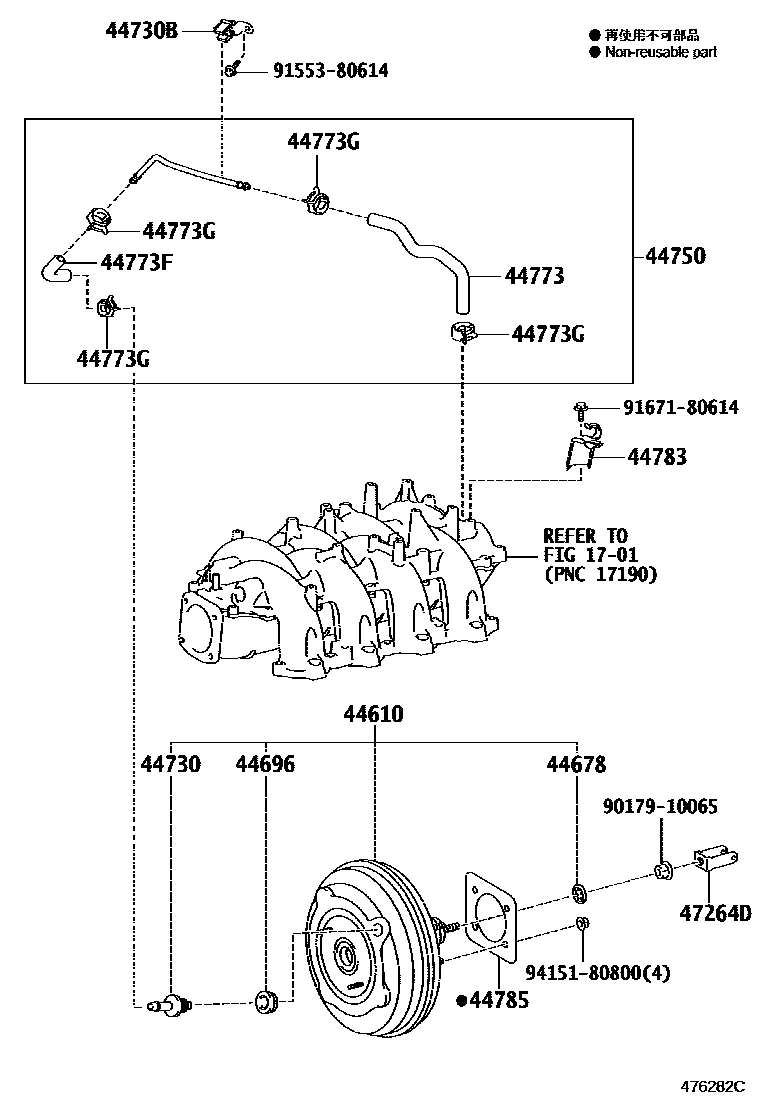

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-53330iUSE20200712-201408

44678RETAINER, BOOSTER AIR CLEANER

main44678-2B440iUSE20200712-201408

44696GROMMET, CHECK VALVE

main90480-24015iUSE20200712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iUSE20200712

44730BCLAMP, VACUUM HOSE

main44783-53060iUSE20200712

44750HOSE ASSY, VACUUM

main44750-53190iUSE20200712

44773HOSE, VACUUM, NO.2

main44773-53100iUSE20200712

44773FHOSE, UNION TO CHECK VALVE

main44773-53080iUSE20200712

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500×4iUSE20200712

44783CLAMP, VACUUM HOSE

main44783-53040iUSE20200712

44785GASKET, BRAKE BOOSTER

main44785-47010iUSE20200712

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iUSE20200712

9017910065

main90179-10065

9155380614

main91553-80614

9167180614

main91671-80614

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
