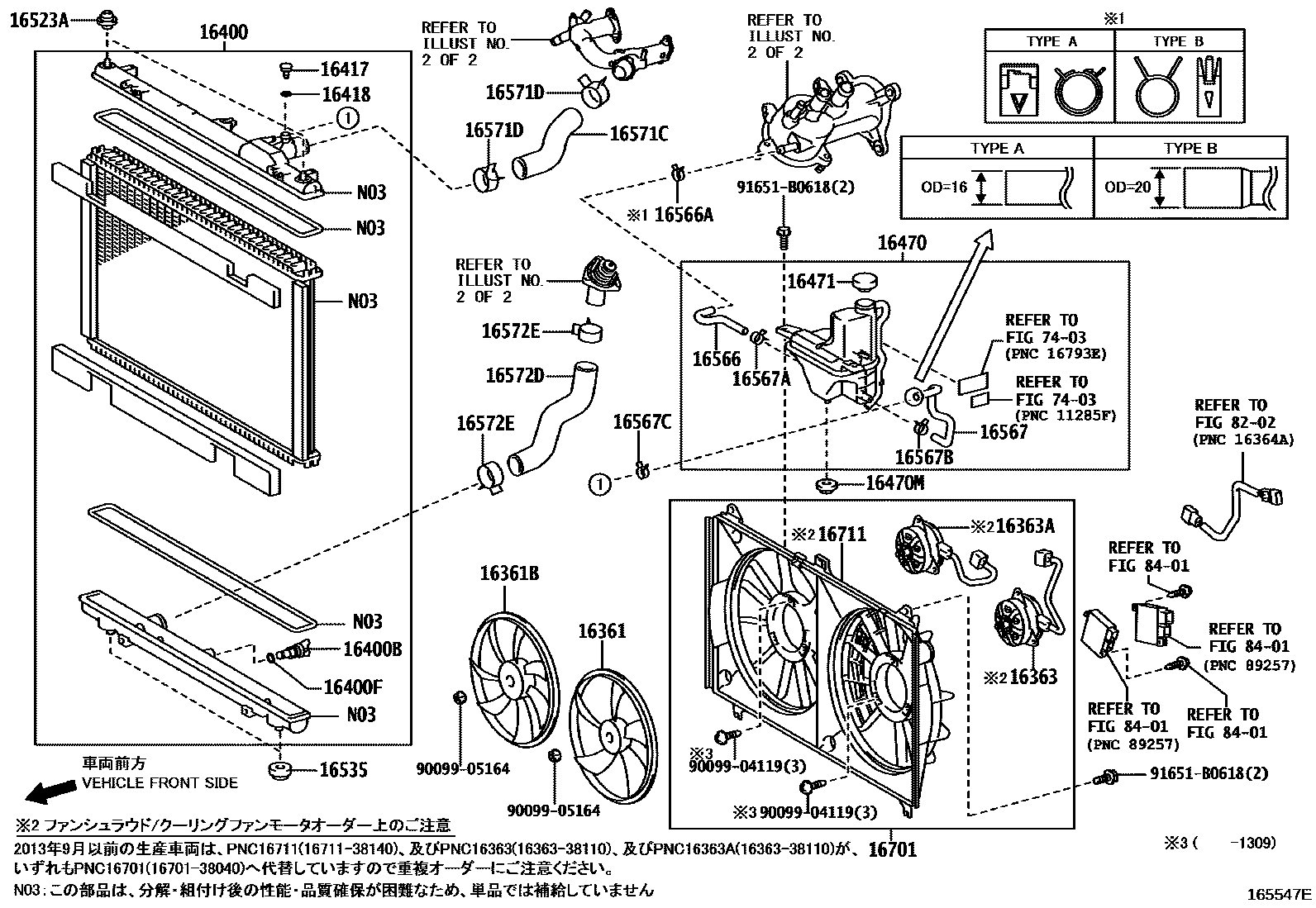

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
sub16701-38040
16363AMOTOR, COOLING FAN, NO.2
sub16701-38040
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
sub16475-28140
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16701SHROUD SUB-ASSY, FAN
16711SHROUD, FAN
sub16701-38040
7403
8202
8401
9009904119
main90099-04119
9009905164
main90099-05164
91651B0618
main91651-B0618
32 parts on this diagram · 2 diagrams in section
