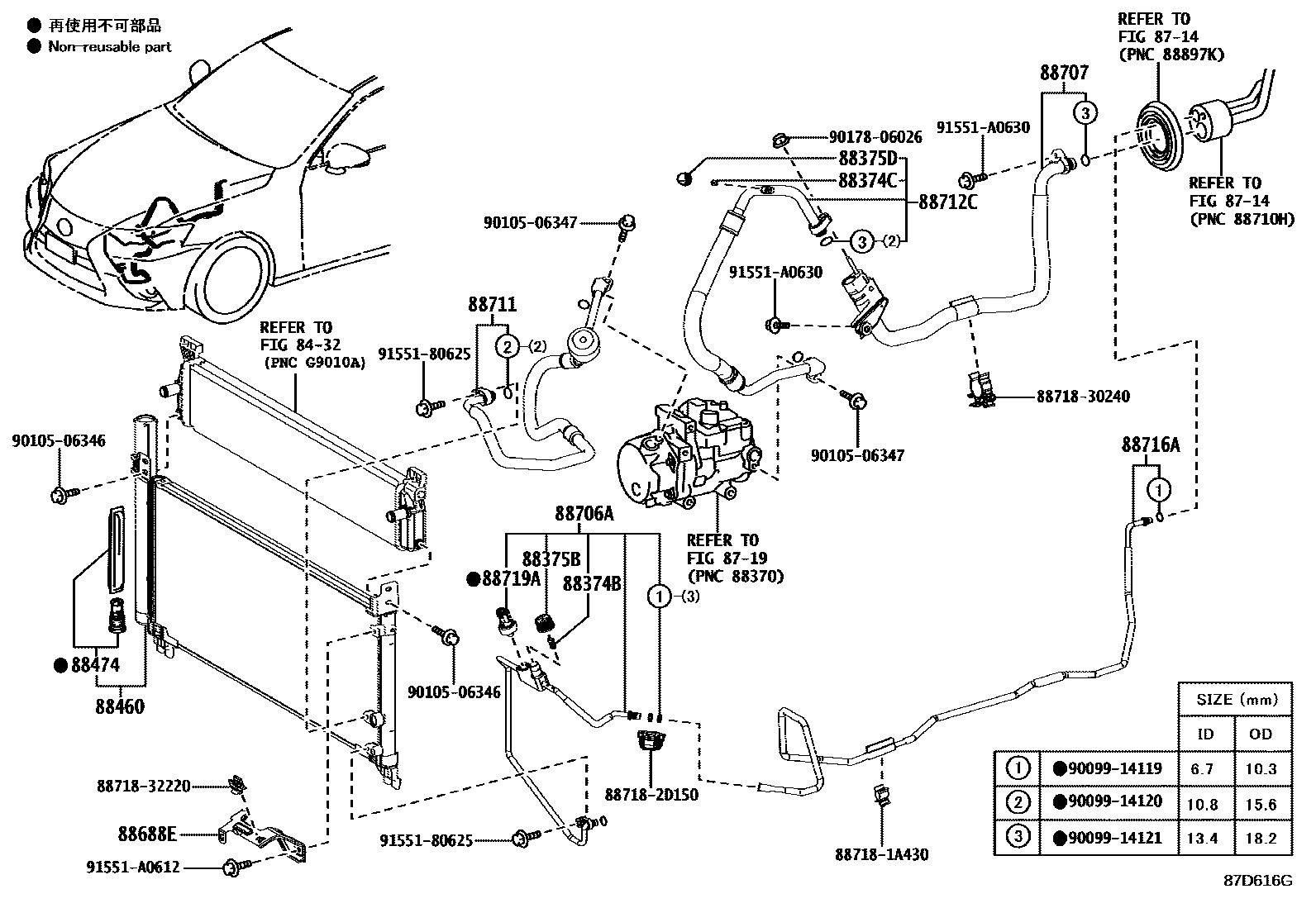

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAVE30,GSE3#201304-201508

88374CVALVE, SERVICE, NO.2

main88374-30010iAVE30,GSE3#201304-201508

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAVE30,GSE3#201304-201508

main88375-30320iASE30,AVE3#,GSE31202009-202110

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAVE30,GSE3#201304-201508

main88375-30310iASE30,AVE3#,GSE31202009-202110

88460CONDENSER ASSY, COOLER

main88460-53080iGSE3#201304-201508

main88460-53100iAVE30201304-201508

main88460-53120iGSE31201610-202009

main88460-53140iASE30201610-202009

main88460-53160iASE30202009-202110

main884A0-53010iGSE31202009-202110

main884A0-53050iUSE30202209

88474DRYER, COOLER

main88474-12010iGSE3#201304-201508

main88474-47020iAVE3#201610-202009

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iAVE3#,GSE31202009-202110

main88688-53090iASE30202111

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53140iGSE3#201304-201508

main88706-53160iAVE30201304-201508

main88706-53170iAVE3#202009-202110

main88706-53180iASE30201610-202009

main88706-53190iASE30202009-202110

main88706-53200iGSE3#201508-201610

main88706-53260iGSE31202009-202110

main88706-53261iGSE31202310

main88706-53270iUSE30202209

88707PIPE SUB-ASSY, SUCTION

main88707-24040iUSE30202209

main88707-30A31iAVE3#202111

main88707-30A41iGSE31202111

main88707-53110iGSE3#201304-201508

main88707-53120iAVE3#201610-202009

main88707-53140iASE30201508-201610

main88707-53150iASE30202009-202110

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24190iUSE30202209-202404

main88711-24191iUSE30202405

main88711-3A740iGSE3#201304-201508

main88711-3A750iAVE3#201508-201610

main88711-3A751iAVE3#202405

main88711-53130iGSE3#201508-201610

main88711-53131iGSE31202405

main88711-53140iASE30202111-202404

main88711-53141iASE30202405

88712CHOSE, SUCTION

main88712-24230iUSE30202209-202403

main88712-24231iUSE30202404

main88712-30360iGSE31201610-201710

main88712-3F070iAVE30201304-201508

main88712-53210iGSE35201304-201508

main88712-53220iAVE3#202009-202110

main88712-53221iAVE3#202405

main88712-53230iASE30201508-201610

main88712-53231iASE30202405

main88712-53240iGSE31201710-202009

main88712-53270iGSE31202111-202404

main88712-53271iGSE31202405

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-24330iUSE30202209

main88716-53080iGSE3#201508-201610

main88716-53090iAVE30201304-201508

main88716-53160iASE30201508-201610

main88716-53180iGSE31201710-202009

main88716-53200iAVE3#202009-202110

main88716-53210iASE30202009-202110

main88716-53220iGSE31202111

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAVE30,GSE3#201304-201508

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9010506347

main90105-06347

9017806026

main90178-06026

9155180625

main91551-80625

91551A0612

main91551-A0612

91551A0630

main91551-A0630

29 parts on this diagram · 4 diagrams in section
