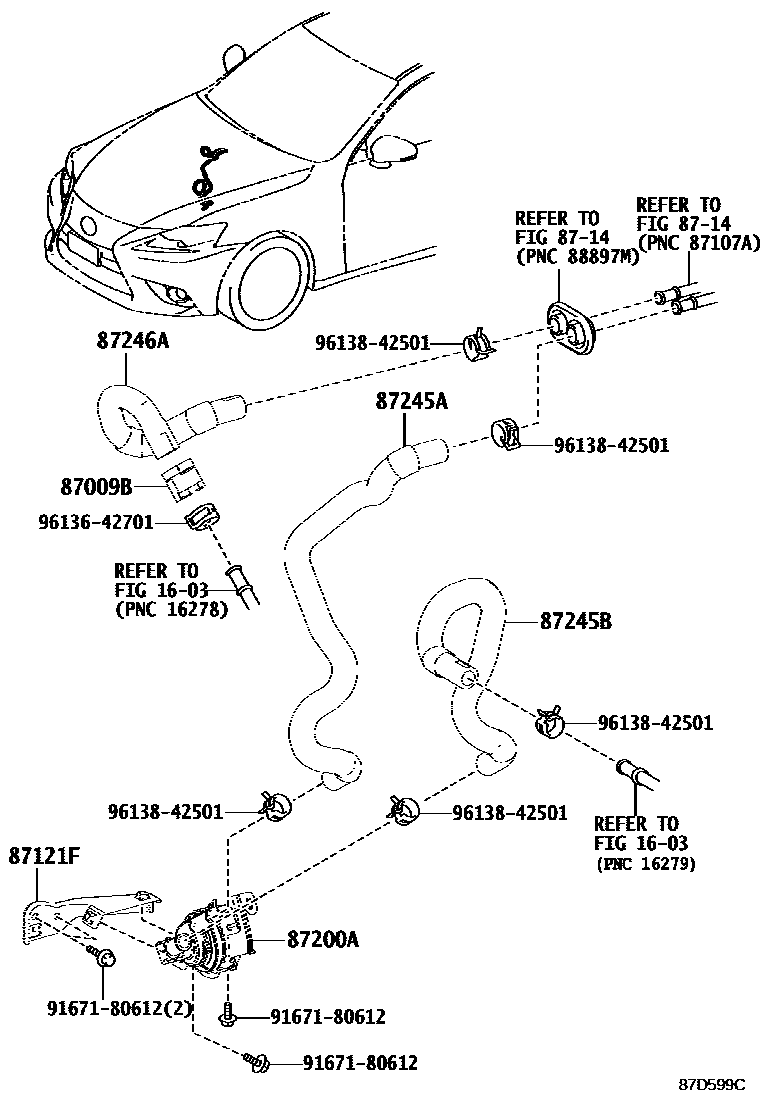

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87009BHOSE SET, WATER

main87009-11010×2iASE30,GSE31,USE30202111

main87009-30040iAVE3#; GSE3#201508-201610

main87009-50020×2iASE30201610-201709

87121FBRACKET, HEATER

main87121-30110iAVE30201304-201508

main87121-53040iAVE3#202009-202110

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200APUMP ASSY, WATER(FOR HEATER)

main87200-30270iAVE30201304-201508

87245HOSE, HEATER WATER, INLET

main87245-24440iUSE30202209

87245AHOSE, HEATER WATER, INLET A

main87245-30C30iAVE3#202111

main87245-30D10iGSE31202009-202110

main87245-53180iGSE3#201508-201610

main87245-53200iASE30201610-202009

87245BHOSE, HEATER WATER, INLET B

main87245-30C80iAVE30201304-201508

87246HOSE, HEATER WATER, OUTLET

main87245-24450iUSE30202209

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A41iGSE3#201508-201610

main87245-30C40iAVE30201304-201508

main87245-30D30iGSE31201710-202009

main87245-53210iASE30201508-201610

9167180612

main91671-80612

9613642701

main96136-42701

9613842501

main96138-42501

13 parts on this diagram · 5 diagrams in section
