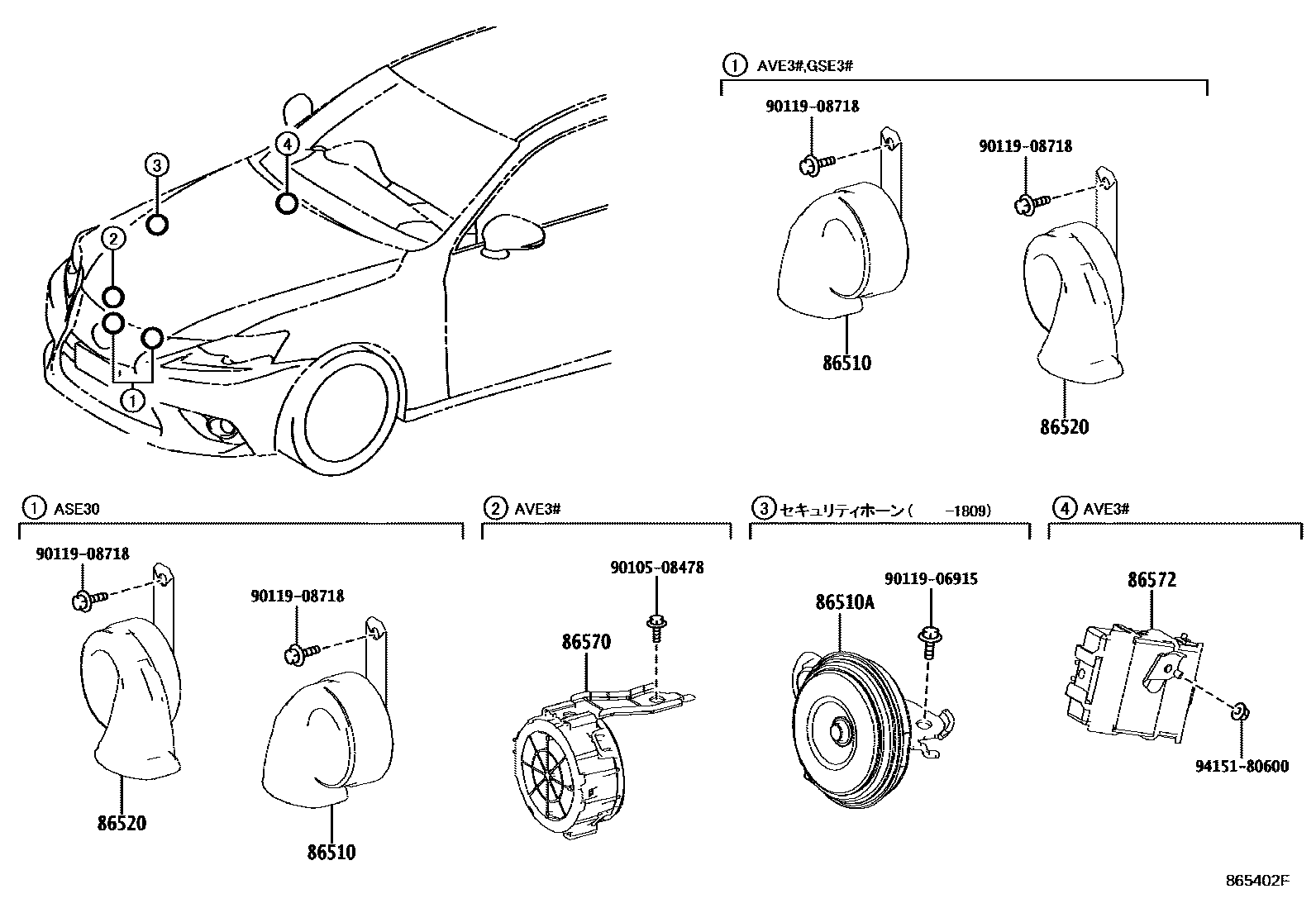

HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-30700iAVE3#,GSE31202009-202110

main86510-53050iASE30202009-202110

86510AHORN ASSY, SECURITY

main86560-53010iAVE30,GSE3#201304-201508

86520HORN ASSY, LOW PITCHED

main86520-30610iAVE3#,GSE31201610-202009

main86520-53010iASE30201508-201610

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30020iAVE30201304-201508

main86570-53020iAVE3#202009-202110

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-53010iAVE30201304-201508

main86572-53030iAVE3#202009-202110

9010508478

main90105-08478

9011906915

main90119-06915

9011908718

main90119-08718

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
