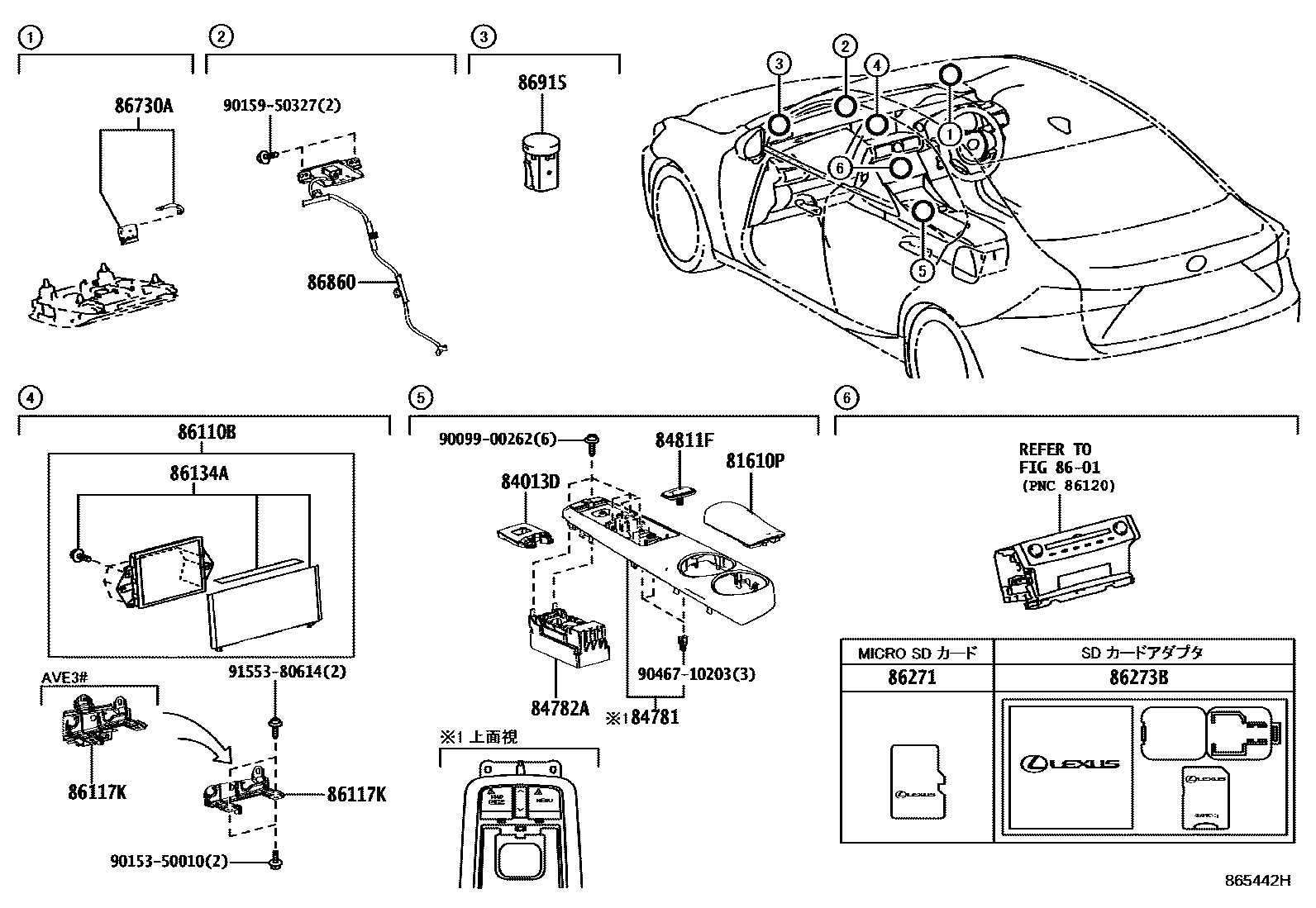

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

81610PCOVER ASSY, RH

main81610-53040-C0iAVE30,GSE3#201304-201508

BLACK,TRIM0#,1#,2#,3#,5#

main81610-53120-C0iASE30,AVE3#,GSE31201610-201809

BLACK/DK.ROSE NO.59,TRIM3#

main81610-53120-C1iASE30,AVE3#,GSE31201610-202009

BLACK/LT.GRAY NO.831,TRIM1#,2#,4#,9#

main81610-53120-C2iASE30,AVE3#,GSE31201809-201909

BLACK/RED NO.55,TRIM36

main81610-53120-C3iASE30,AVE3#,GSE31201909-202009

BLACK/SMOKY BLUE,TRIM8#

84013DPANEL SUB-ASSY, INTEGRATION

main84013-53020iASE30,AVE3#,GSE3#201508-201610

84781SWITCH, REMOTE OPERATION

main84781-53080-C0iASE30,AVE3#,GSE3#201508-201610

BLACK,TRIM0#,1#,2#,3#,5#

main84781-53140iASE30,AVE3#,GSE31201610-201802

main84781-53141iASE30,AVE3#,GSE31201803-201804

main84781-53142iASE30,AVE3#,GSE31201804-202009

84782ABOARD, REMOTE OPERATION

main84782-53010iAVE30,GSE3#201304-201407

main84782-53040iAVE30,GSE3#201407-201508

main84782-53140iASE30,AVE3#,GSE31201610-202009

84811FKNOB, SWITCH

main84811-53010-C0iAVE30,GSE3#201304-201407

BLACK,TRIM0#,1#,2#,3#,5#

main84811-53021-C0iAVE30,GSE3#201407-201504

BLACK,TRIM0#,1#,2#,3#,5#

main84811-53022-C0iAVE30,GSE3#201505-201508

BLACK,TRIM0#,1#,2#,3#,5#

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86110BMULTI-DISPLAY ASSY

main86110-53010iAVE30,GSE3#201304-201508

main86110-53011iASE30,AVE3#,GSE3#201508-201610

main86110-53390iASE30,AVE3#,GSE31202009-202110

main86110-53391iASE30,AVE3#,GSE31,USE30202209

main86110-53430iASE30,AVE3#,GSE31201610-202009

86117KBRACKET, MULTI-DISPLAY, NO.1

main86117-53010iGSE3#201304-201508

main86117-53020iAVE30201304-201508

main86117-53080iASE30,AVE3#,GSE31201610-201705

main86117-53081iASE30,AVE3#,GSE31201706-202009

main86117-53120iASE30,AVE3#,GSE31202009-202110

86134APARTS, MULTI-DISPLAY

main86134-53030iAVE30,GSE3#201304-201508

main86134-53060iASE30,AVE3#,GSE31201610-202009

86271DISC, DISC PLAYER

main86271-30A72iAVE30,GSE3#201504-201508

main86271-30A73iASE30,AVE3#,GSE3#201509-201603

main86271-30A74iASE30,AVE3#,GSE3#201604-201608

main86271-30A75iASE30,AVE3#,GSE3#201609-201610

main86271-48412iASE30,AVE3#,GSE31201809-201904

main86271-48413iASE30,AVE3#,GSE31201905-201908

main86271-48414iASE30,AVE3#,GSE31201909-202003

main86271-48415iASE30,AVE3#,GSE31202004-202008

main86271-53320iAVE30,GSE3#201304-201308

main86271-53321iAVE30,GSE3#201309-201403

main86271-53322iAVE30,GSE3#201404-201407

main86271-53401iASE30,AVE3#,GSE31201610-201703

main86271-53402iASE30,AVE3#,GSE31201704-201708

main86271-53403iASE30,AVE3#,GSE31201709-201803

main86271-53404iASE30,AVE3#,GSE31201804-201809

main86271-78020iAVE30,GSE3#201407-201408

main86271-78021iAVE30,GSE3#201409-201503

86273BADAPTER, DISC PLAYER

main86273-53010iAVE30,GSE3#201304-201508

86730AMICROPHONE ASSY, TELEPHONE

main86730-48110iASE30,AVE3#,GSE31,USE30202111

main86730-53080iASE30,AVE3#,GSE31201610-202009

86860ANTENNA ASSY, NAVIGATION

main86880-53010iAVE30,GSE3#201304-201508

main86880-78010iASE30,AVE3#,GSE31202009-202110

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iAVE30,GSE3#201304-201508

9009900262

main90099-00262

9015350010

main90153-50010

9015950327

main90159-50327

9046710203

main90467-10203

9155380614

main91553-80614

19 parts on this diagram · 3 diagrams in section
