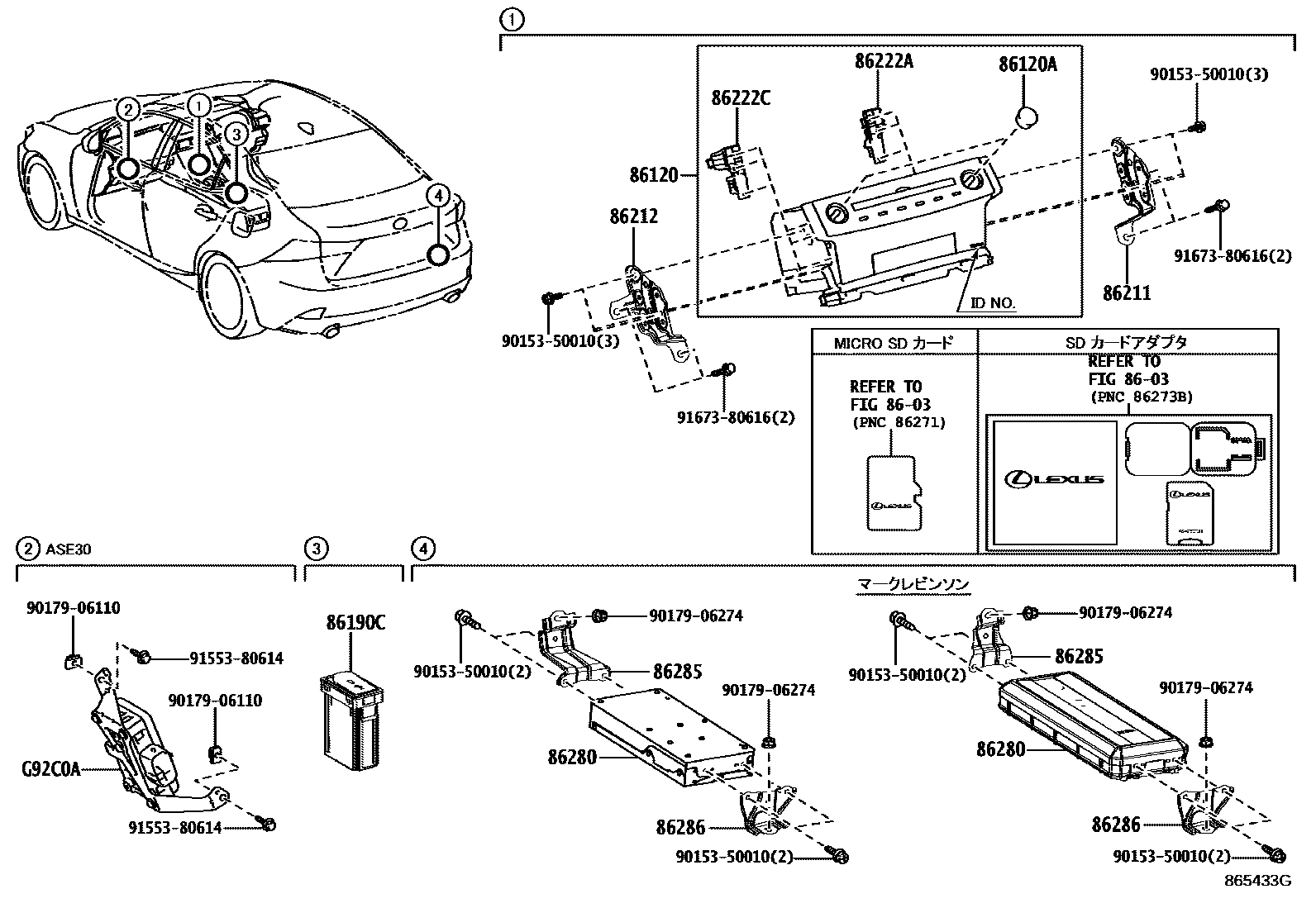

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������ 0004 1������ 0005 1I-POD/VTR����������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-53G80supersedes 86120-53K00iASE30,AVE3#,GSE31,USE30202404

main86120-53K10supersedes 86120-53K00iASE30,AVE3#,GSE31,USE30202111-202404

main86804-53Q90supersedes 86804-53Q80iAVE30,GSE3#201304-201407

main86804-53T10supersedes 86804-53T00iASE30,AVE3#,GSE3#201508-201610

main86804-53V90iASE30,AVE3#,GSE31201610-201706

main86804-53V91supersedes 86804-53V80iASE30,AVE3#,GSE31201706-201809

main86804-53Z50supersedes 86804-53Z40iASE30,AVE3#,GSE31201809-202009

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22097×2supersedes 90010-22110iASE30,AVE3#,GSE31201809-202009

main90010-22137×2supersedes 90010-22136iASE30,AVE3#,GSE31,USE30202111

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iASE30,AVE3#,GSE31202009-202110

main86190-53050iAVE30,GSE3#201304-201309

main86190-53051iASE30,AVE3#,GSE31201610-201811

main86190-78010iASE30,AVE3#,GSE31201811-202009

86211BRACKET, RADIO, NO.1

main86211-24100iASE30,AVE3#,GSE31202009-202110

main86211-53050iASE30,AVE3#,GSE31201610-202009

86212BRACKET, RADIO, NO.2

main86212-24100iASE30,AVE3#,GSE31202009-202110

main86212-53050iASE30,AVE3#,GSE31201610-202009

86222ACLIP, RADIO RECEIVER BRACKET NO.1

main86222-53010iAVE30,GSE3#201304-201508

86222CCLIP, RADIO RECEIVER BRACKET NO.2

main86222-53020iAVE30,GSE3#201304-201508

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-53190iAVE30,GSE3#201304-201508

main86280-0W690iAVE30,GSE3#201304-201407

main86280-0W691iAVE30,GSE3#201407-201508

main86280-0WE50supersedes 86280-53231iASE30,AVE3#,GSE31201610-201710

main86280-0WE51supersedes 86280-53231iASE30,AVE3#,GSE31201711-201909

main86280-0WJ20supersedes 86280-53260iASE30,AVE3#,GSE31,USE30202111

main86280-53270supersedes 86280-53231iASE30,AVE3#,GSE31201910-202009

86285BRACKET, AMPLIFIER, NO.1

main86285-24070supersedes 86285-24050iASE30,AVE3#,GSE31202009-202110

main86285-53090supersedes 86285-53080iAVE30,GSE3#201304-201508

86286BRACKET, AMPLIFIER, NO.2

main86286-53120iAVE30,GSE3#201304-201508

main86286-53121iASE30,AVE3#,GSE31201712-202009

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C053010iASE30201508-201610

9015350010

main90153-50010

9017906110

main90179-06110

9017906274

main90179-06274

9155380614

main91553-80614

9167380616

main91673-80616

17 parts on this diagram · 5 diagrams in section
