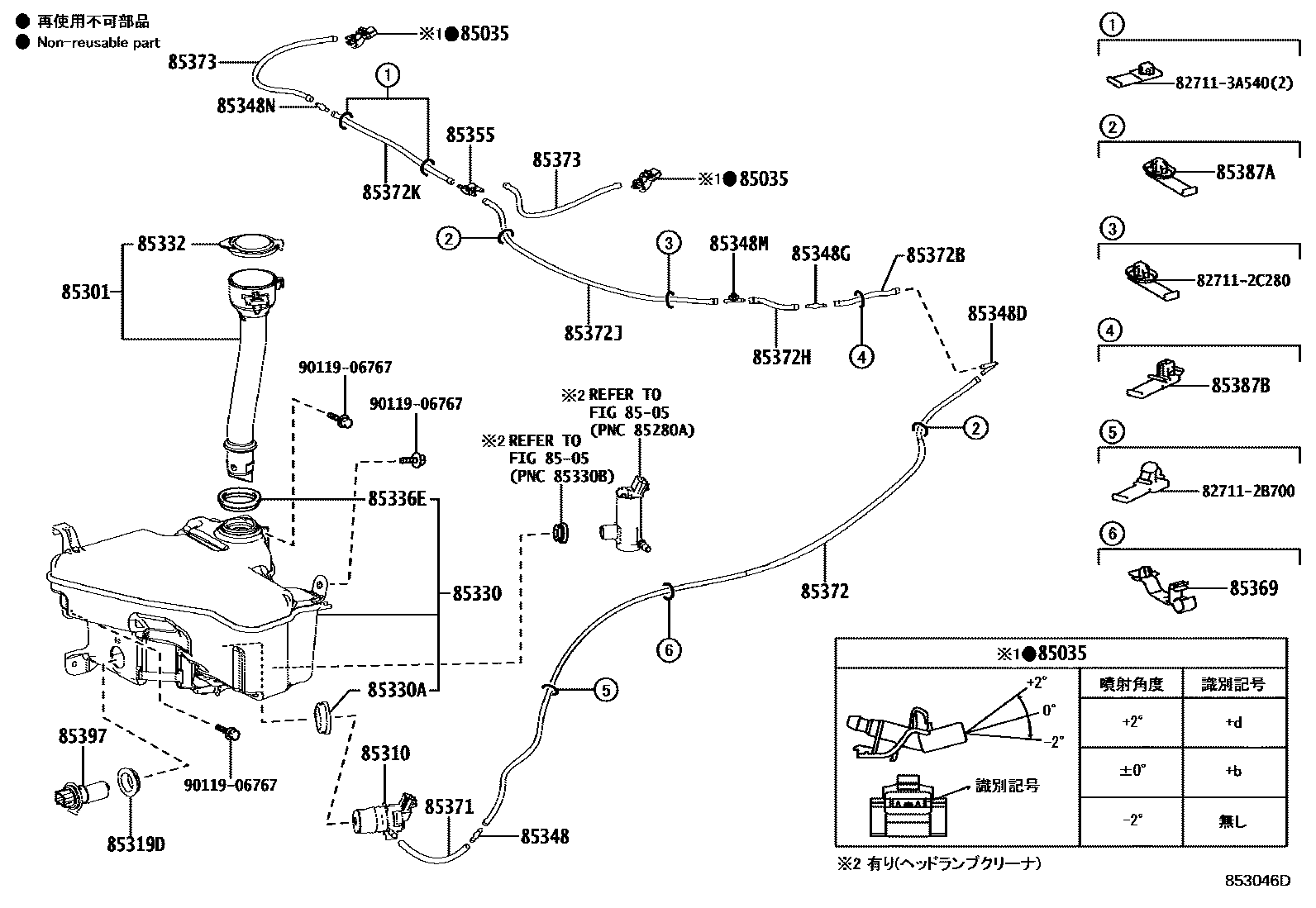

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201304-201508

main85381-30230×2i201304-201508

main85381-30240×2i201610-202009

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-24050i202209

main85301-53010i201610-202006

main85301-53011i202111

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201304-201508

main85330-60190i201610-202009

85319DPACKING, FRONT WASHER

main85319-33230i201304-201508

85330JAR ASSY, WINDSHIELD WASHER

main85315-53130i201304-201508

main85355-24061supersedes 85315-24121i202209

main85355-53070i201508-201610

main85355-53090supersedes 85315-53210i201610-202007

main85355-53091supersedes 85315-53210i202007-202009

main85355-53100supersedes 85315-53210i202009-202110

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i202111

85332CAP, WINDSHIELD WASHER JAR

main85316-24121i202209

main85316-53200i202009-202110

main85386-53010i201610-202007

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201610-202009

main85336-42320i202209

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201304-201508

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-12360i201304-201508

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201304-201508

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-17050i201304-201508

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122i201304-201508

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201304-201508

85369CLAMP

main90959-01568i201304-201508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201304-201508

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202009-202110

main90099-62111i201610-202009

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201304-201508

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201508-201610

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201304-201508

main90099-33299i202111

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i202009-202110

main90099-33299i201304-201406

main90099-62133i201610-202009

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201304-201406

main90099-62087×2i201406-201508

85387ACLAMP, WASHER, NO.2

main82711-52090×2i201304-201508

85387BCLAMP, WASHER, NO.3

main82711-3A640i201304-201508

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201304-201508

main85397-52100i202209

827112B700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B700

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9011906767

main90119-06767
