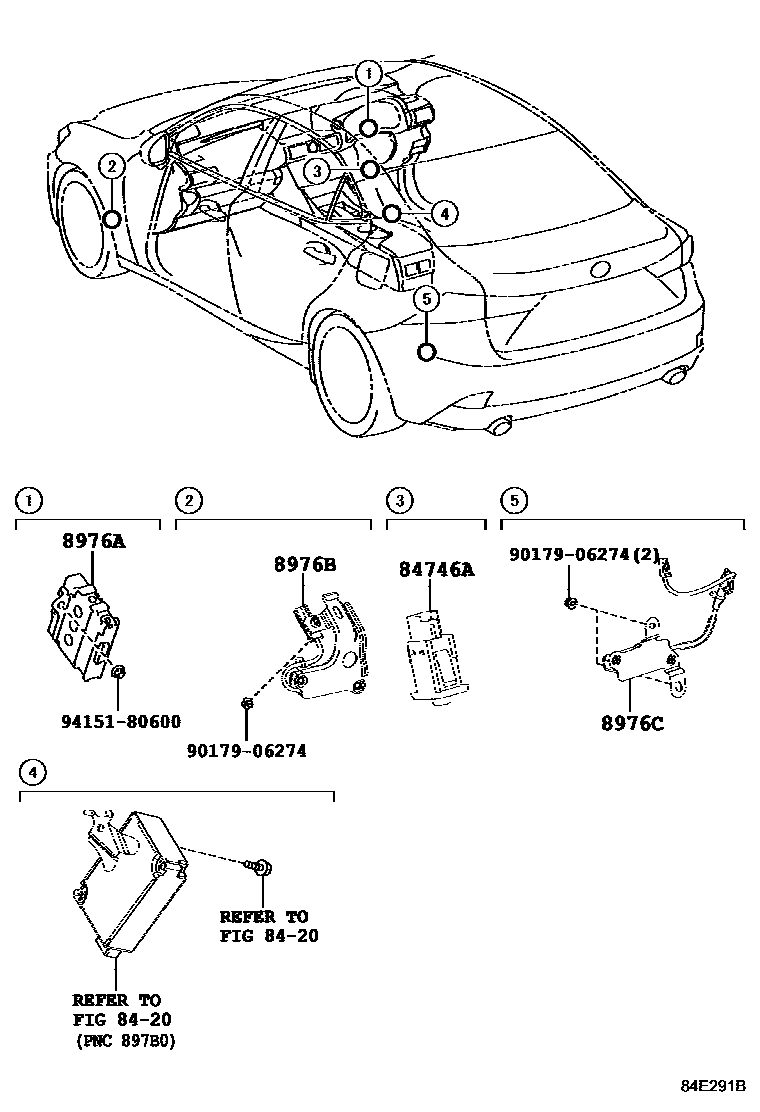

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010iAVE30,GSE3#201304-201508

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-24010iAVE30,GSE3#201407-201505

main8976A-24011iASE30,AVE3#,GSE31201610-201902

main8976A-24012iASE30,AVE3#,GSE31201903-202009

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-53010iAVE30,GSE3#201407-201409

main8976B-53011iASE30,AVE3#,GSE31201610-202009

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24010iAVE30,GSE3#201407-201409

main8976C-24011iASE30,AVE3#,GSE31201610-202009

9017906274

main90179-06274

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
