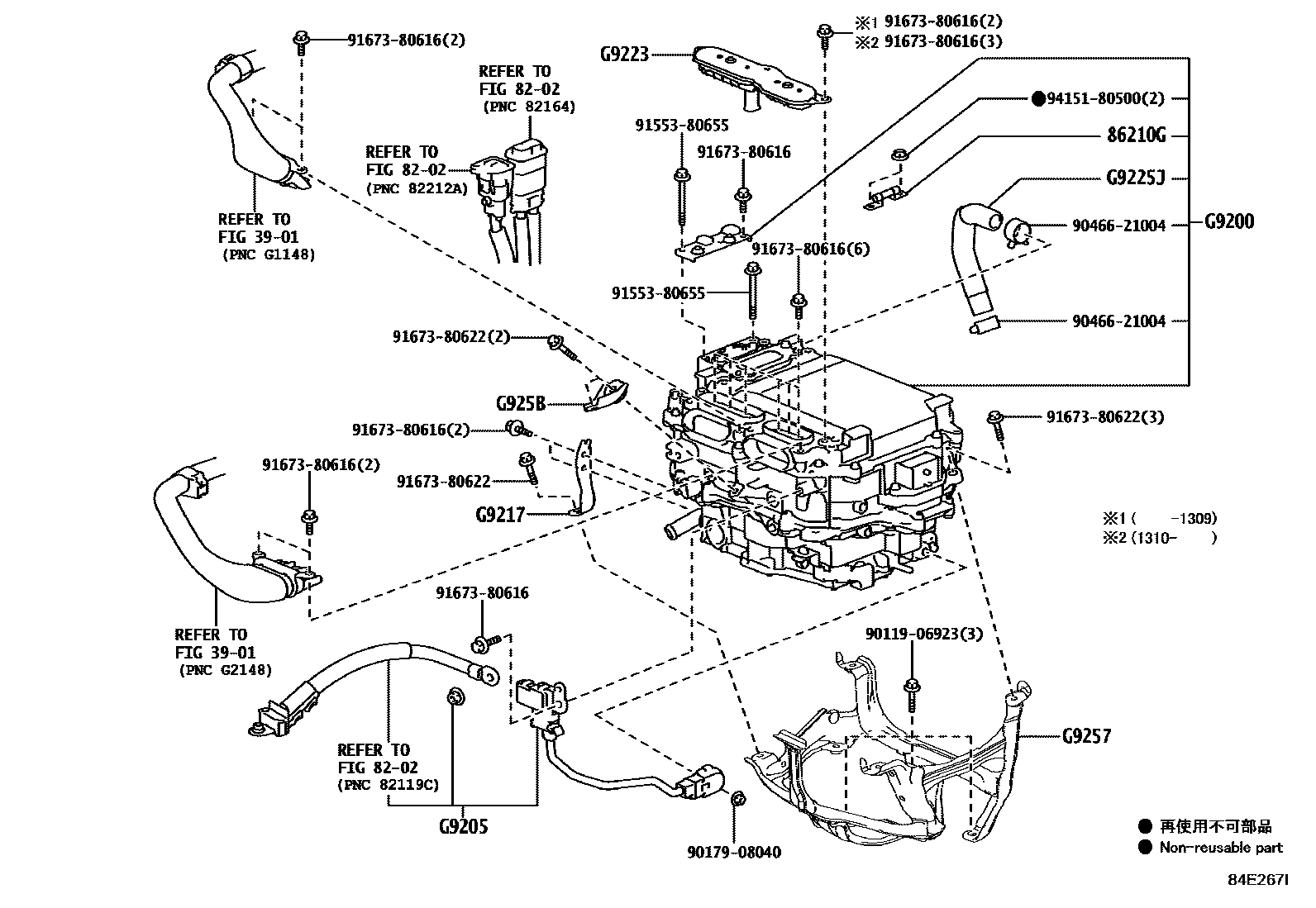

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86210GFUSE, HIGH VOLTAGE

main90982-11050iAVE3#201508-201610

G9200INVERTER ASSY, W/CONVERTER

mainG92A030050iAVE30201304-201308

mainG92A030051iAVE30201309-201402

mainG92A030052iAVE3#201508-201610

G9205PLATE SUB-ASSY, INVERTER BUS-BAR

mainG920530020iAVE3#202009-202110

mainG920553030iAVE30201304-201508

G9217BRACKET, INVERTER, NO.4

mainG921730030iAVE3#202111

mainG921753010iAVE3#201610-202009

G9223COVER, INVERTER TERMINAL

mainG922330030iAVE30201304-201309

mainG922330031iAVE30201310-201508

G9225JHOSE, INVERTER COOLING, NO.1

mainG922530210iAVE3#202111

G9257BRACKET, INVERTER, NO.5

mainG925730050iAVE3#202009-202110

mainG925753010iAVE30201304-201508

G925BBRACKET, INVERTER, NO.6

mainG925B30030iAVE3#202009-202110

mainG925B53010iAVE3#201610-202009

9011906923

main90119-06923

9017908040

main90179-08040

9046621004

main90466-21004

9155380655

main91553-80655

9167380616

main91673-80616

9167380622

main91673-80622

9415180500

main94151-80500

17 parts on this diagram · 2 diagrams in section
