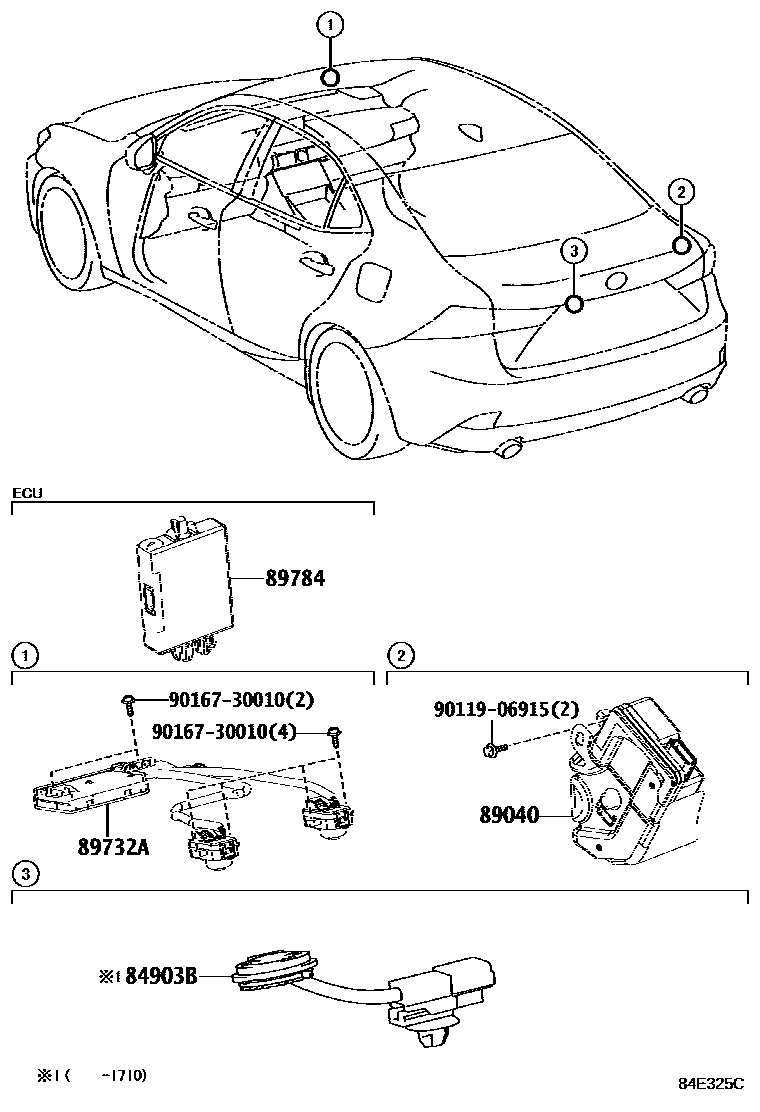

ANTI-THEFT DEVICE

0001 1 0002 1

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-30090iASE30,AVE3#,GSE3#201508-201610

89040SIREN ASSY, THEFT WARNING

main89040-53050iASE30,AVE3#,GSE31201809-202009

main89040-53080iASE30,AVE3#,GSE31,USE30202111

main89040-53070iAVE30,GSE3#201304-201508

89732ASENSOR, THEFT WARNING ULTRASONIC

main89732-53230iASE30,AVE3#,GSE3#201508-201610

main89732-53250iASE30,AVE3#,GSE31201809-202009

main89732-53260iASE30,AVE3#,GSE31202009-202110

89784COMPUTER, IMMOBILIZER CODE

main89784-33020iASE30,AVE3#,GSE31,USE30202111

main89784-53040iASE30,AVE3#,GSE31201610-202009

9011906915

main90119-06915

9016730010

main90167-30010

6 parts on this diagram · 2 diagrams in section
