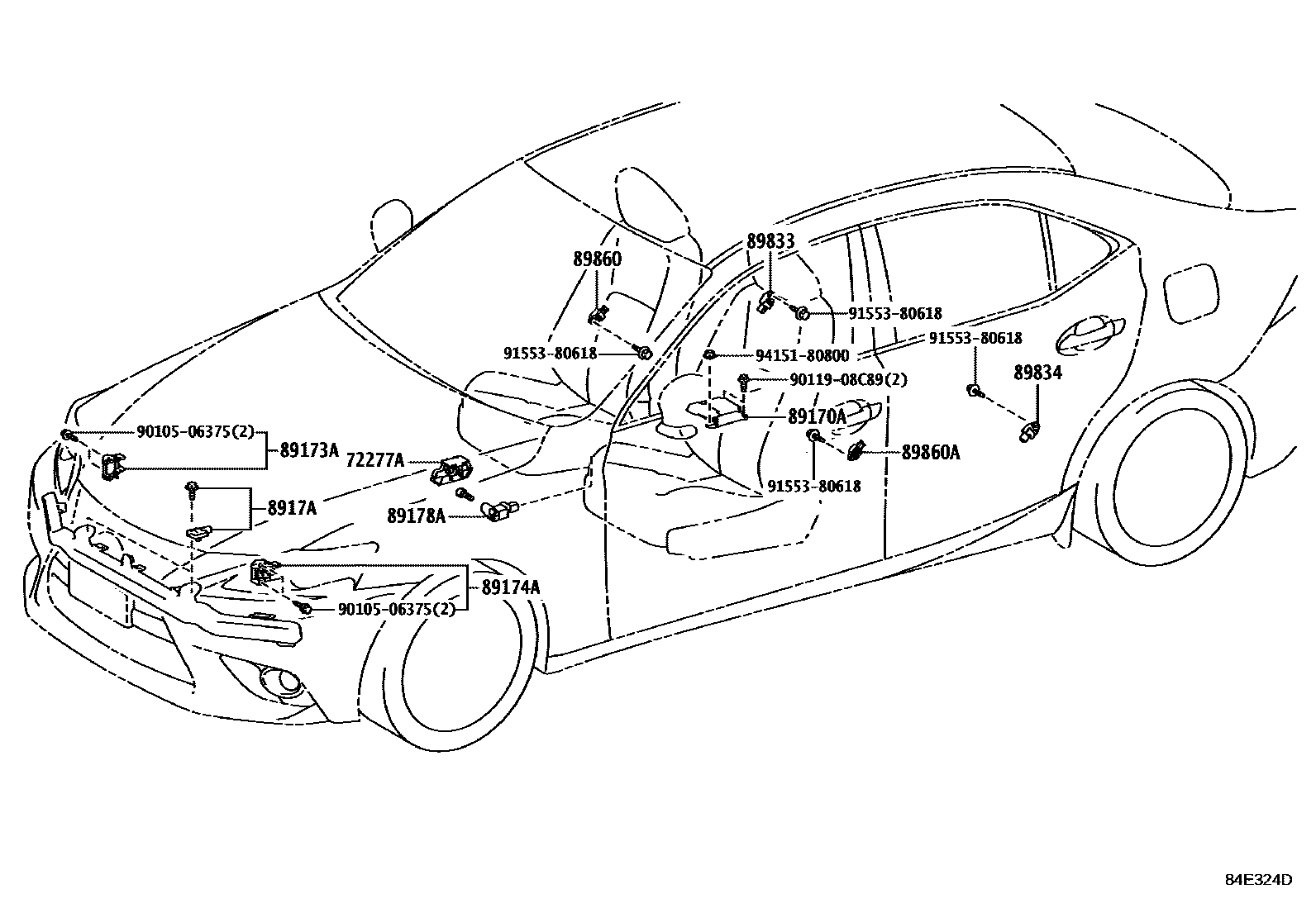

AIR BAG

0001 1 0002 1

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47010iASE30,AVE3#,GSE31,USE30202111

89170ACOMPUTER ASSY, AIRBAG

main89170-53A00iUSE30202209

main89170-53320supersedes 89170-53300iASE30,AVE3#,GSE3#201508-201610

main89170-53390iAVE30,GSE30,31201304-201508

main89170-53400supersedes 89170-53300iASE30,AVE3#,GSE3#201508-201610

main89170-53650supersedes 89170-53640iASE30,AVE3#,GSE31201610-202009

main89170-53830supersedes 89170-53820iASE30,AVE3#202111

main89170-53860supersedes 89170-53820iGSE31202111

89173ASENSOR, AIRBAG, FRONT RH

main89173-19505iASE30,AVE3#,GSE31202009-202110

main89173-19525iASE30,AVE3#,GSE31,USE30202207

main89173-39495iASE30,AVE3#,GSE31201610-202009

89174ASENSOR, AIRBAG, FRONT LH

main89173-19505iASE30,AVE3#,GSE31202111-202207

main89173-19525iASE30,AVE3#,GSE31,USE30202207

main89173-39495iAVE30,GSE3#201304-201508

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iAVE30,GSE3#201304-201508

8917ASENSOR, PEDESTRIAN PROTECTION

main8917A-30040×2iAVE30,GSE3#201304-201401

main8917A-30060×2iAVE30,GSE3#201402-201508

89833SENSOR, AIRBAG, REAR RH

main89831-28060iASE30,AVE3#,GSE31,USE30202111

main89831-53020iAVE30,GSE3#201304-201308

main89831-53050iASE30,AVE3#,GSE31201610-202009

89834SENSOR, AIRBAG, REAR LH

main89831-28060iASE30,AVE3#,GSE31202009-202110

main89831-53020iAVE30,GSE3#201304-201308

main89831-53050iAVE30,GSE3#201309-201508

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iASE30,AVE3#,GSE31201610-202009

main89831-28060iASE30,AVE3#,GSE31202009-202110

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iAVE30,GSE3#201304-201508

main89831-28060iASE30,AVE3#,GSE31202009-202110

9010506375

main90105-06375

9011908C89

main90119-08C89

9155380618

main91553-80618

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
