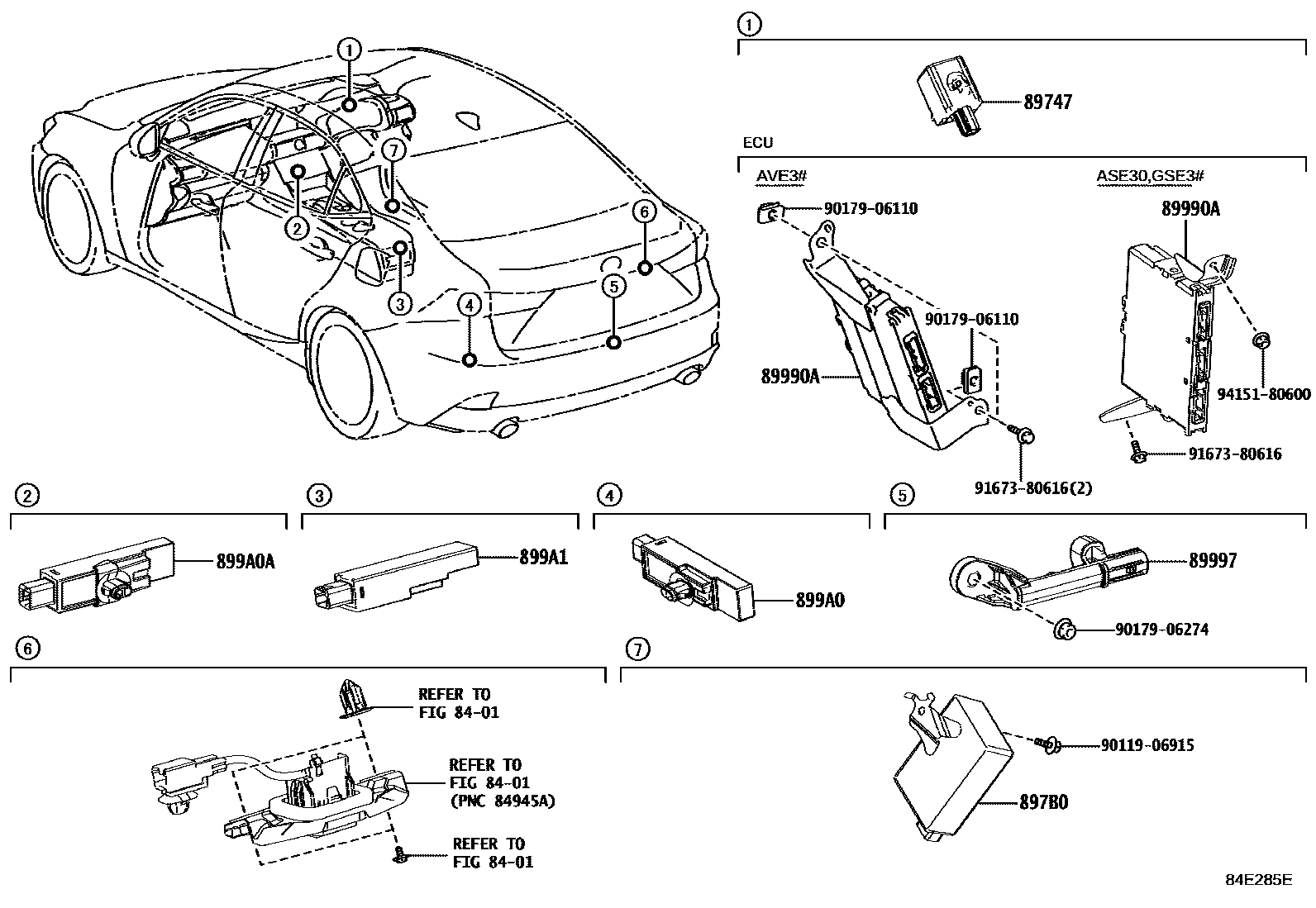

WIRELESS DOOR LOCK

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAVE30,GSE3#201304-201508

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-53030iAVE30,GSE3#201304-201310

main897B0-53031iAVE30,GSE3#201311-201407

main897B0-53040iASE30,AVE3#,GSE31201610-202009

89990ACOMPUTER ASSY, SMART KEY

main89990-53120iAVE3#201610-201808

main89990-53121iAVE3#201809-202009

main89990-53280iGSE3#201304-201508

main89990-53281iASE30,GSE31201610-201707

main89990-53282iASE30,GSE31201708-201808

main89990-53283iASE30,GSE31201809-202009

main89990-53320iAVE30201304-201508

main89990-53520iASE30,GSE31,USE30202111

main89990-53530iAVE3#202009-202110

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAVE30,GSE3#201304-201508

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iAVE30,GSE3#201304-201508

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60010iAVE30,GSE3#201304-201508

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-60010iAVE30,GSE3#201304-201508

9011906915

main90119-06915

9017906110

main90179-06110

9017906274

main90179-06274

9167380616

main91673-80616

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
