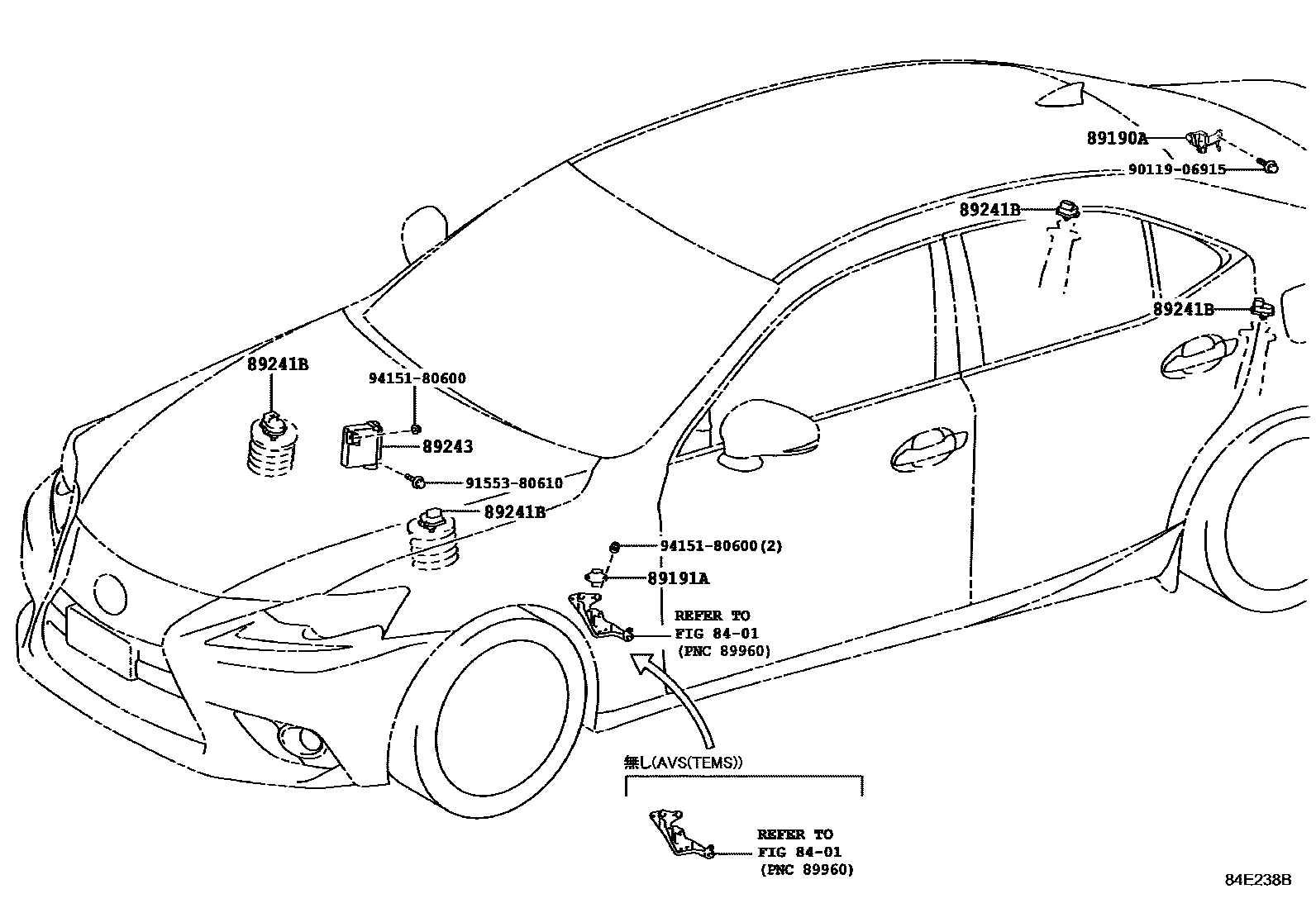

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1 0003 1 0004 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190ASENSOR ASSY, ACCELERATION

main89190-53010iASE30; GSE31202009-202110

main89190-53020iAVE3#201508-201610

89191ASENSOR, ACCELERATION

main89191-22020iASE30,AVE3#; GSE31202009-202110

89241BACTUATOR, ABSORBER CONTROL

main89241-30041×4iASE30,AVE3#; GSE31202009-202110

89243COMPUTER, ABSORBER CONTROL

main89243-53013iASE30; GSE31202009-202110

main89243-53040iGSE31202111-202310

main89243-53041iGSE31202310-202411

main89243-53042iGSE31202411

main89243-53061iUSE30202209-202310

main89243-53062iUSE30202310-202411

main89243-53063iUSE30202411

main89243-53010iGSE3#201304-201508

main89243-53011iASE30,GSE3#201508-201610

main89243-53012iASE30,GSE31201610-202009

main89243-53030iAVE30201304-201508

main89243-53031iAVE3#201508-201610

main89243-53032iAVE3#201610-202009

main89243-53033iAVE3#202009-202110

main89243-53050iAVE3#202111-202310

main89243-53051iAVE3#202310-202411

main89243-53052iAVE3#202411

main89243-53070iASE30202111-202310

main89243-53071iASE30202310-202411

main89243-53072iASE30202411

9011906915

main90119-06915

9155380610

main91553-80610

9415180600

main94151-80600

8 parts on this diagram · 4 diagrams in section
