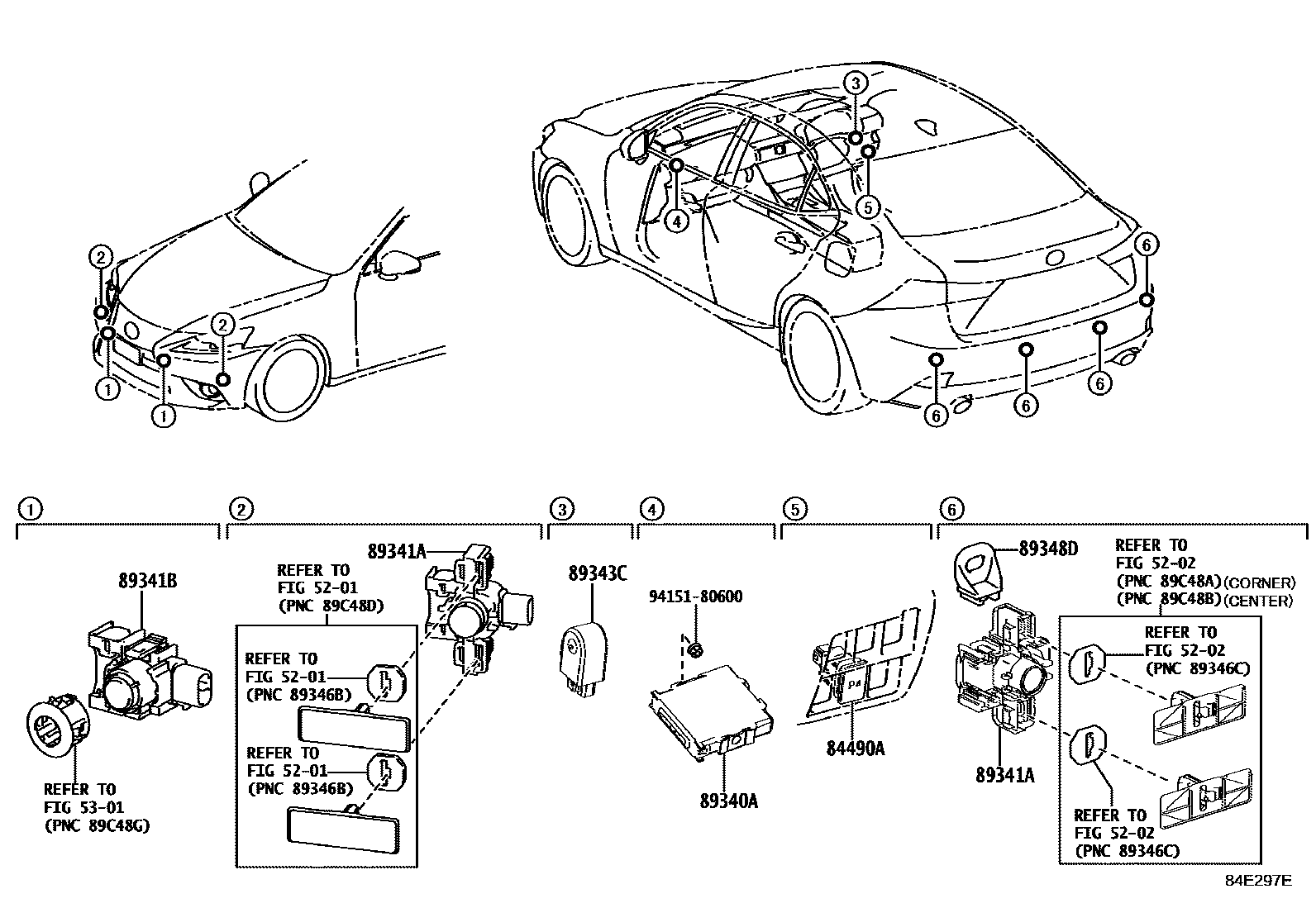

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5301RADIATOR GRILLE

→ Go to FIG 53-01

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-53010iAVE30,GSE3#201304-201412

main84490-53011iAVE30,GSE3#201501-201508

main84490-53012iASE30,AVE3#,GSE31201907-202009

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-53150iASE30,AVE3#,GSE31202009-202110

main89340-53260iUSE30202209

main89340-53030iAVE30,GSE3#201304-201508

main89340-53070iASE30,AVE3#,GSE31201610-202009

main89340-53090iASE30,AVE3#,GSE31201610-202009

89341ASENSOR, ULTRASONIC, NO.1

main89341-53010-A0×6iAVE30,GSE3#201304-201508

main89341-53010-A1×6iASE30,AVE3#,GSE3#201508-201610

main89341-53010-A2×6iASE30,AVE3#,GSE3#201508-201610

main89341-53010-B0×6iAVE30,GSE3#201304-201508

main89341-53010-B1×6iAVE30,GSE3#201304-201508

main89341-53010-B2×6iAVE30,GSE3#201304-201508

main89341-53010-C0×6iASE30,AVE3#,GSE3#201508-201610

main89341-53010-C1×6iAVE30,GSE3#201304-201508

main89341-53010-D0×6iASE30,AVE3#,GSE3#201508-201610

main89341-53010-D3×6iASE30,AVE3#,GSE3#201508-201610

main89341-53010-J0×6iAVE30,GSE3#201304-201508

main89341-53010-J1×6iAVE30,GSE3#201304-201508

main89341-53010-J3×6iASE30,AVE3#,GSE3#201508-201610

main89341-78010-A0×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-A1×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-B0×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-B1×6iASE30,AVE3#,GSE31201610-201809

main89341-78010-B2×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-B3×6iASE30,AVE3#,GSE31201809-202009

main89341-78010-C1×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-C3×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-D0×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-D1×6iASE30,AVE3#,GSE31201809-202009

main89341-78010-D4×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-J2×6iASE30,AVE3#,GSE31201610-201909

main89341-78010-J3×6iASE30,AVE3#,GSE31201610-202009

main89341-78010-P0×6iASE30,AVE3#,GSE31201909-202009

89341BSENSOR, ULTRASONIC, NO.2

main89341-53030×2iAVE30,GSE3#201304-201508

main89341-78020×2iASE30,AVE3#,GSE31201610-202009

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iASE30,AVE3#,GSE31202009-202110

main89343-72010iAVE30,GSE3#201304-201508

89348DCLIP, ULTRASONIC SENSOR

main89348-35030×4iAVE30,GSE3#201304-201508

9415180600

main94151-80600

10 parts on this diagram · 3 diagrams in section
